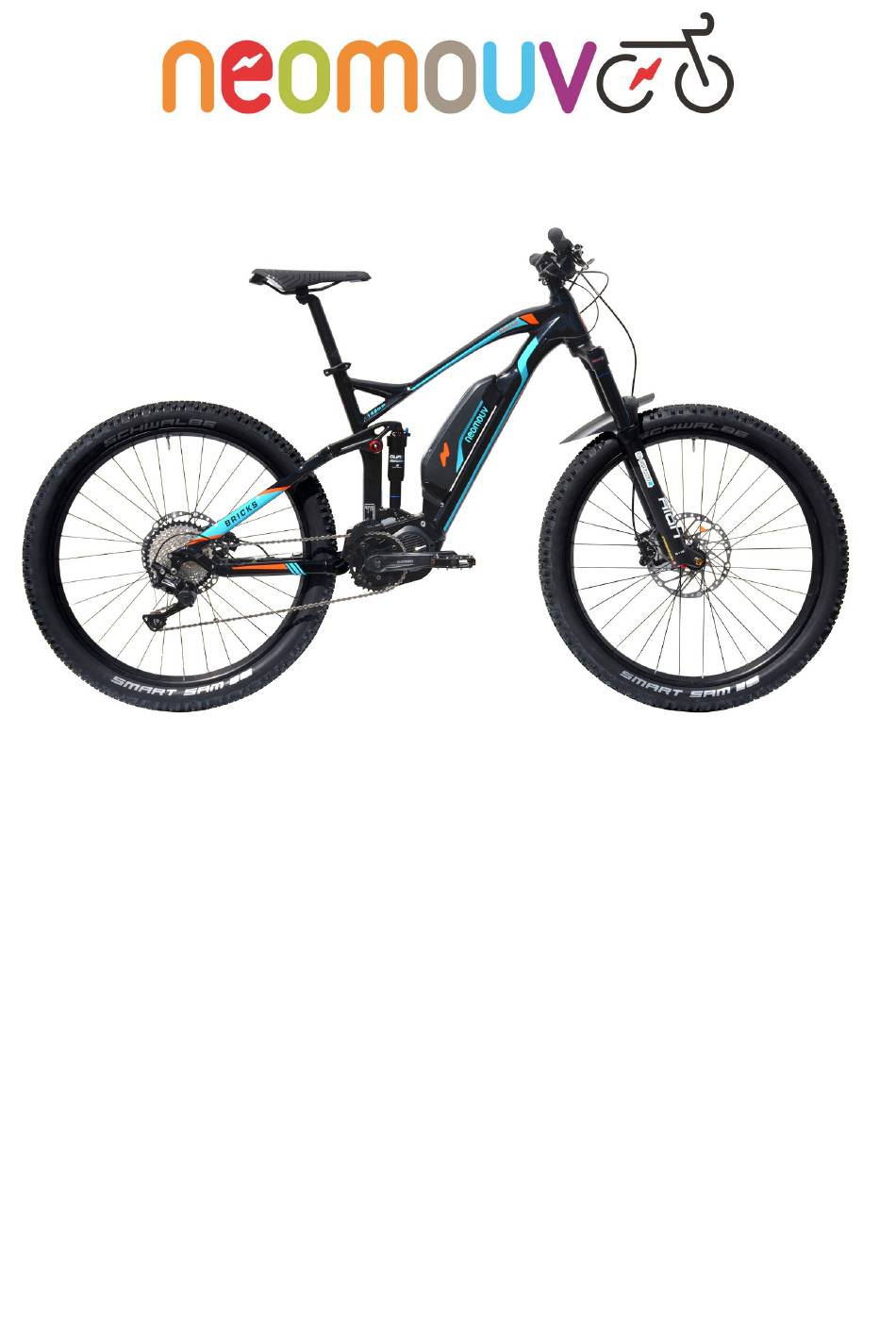

- Page 1 USER GUIDE BRICKS THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS Model conforms to safety requirements...
-
Page 2: Table Of Contents
Recommendations / precautions to take with your battery: ............16 ADVICE FOR INCREASING BATTERY LIFE PER CHARGE: ........... 17 UPKEEP AND MAINTENANCE: ......................18 Upkeep: ..............................18 Lubrication: ............................18 Maintenance: ............................18 SAFETY – RECOMMENDATIONS: ....................19 TECHNICAL DATA ..........................20 BRICKS Manual... -
Page 3: Presentation
PRESENTATION Thank you for choosing a NEOMOUV Electric-Assisted Bicycle (E-Bike) Display E-Bike Presentation: Battery Electric motor Notes: The symbol indicates important advice or essential safety measures. Follow the various • instructions. • Some adjustment and assembly/disassembly operations require special tools and expertise; perform these only if you have the skills to do so, otherwise consult your authorised dealer or a specialist. -
Page 4: Adjustments/Assembly
Without applying too much pressure, place a pole or stick horizontally at groin height and then measure the height from the stick to the ground. This will give you the IL (inside leg) measurement. BRICKS Manual... -
Page 5: Adjusting The Handlebars And The Stem
4 Handlebar adjustment screws (4 mm key) 2 Stem clamping screws (5 mm key) After making your adjustments, tighten the screws using a max. tightening torque of 6 Nm for the handlebars and 8 Nm for the stem BRICKS Manual... -
Page 6: Hydraulic Brake Adjustment
Hydraulic brake adjustment: The Bricks is equipped with front and rear hydraulic disc brakes. The maintenance of this system must be carried out by a specialist. However, here are a few recommendations: Periodically check the condition of the lining on the brake pads. It is important to avoid leaving this until the last minute as if the lining is faulty, the disc rubs against the metal of the pads which damages them. -
Page 7: Adjusting The Suspension
“SAG” correctly, attach a cable clamp onto the stanchion. You can lean against a wall in order to sit on the bike without moving and take the measurement. Front suspension : Rear suspension: * (negative spring) corresponds to the compression caused solely by the bodyweight and position of the cyclist. BRICKS Manual... -
Page 8: Adjusting Rebound Damping
SETTING THAT IS TOO FAST MAY CAUSE THE FRONT WHEEL TO BOUNCE UNCONTROLLABLY AND RESULT IN A LOSS OF TRACTION 2.5.3 Quick-release system: Turn the quick-release lever 90° in a clockwise direction to lock the fork / shock absorber. -Turn the lever in an anticlockwise direction to free the fork. FRONT REAR BRICKS Manual... -
Page 9: Mounting And Dismounting The Wheels
NEVER OPERATE THE BRAKE LEVERS WHEN A WHEEL IS OFF THE BIKE HE WHEEL WILL BE VERY DIFFICULT TO REMOUNT 2.6.1 Front wheel: Dismounting the front wheel: DO NOT LOOSEN THE NUT COMPLETELY AS THIS MAY SEPARATE THE PARTS Mounting the front wheel: BRICKS Manual... -
Page 10: Rear Wheel
The pedals can be installed and removed using a 15-mm open-ended spanner. THEY ARE NOT IDENTICAL. There is a mark on the axle that differentiates them: R = Right (tighten in a clockwise direction) L = Left (tighten in an anti-clockwise direction) BRICKS Manual... -
Page 11: Lights
A battery-operated rear red light (2 x LR03 batteries) which is activated by a switch on the bottom of the light. Always keep your lights clean and in good condition. Lights are obligatory at night. BRICKS Manual... -
Page 12: Using The E-Bike
You can find all inform ation relating to the electronic gearshift in the enclosed Shim ano STEPS user m anual. Display and controls: You can find all inform ation relating to the display and controls in the enclosed Shim ano STEPS user m anual. BRICKS Manual... -
Page 13: Electrical Assistance
Motor: SHIMANO Steps E8000 – 250 watts – 70Nm Battery: SHIMANO Lithium ion cell 46 V – 504 Wh Battery life per charge: up to 80 km (for a user weighing 75 kg at a speed of 18 km/h on a journey in Eco mode). BRICKS Manual... -
Page 14: Starting Up The Battery
Although it is designed to resist water, we do not recommend cleaning it with a high-pressure jet. For further details, please consult the enclosed Shim ano STEPS m otor m anual. BRICKS Manual... -
Page 15: Charging The Battery
ONTACT YOUR DEALER SHOULD ANY FAULTS OCCUR WITH YOUR CHARGER F OR YOUR SAFETY ALSO LOOK AT THE PICTOGRAMS ON THE CHARGER Battery For all inform ation relating to the battery, please consult the enclosed user m anual for the Shim ano STEPS battery. BRICKS Manual... -
Page 16: Recommendations / Precautions To Take With Your Battery
YOU CAN CONTACT YOUR LOCAL COUNCIL FOR FURTHER INFORMATION LECTRICAL AND ELECTRONIC PRODUCTS CONTAIN TOXIC SUBSTANCES THAT ARE HARMFUL TO THE ENVIRONMENT AND HUMAN HEALTH AND MUST THEREFORE BE RECYCLED Your battery is recyclable after use. Return it to your dealer. BRICKS Manual... -
Page 17: Advice For Increasing Battery Life Per Charge
ADVICE FOR INCREASING BATTERY LIFE PER CHARGE: Your BRICKS bicycle is equipped with a 504Wh battery that has a battery life per charge of up to 80 km. In order to conserve your battery's energy and thus increase the range of your bike, we would like to offer you a few tips. -
Page 18: Upkeep And Maintenance
O NOT USE LUBRICANTS ON THE SURFACE OF THE WHEEL RIMS OR ON THE TYRES OR ON THE FRONT AND REAR BRAKE SHOES C ., LED, HECK THE CONDITION AND CORRECT FUNCTIONING OF THE SIGNALLING DEVICES CLEAN THEM IF NECESSARY WITH A DRY CLOTH BRICKS Manual... -
Page 19: Safety - Recommendations
Stay alert; do not spend too much time looking at the bike’s display while you are driving. For your safety, it is recommended to routinely have the bike lights on. Wearing a high-visibility vest is mandatory when riding in rural areas, in traffic at night, or on days when the visibility is poor. BRICKS Manual... -
Page 20: Technical Data
Lithium Ion Voltage (v) 36 V Motor: Shimano E8000 – 70Nm Nominal yield (w) 250 watts Charger voltage 42 V Tyre dimensions 27.5’’ x 2.60 Tyre pressure between 1.5 and 3 bars SHIMANO Derailleur Deore 10V 11-13-15-18-21-24-28-32-37-42T BRICKS Manual... - Page 21 ZI Ouest - Allée des quatre Journaux 72200 LA FLECHE contact@neomouv.fr SAS with capital of 1 200 000 € - RCS Le Mans 518 158 183 SIRET 518 158 183 00013 – APE 4649Z – TVA INT FR 91 518 158 BRICKS Manual...
