Groen HYPERSTEAM HY-3E Operator's Manual

OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax 888-864-7636
unifiedbrands.net
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS
CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
WARNING Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death. Read the
installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the
consignee to inspect the container upon receipt of same and to determine
the possibility of any damage, including concealed damage. Unified
Brands suggests that if you are suspicious of damage to make a notation
on the delivery receipt. It will be the responsibility of the consignee to file
a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
EQUIPMENT DESCRIPTION

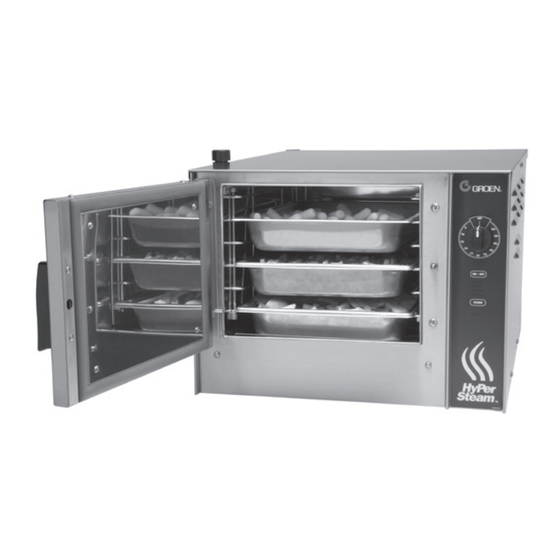

Your Groen HY-3E or HY-5E HyPerSteam Convection Steamer is designed to give
years of service. It has a stainless steel cavity (cooking chamber) served by
an independent atmospheric steam generator which is electrically heated. A
powerful blower circulates the steam in the cavity to increase heating efficiency.
The cavity holds up to three (HY-3E) or five (HY-5E) standard steam table pans.
An 18 gauge stainless steel case encloses the cavity, the steam generator and
the control compartment that houses electrical components. Door hinges are
reversible (the door may be set to open from the left or right). Operating Controls
are on the front panel.
Model HY-3E steamers and HY-5E steamers are equipped with fully electronic
controls and a button activated, pre-programmed DELIME cycle. These units are
readily identified by their unique control panels, with touch pad controls, and the
distinctive symbol for steam integrated into the panel.
Both units are distinguished by the addition of a "fuse box" which allows the
operator to change fuses without removing panels.
The drain system on all models includes a spray condenser, which helps keep
steam from escaping from the chamber and cools drain water.
Information contained in this document is known to be current and accurate at the time of printing/creation. Unified Brands recommends
referencing our product line websites, unifiedbrands.net, for the most updated product information and specifications. © 2019 Unified Brands.
All Rights Reserved. Unified Brands is a wholly-owned subsidiary of Dover Corporation.
This manual provides information for:
HYPERSTEAM™ ATMOSPHERIC
CONVECTION STEAMER
MODELS HY-3E, (2)HY-3E, HY-5E
& (2)HY-5E
REFERENCES
UNDERWRITERS LABORATORIES, INC.
333 Pfingsten Road
Northbrook, Illinois 60062
NFPA – NATIONAL FIRE PROTECTION
ASSOCIATION
1 Batterymarch Park
Quincy, Massachusetts 02169
NSF INTERNATIONAL
789 N. Dixboro Rd.
P.O. Box 130140
Ann Arbor, Michigan 48113
INSPECTION & UNPACKING
CAUTION: SHIPPING STRAPS ARE UNDER TENSION AND CAN SNAP BACK WHEN CUT.
TAKE CARE TO AVOID PERSONAL INJURY OR DAMAGE TO THE UNIT BY
STAPLES LEFT IN THE WALLS OF THE CARTON.
CAUTION: THE HY-5E WEIGHS 230 POUNDS (104 KG). THE THE HY-3E WEIGHS 180
POUNDS (82 KG). YOU SHOULD GET HELP AS NEEDED TO LIFT THIS
WEIGHT SAFELY.
The HY-3E or HY- 5E will be delivered completely assembled in a heavy crate
attached to a skid. On receipt, inspect the crate carefully for exterior damage.
Carefully cut the straps around the crate and detach the crate from the skid. Be
careful to avoid personal injury or equipment damage from staples which might
be left in the crating.
Write down the model number, serial number and installation date. Keep this
information for reference. Space for these entries is provided at the top of the
Service Log in the back of this manual.
When starting installation, lift the unit straight up off the skid. Check packing
materials to make sure loose parts such as the condensate drip tray are not
discarded with the packing material.
PART NUMBER 148666, REV. I (02/19)
ANSI – AMERICAN NATIONAL
STANDARDS INSTITUTE
1899 L Street, NW, 11th Floor
Washington, DC 20036
CSA INTERNATIONAL
178 Rexdale Blvd.
Toronto, ON
Canada M9W1R3
ICC – INTERNATIONAL CODE COUNCIL
500 New Jersey Avenue, NW
6th Floor, Washington, DC 20001
