Groen HyPerSteam (2)HY-3E Operator's Manual

Atmospheric convection steamer(re-designed). 5 steamer pans [per cavity] (hy-5e) 3 steamer pans [per cavity] (hy-3e) (12 inch x 20 inch x 2 1/2 inch)
Hide thumbs Also See for HyPerSteam (2)HY-3E:
Table of Contents

Advertisement

Quick Links

Download this manual
important information i keep for operator i important information
IMPORTANT INFORMATION
IMPORTANT INFORMATION
IMPORTANT INFORMATION
IMPORTANT INFORMATION
OperatOr Manual
OPERATOR MANUAL
part number 148666 rev. e
Part Number 148666
Rev. B
MODELS:
Self-Contained
Electric Heated
Capacity:
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS
CONTAINED IN THIS MANUAL.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE
KEEP FOR OPERATOR
KEEP FOR OPERATOR
KEEP FOR OPERATOR
KEEP FOR OPERATOR
HY-3E,(2)HY-3E,
HY-5E, (2)HY-5E
HyPerSteam™
Atmospheric Convection
Steamer (Re-Designed)
5 Steamer Pans [per cavity] (HY-5E)
3 Steamer Pans [per cavity] (HY-3E)
(12" x 20" x 2 1/2")
FOR YOUR SAFETY
IMPORTANT INFORMATION
IMPORTANT INFORMATION
IMPORTANT INFORMATION
IMPORTANT INFORMATION
OM-HY-5E/HY-3E
.
DOMESTIC

Advertisement

Table of Contents
loading

Related Manuals for Groen HyPerSteam (2)HY-3E

Summary of Contents for Groen HyPerSteam (2)HY-3E

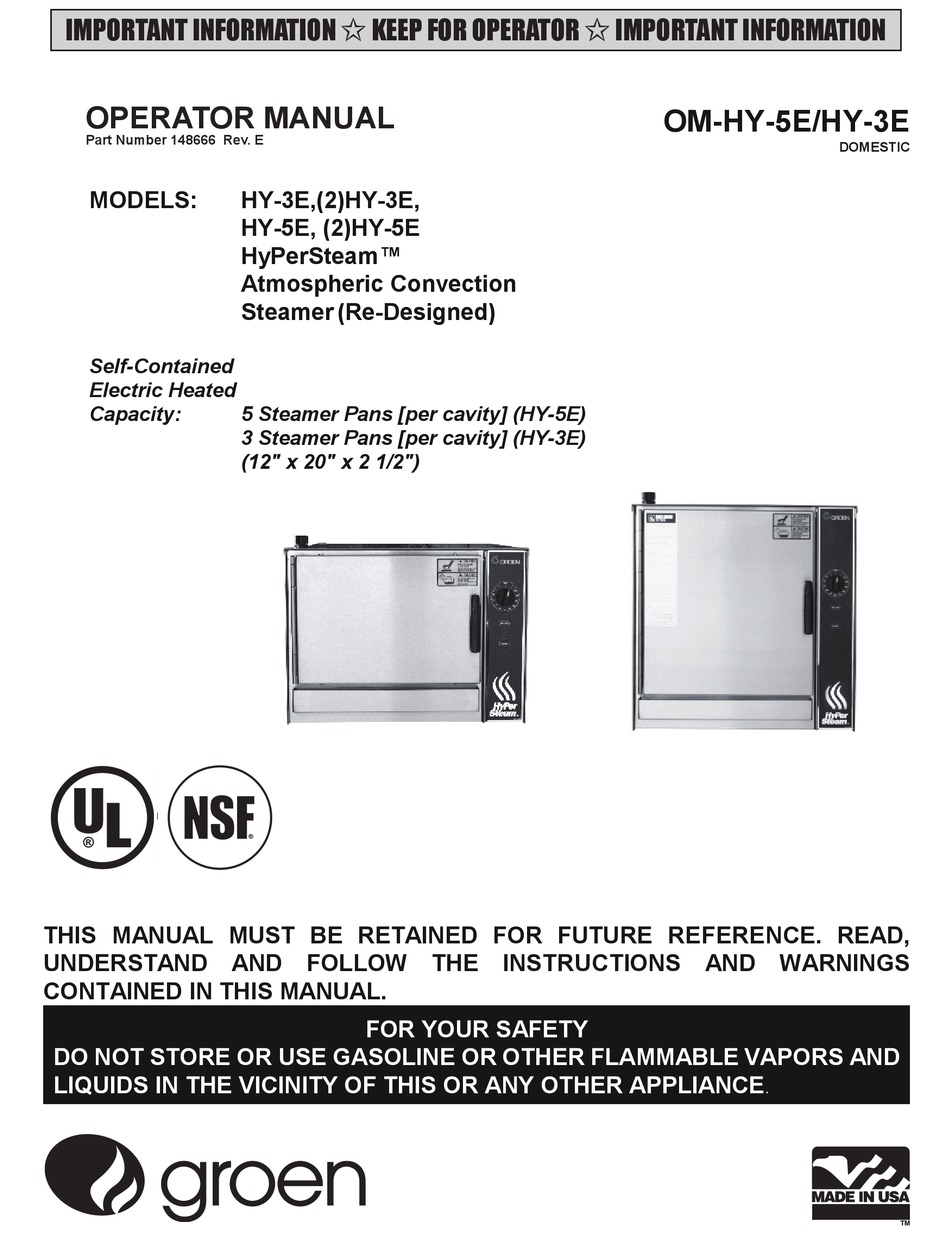

  • Page 1 important information i keep for operator i important information IMPORTANT INFORMATION IMPORTANT INFORMATION KEEP FOR OPERATOR KEEP FOR OPERATOR IMPORTANT INFORMATION IMPORTANT INFORMATION IMPORTANT INFORMATION IMPORTANT INFORMATION KEEP FOR OPERATOR KEEP FOR OPERATOR IMPORTANT INFORMATION IMPORTANT INFORMATION OperatOr Manual OPERATOR MANUAL OM-HY-5E/HY-3E part number 148666 rev.

  • Page 2: Operator Warnings

    DO NOT USE ANY DE-GREASER THAT CONTAINS POTASSIUM HYDROXIDE OR SODIUM HYDROXIDE OR THAT IS ALKALINE. WARNING: USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY GROEN OR THEIR AUTHORIZED DISTRIBUTOR VOIDS ALL WARRANTIES AND CAN RESULT IN BODILY INJURY TO THE OPERATOR AND DAMAGE THE EQUIPMENT. SERVICE BY OTHER THAN FACTORY-AUTHORIZED PERSONNEL WILL VOID ALL WARRANTIES.

  • Page 3: Table Of Contents

    OM-hy-5e/hy-3e Table of Contents OPERATOR WARNINGS ..............2 REFERENCES .

  • Page 4: Equipment Description

    OM-hy-5e/hy-3e Equipment Description Your Groen HY-5E or HY-3E HyPerSteam Convection Steamer is designed to give years of service. It has a stainless steel cavity (cooking chamber) which is served by an independent atmospheric steam generator which is electrically- heated. A powerful blower circulates the steam in the cavity to increase heating efficiency.

  • Page 5: Water Conditioning

    (acidity rating) of 7.0 or higher. Please follow mounted on the rear. these simple precautions: 1. The best way to prevent scale is to use a Groen PureSteem™ Water Treatment System which has been specifically designed for Groen steamers On both the HY-3E and HY-5E, the dual water and combination ovens.

  • Page 6: Installation And Start-Up

    OM-hy-5e/hy-3e Installation and Start-Up WARNING THE UNIT MUST BE INSTALLED BY PERSONNEL WHO ARE QUALIFIED TO WORK WITH ELECTRICITY AND PLUMBING. IMPROPER INSTALLATION CAN CAUSE INJURY TO PERSONNEL AND/OR DAMAGE TO THE EQUIPMENT. THE UNIT MUST BE INSTALLED IN ACCORDANCE WITH APPLICABLE CODES CAUTION DO NOT INSTALL THE UNIT WITH THE RIGHT OR LEFT SIDE VENTS BLOCKED OR WITHIN 12 INCHES OF A HEAT SOURCE (SUCH AS A BRAISING PAN, DEEP FAT FRYER, CHARBROILER OR KETTLE).

  • Page 7: Drain Connection

    OM-hy-5e/hy-3e Branch Circuit Protection IMPORTANT: Do not allow water traps in the Each Steamer, including individual units of line. A trap can cause pressure build-up in the cavity, which may cause the door gasket to leak. stacked models, should have its own branch circuit protection and ground wire.
  • Page 8 OM-hy-5e/hy-3e WARNING DO NOT CONNECT THE UNIT DRAIN DIRECTLY TO THE BUILDING DRAIN. Ensure that there is a free air gap between the end of the unit drain and the building drain. This gap should be as close as possible to the unit drain. Do not allow elbows or restrictions between the unit and the free air gap.

  • Page 9: Operation

    SERVICE light is lit. If DELIMING/CLEANING does not correct, turn off the power and Operator controls are on the front right of the unit. contact an Authorized Groen Service The HY-5E and HY-3E control panels have the Representative for repair.
  • Page 10 OM-hy-5e/hy-3e The timer is used in three ways: If you want to steam continuously, turn the • timer to the manual ON position. A green In the OFF position the steam generator light will come on. The unit will continue stays at a low boil or “holding”...

  • Page 11: Cleaning

    Do NOT use any product HOSE OR STEAM CLEAN ANY PART OF containing chlorides or sulfmic acid, THE UNIT. including hydrochloric acid. 4. Groen Spray De-Greaser (Part Number DONʼT MIX DE-LIMING AGENTS (ACID) 140830WS) WIT H DE-GREASERS (AL KAL I ) 5.
  • Page 12 HANDLING HOT STEAMER PANELS OR RACKS. door gasket. Close door. RECOMMENDED TOOLS & CLEANERS: STEP 8- To use steamer, press ON/OFF. When - Groen Delimer/Descaler (Part Number 114800). READY light appears, steamer is ready to Do NOT use any product containing chlorides or use.

  • Page 13: Maintenance

    Troubleshooting This Groen Steamer is designed to operate smoothly and efficiently if properly maintained. However, the following is a list of checks to make in the event of a problem. Wiring diagrams are furnished inside the service panel.

  • Page 14: Parts List

    OM-hy-5e/hy-3e partS lISt - hy-3e/5e...
  • Page 15 OM-hy-5e/hy-3e partS lISt - hy-3e/5e...

  • Page 16: Wiring Diagram

    OM-hy-5e/hy-3e WIrInG DIaGraM - hy-3e/5e...

  • Page 17: Wiring Diagram

    OM-hy-5e/hy-3e WIrInG DIaGraM - hy-3e/5e...

  • Page 18: Service Log

    OM-hy-5e/hy-3e Service Log Model No. Purchased From Serial No. Location Date Installed Date Purchased For Service Call Purchase Order No. Date Maintenance Performed Performed by...

  • Page 19: Warranty Protection

    Groen Foodservice Equipment (“Groen Equipment”) has been skillfully manufactured, carefully inspected, and packaged to meet rigid standards of excellence. Groen warrants its equipment to be free from defects in material and workmanship for twelve (12) months from installation date or fifteen (15) months from date of shipment from...
  • Page 20 1055 Mendell Davis Drive Jackson, MS 39272 Telephone 601 372-3903 OM-hy-5e/hy-3e Fax 601 373-9587 www.groen.com part number 148666 rev. e...
