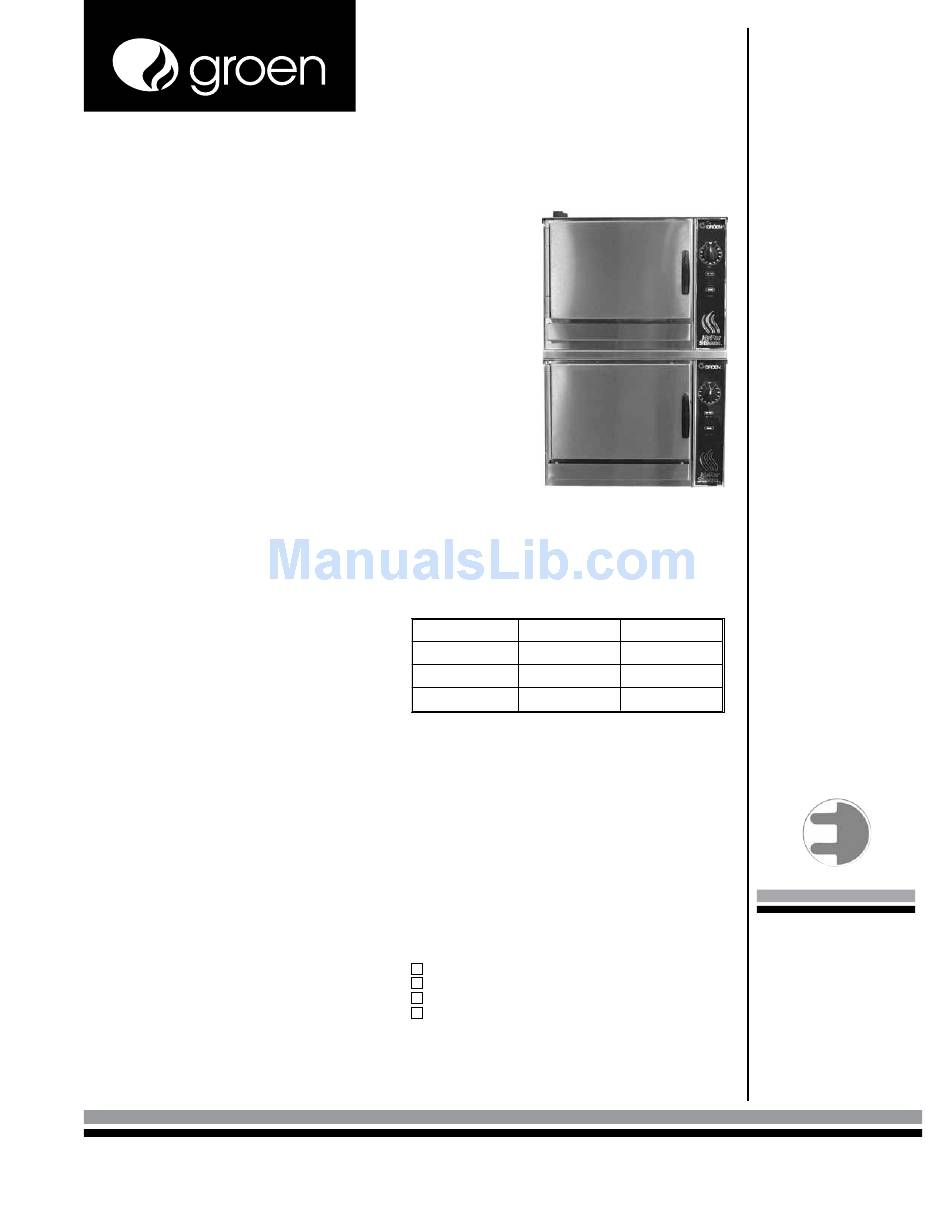

Groen HY-3E Manual

HyPerSteam Pressureless Steamer
Description
Steamer shall be Groen Model (2)HY-3E stainless steel
stacked pressureless steamers, each with a self-con-
tained atmospheric 8KW electric steam generator, per
bulletin 140803 as follows:
Construction
Each steamer cavity and cabinet shall have all stainless
steel construction with removable right side and left side
panels providing access to internal components. Inter-
unit water catch pan with rear drain shall separate units.
Steamer doors are all stainless steel with strong continu-
ous hinge and are field reversible for left or right swing,
doors shall be insulated and provided with a one piece,
replaceable seal. Easy open handle and latch shall
provide positive lock and seal when door is pushed or
slammed shut.
Hidden magnetic door switch cuts power to blower and
shuts down power to that generator when that door is
opened. Pan support racks shall be polished stainless
steel and removable for easy cleaning. A stainless steel
condensate collection tray is positioned under each cav-
ity door.
Finish
Cabinet exterior including doors shall be finished to a
#3 uniform finish. Cavity interiors are polished stainless
steel. Control panel face plates shall be smudge resistant
polyester film, ensuring maximum ease in cleaning and
maintaining an attractive appearance.
UL & CUL Listing
Steamers shall be UL and Canadian UL listed.
Sanitation
Unit shall be designed and manufactured to meet NSF
codes and be NSF listed. Unit shall allow operator to
delime each steam generator through deliming ports on
top, without tools or service call. Push button auto-clean
feature is standard.
Controls
Steamer controls for each unit shall include an ON/OFF
power button; 60 minute mechanical timer, with continu-
ous steam setting; and READY light which indicates when
cavity is ready for steaming. Auto-CLEAN button initiates
deliming cycle.
Performance Features
Each steamer shall have a powerful side-mounted blow-
er, which increases steam velocity and provides efficient
steam distribution throughout cavity and between loaded
pans. Steam generator delivers 2.6 KW power input per 2
1/2" deep steam pan.
Heat up time to READY shall be 10 minutes or less
under normal conditions. Cavity is kept warm and ready
for instant steam between loads. No cavity warm up
required, after READY light comes on.
delime indicator light warns operator of need to delime
steam generator. Unit will shut off if water level is low.
When power is turned "off", unit automatically drains that
steam generator, to reduce sediment build-up.
1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, unifiedbrands.net
Please reference our website for the most
updated product information and specifications.
models (2)HY-3E/EF/EC

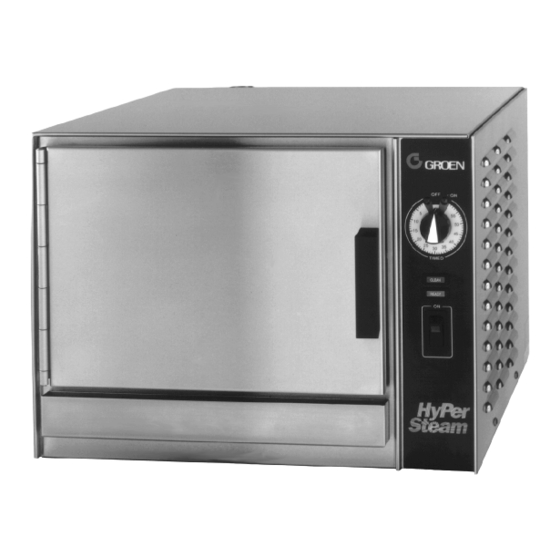

Model (2)HY-3E shown
Atmospheric Steam Generators
Each unit shall have an electric heated rear mounted steam
generator, to provide atmospheric steam to the chamber at
a temperature of approximately 212°F. Each steam genera-
tor has an electric water sensor and 8KW electric heating
element which is replaceable from the side.
Pan Capacity
Pan Size Per Cavity
12 x 20 x 1" 6
12 x 20 x 2 1/2" 3
12 x 20 x 4" 2
Installation
Unit requires two 208, 240 or 480 volt, single or three
phase electrical service connections. Unit requires two 3/4"
NH cold water supply lines and 1-1/2" free venting drain.
Water Supply Requirements
To minimize service problems, a PureSteem water treat-
ment (softening) system is recommended when water
quality is found to exceed limits stated below and in opera-
tor manual.
Recommended MINIMUM water quality standards are:
Total dissolved solids (TDS) content should have a value
of 30 to 40 parts per million; and the water pH should be
7.0 to 9.0
Options/Accessories
Stainless steel support stand
Pan racks for support stand
4" adjustable legs
Optional second water connection for
spray condensers
Origin of Manufacture
Steamer shall be designed and manufactured in the United
States.
6 Pan Total Capacity
Stainless Steel Stacked
Pressureless Steamers
Table Top or Stand
Mounted
Self-Contained
Electric Heated
Short Form
Unit shall be Groen double
stacked HyPerSteam pres-
sureless steamers Model
(2)HY-3E, each with self-con-
tained, atmospheric electric
heated steam generator, per
Bulletin 140803. All stainless
steel construction with a pow-
erful blower to circulate steam
within each cavity. Standard
operating controls including:
60 minute mechanical timer,
constant steam setting, ready
light and CLEAN cycle but-
ton to initiate deliming. Simple
generator deliming through
deliming ports on top. Doors
are field reversible, with easy
open latch and hidden mag-
netic door switch. Atmospheric
steam generators require no
pressure gauge or switches,
have automatic water drain
and 8KW power input. Units
shall come up to steam in
10 minutes or less from a
cold start, and provide warm
cavity-instant steam capabil-
ity. See other side for electric,
water and drain connections
required. Made in the U.S.A.
Total
12
6
4
Applications
Pasta
Rice
Vegetables (Fresh & Frozen)
Seafood (Fresh & Frozen)
Poultry
Potatoes
Eggs
Meats
Reheat Cook-Chill &
Prepared Foods
Groen HyPerSteam, Page 2
140803C
Revised 08/09
