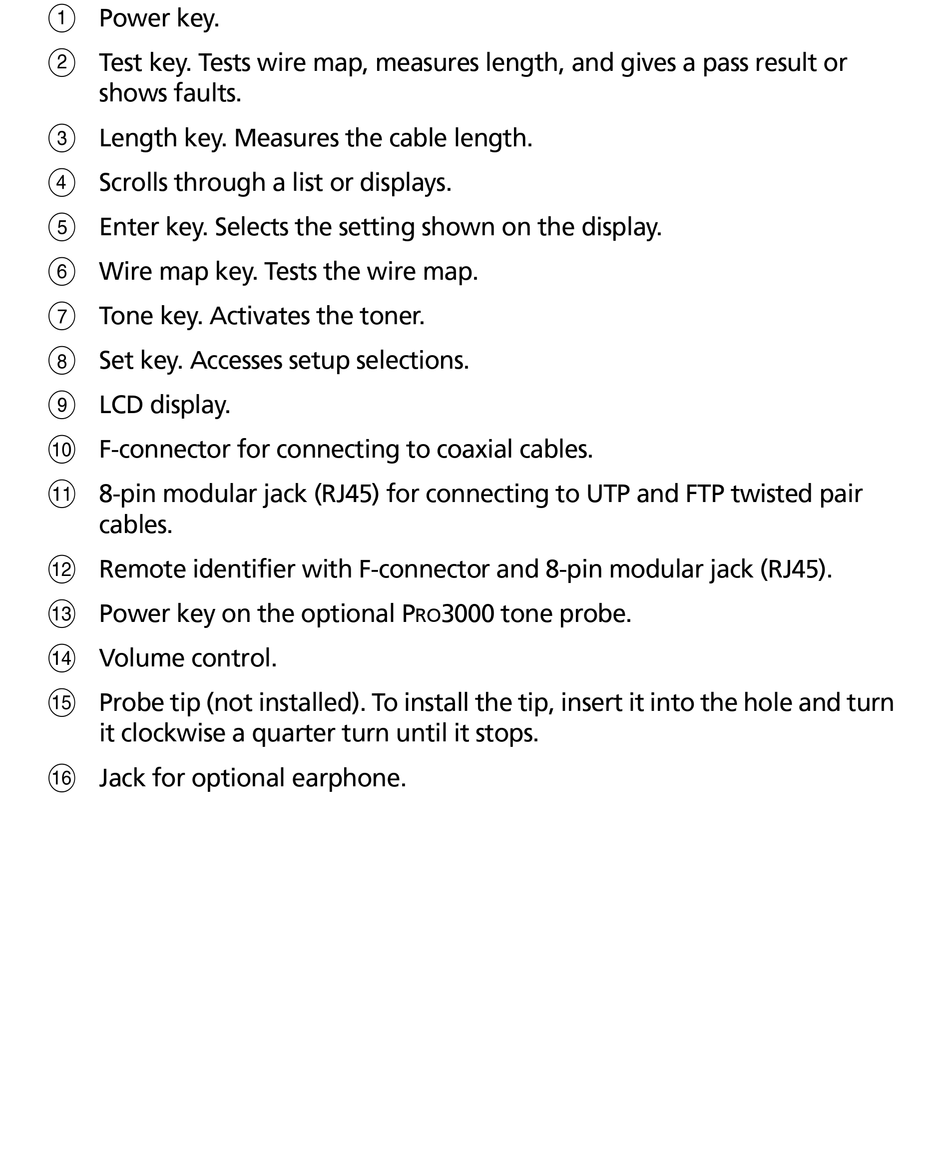

Fluke MicroMapper Pro Instruction Sheet page 5

A
Power key.
B
Test key. Tests wire map, measures length, and gives a pass result or
shows faults.
C
Length key. Measures the cable length.
D
Scrolls through a list or displays.
E
Enter key. Selects the setting shown on the display.
F
Wire map key. Tests the wire map.
G
Tone key. Activates the toner.
H
Set key. Accesses setup selections.
I
LCD display.
J
F-connector for connecting to coaxial cables.
K
8-pin modular jack (RJ45) for connecting to UTP and FTP twisted pair
cables.
L
Remote identifier with F-connector and 8-pin modular jack (RJ45).
M
Power key on the optional P
N
Volume control.
O
Probe tip (not installed). To install the tip, insert it into the hole and turn
it clockwise a quarter turn until it stops.
P
Jack for optional earphone.
3000 tone probe.
