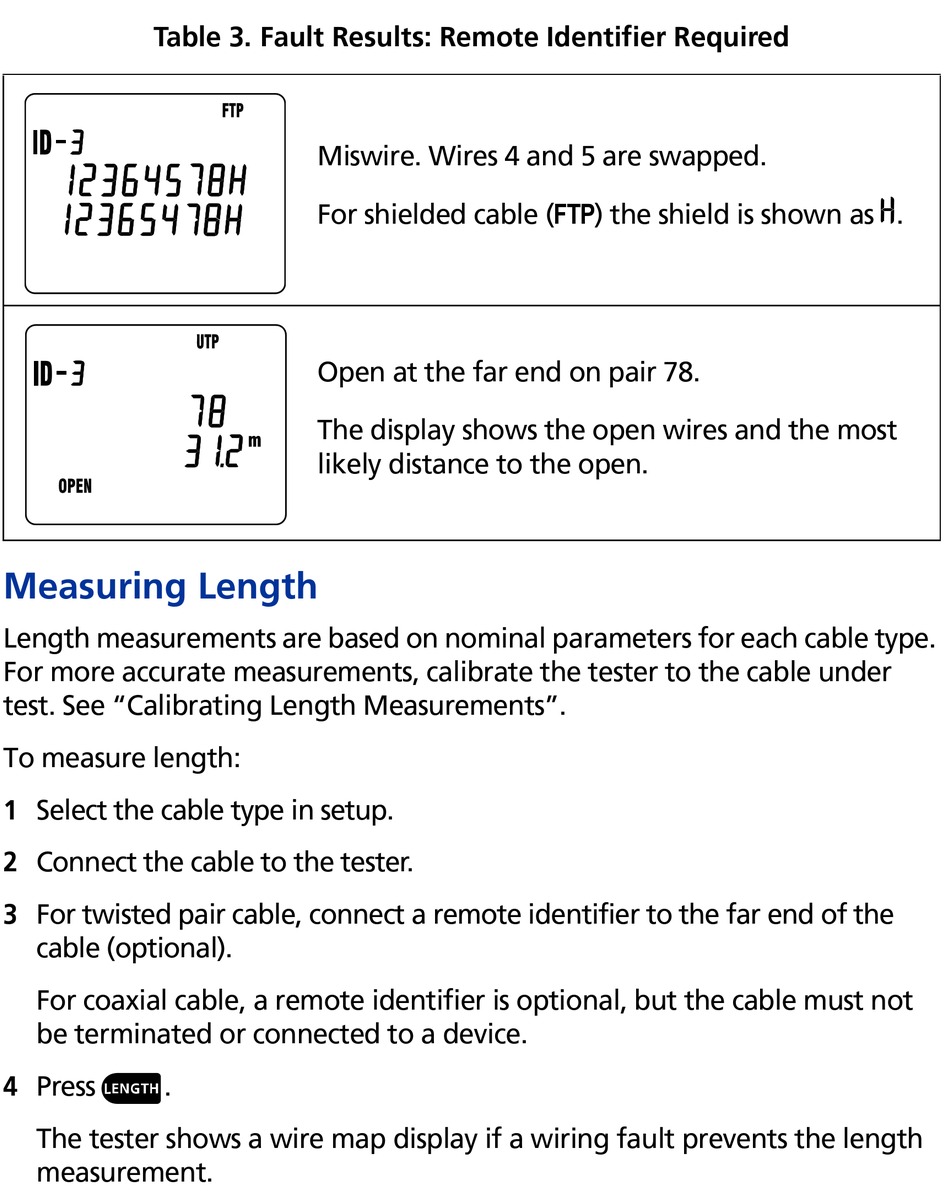

Measuring Length - Fluke MicroMapper Pro Instruction Sheet

Table 3. Fault Results: Remote Identifier Required

Measuring Length

Length measurements are based on nominal parameters for each cable type.
For more accurate measurements, calibrate the tester to the cable under
test. See "Calibrating Length Measurements".
To measure length:
1 Select the cable type in setup.
2 Connect the cable to the tester.
3 For twisted pair cable, connect a remote identifier to the far end of the
cable (optional).
For coaxial cable, a remote identifier is optional, but the cable must not
be terminated or connected to a device.
4 Press L.
The tester shows a wire map display if a wiring fault prevents the length
measurement.
Miswire. Wires 4 and 5 are swapped.
For shielded cable (FTP) the shield is shown as
Open at the far end on pair 78.
The display shows the open wires and the most
likely distance to the open.
H
.
