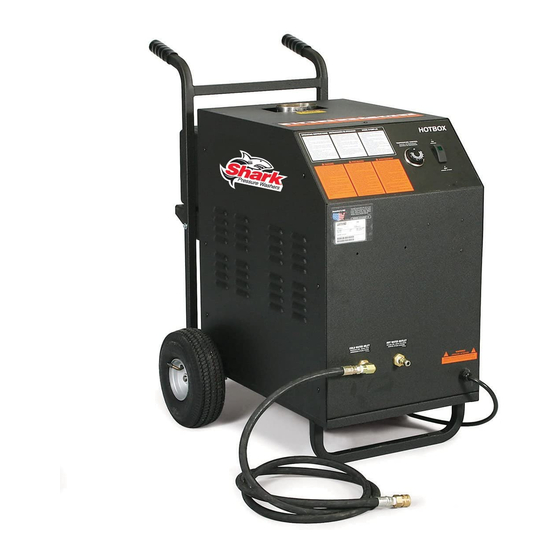

Shark HP-5030D Operating Instructions And Parts Manual
Shark pressure washer user manual
Hide thumbs
Also See for HP-5030D:
- Operating instructions and parts manual (18 pages) ,
- Operating instructions and parts manual (18 pages)
Subscribe to Our Youtube Channel
Related Manuals for Shark HP-5030D
Summary of Contents for Shark HP-5030D

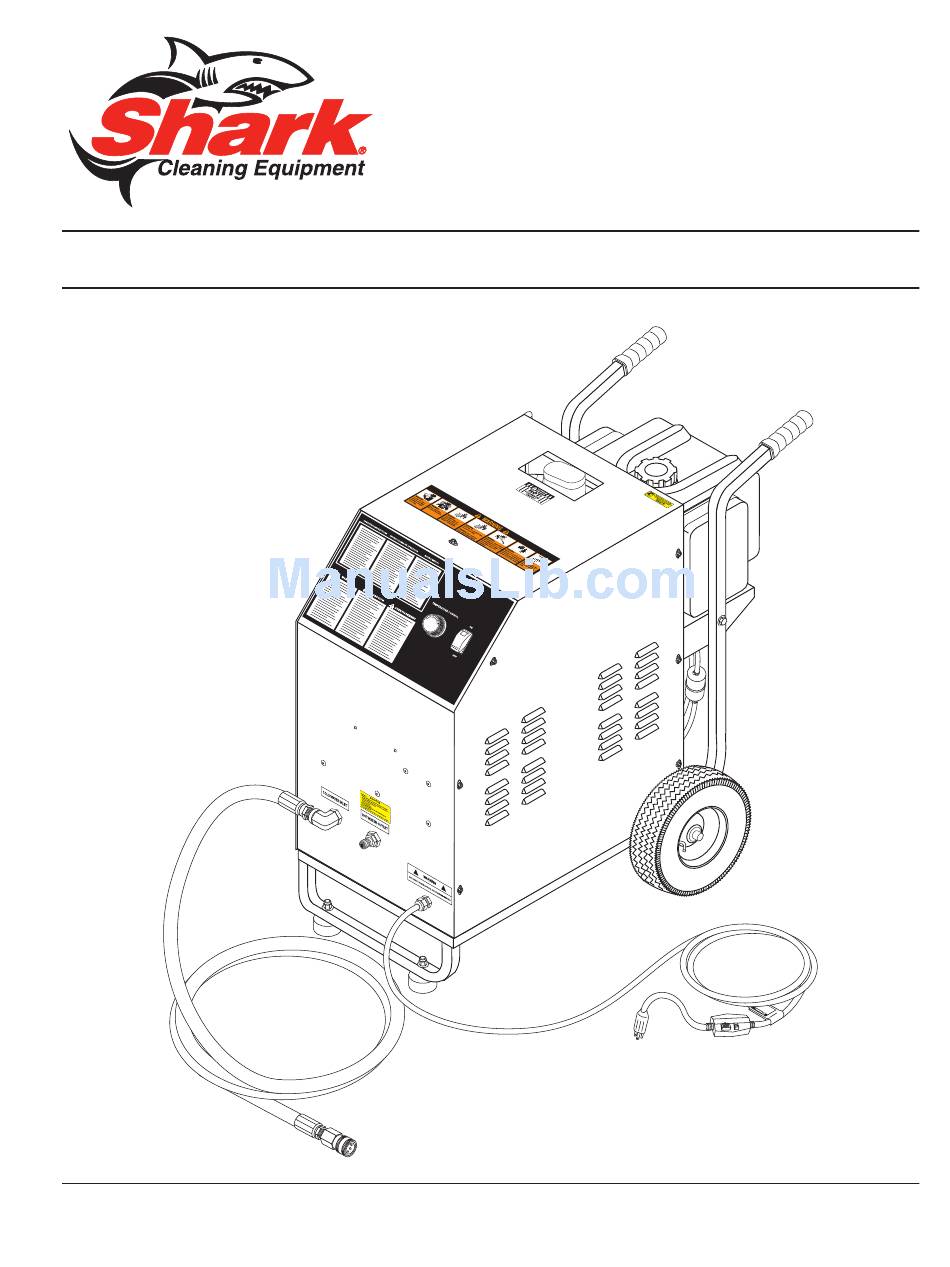

- Page 1 Model: HP operating instruction and parts manual HP-5030d For technical assistance or the sHarK dealer nearest you visit our website at www.shark-pw.com 97-6133...
-
Page 3: Table Of Contents
introduction important safety information installation component identification starting and operating instructions preventative maintenance maintenance and service Field service of Fuel pump machine assembly exploded View machine assembly exploded View parts list Burner assembly, exploded View Burner assembly exploded View parts lists troubleshooting preventative maintenance Warranty... -
Page 4: Introduction & Important Safety Information
5 gpm and maximum pressure is 000 psi. Flow rate of gpm will achieve an average temperature of about 180°F. -
Page 5: Important Safety Information
SaFeTY iNFoRMaTioN use caution when operating. do not point the spray gun from the attached pressure washer at anyone or at any part of the body. this machine is to be used only by qualified operators. 8. never make adjustments on machine while it is in operation. -
Page 6: Component Identification
CoMPoNeNT ideNTiFiCaTioN CAUTION HOT WATER: Must use insulated spray gun and wand. Pressure Washer 3,000 PSi Maximum (not included) Pressure Washer Coupler Fresh Water Faucet garden Hose (not included) diesel Fuel Tank insulated Wand (not included) insulated Spray gun (not included) -
Page 7: Water Source
(two feet away from walls should be ad- equate.) Water Source: the water source for the pressure washer should be supplied by a minimum 5/8” i.d. garden hose with a city water pressure of not less than 0 psi. if the water... -
Page 8: Operating Instructions
97-61 • rev. 5/07 STeP 4: connect the power cord into the proper electrical outlet, then push in the gFci reset button. -
Page 9: Cleaning Tips
• if painted surfaces are peeling or chipping, use extreme caution as pressure washer may remove the loose paint from the surface. • Keep the spray nozzle a safe distance from the surface you plan to clean. -
Page 10: After Extended Storage
SToRage 4. cover the pressure washer and store in a clean, dry place that is well ventilated away from open flame or sparks. NoTe: the use of a fuel additive, such as sta-Bil , or an equivalent, will minimize the ®... -
Page 11: Troubleshooting
PRobleM PoSSible CaUSe bURNeR Will NoT disconnected or short in electrical ligHT wiring Burner motor thermal protector tripped on/oFF switch defective Heavy sooting on coil and burner, can cause interruption of air flow and shorting of electrodes improper electrode setting Fuel not reaching combustion cham- Fuel solenoid malfunction clogged burner nozzle... -
Page 12: Preventative Maintenance
PRobleM loW WaTeR TeMPeRaTURe WaTeR TeMPeRaTURe Too HoT PReveNTaTive MaiNTeNaNCe machine Water lines Fittings Fuel Filter inlet strainer Fuel nozzle Fuel tank electrodes Fuel pump strainer electrode Wires TRoUbleSHooTiNg PoSSible CaUSe improper fuel or water in fuel low fuel pressure Weak fuel pump Fuel filter partially clogged soot build up on coils... -
Page 13: Rupture Disk
2. check to see that the attached pressure washer water pump is properly lubricated. . Follow winterizing instructions to prevent freeze damage to pump and coils. -
Page 14: Fuel Pressure Adjustment
Keep the tip free of surface deposits by wiping it with a clean, solvent-saturated cloth, being careful not to plug or enlarge the nozzle. For maximum efficiency, replace the nozzle each season. select nozzle size based on the pressure washer you will be using: nozzle 1.50 1.75 2.00 - 2.25... - Page 15 Field RePaiR iNSTRUCTioNS 11. test machine (make sure): Blower motor spins Fuel is on machine has power to it switch is on Flow of water through machine thermostat is turned up Flow switch is adjusted properly 12. When unit is operating properly, turn machine off, tighten front panel, and install hood and 1 self tapping screws with recess washers.
-
Page 16: Exploded View
exPloded vieW 97-61 • rev. 5/07 burner assembly details... -
Page 17: Exploded View Parts List
exPloded vieW PaRTS liST iTeM PaRT No. deSCRiPTioN 90-2020 nut, cage, /8" x 12 gauge 90-1996 screw, /8" x /4" Whiz loc 4-00 Wheel & tire, 6" steel rim 4-05089 thermostat, adjustable, 240°F 1 6-01062 gFci, 120V 15a, w/6' 12- cord 6-020240 switch, rocker, carling... -
Page 18: Burner Assembly Exploded View
bURNeR aSSeMblY exPloded vieW inlet outlet 97-61 • rev. 5/07... -
Page 19: Burner Assembly Parts List
bURNeR aSSeMblY PaRTS liST iTeM PaRT No. deSCRiPTioN 91-010170 coil, lavorwash 7-46140112 clamp, electrode 7-46140004 electrode 7-1000017 elbow 7-0990015 ring, locking 7-46080002 slide 7-46050001 Flange, Burner 7-1040009 nozzle, Burner 1.50, 60° 7-56110098 cable, High tension 7-405000 Board, terminal 7-5610147 cover, tank external, ss 7-56100105 deflector 7-56101... - Page 21 PARTICULAR PURPOSE. SHARK does not authorize any other party, including authorized Dealers, to make any representa- tion or promise on behalf of SHARK, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of SHARK products conforms to local codes. While SHARK attempts to assure that its products meet national codes, it cannot be responsible for how the customer chooses to use or install the product.
- Page 22 Form #8.914-6.0 / 97-61 • revised 5/07 • printed in u.s.a.
