INSTALLATION

2 INSTALLATION
The OptiCal enclosure is designed for bench top mounting in a laboratory type
environment. It must be positioned in a clean and level location with suffi cient clearance
at the rear of the enclosure for adequate ventilation.
2.1

Installing the Relative Humidity and Temperature Control Probes

The relative humidity control probe and the Pt100 temperature probe are both supplied
as accessories with the OptiCal, and are removed during transportation.
To install the probes, remove the chamber door and plug in the probes as shown in
Figure 3.
This internal RH control probe is delivered with its own calibration certifi cate.
RH Control
Probe
Temperature Probe
4
Before using the OptiCal make sure that Sections 2.1, 2.2 and
The OptiCal is not designed to be fully portable. However, it can
easily be moved to any suitable location for use. Before moving,
ensure that any water in the reservoir is drained and that the
RH control probe and the temperature probe in the chamber are
The OptiCal should NOT be moved while in operation.
 
 

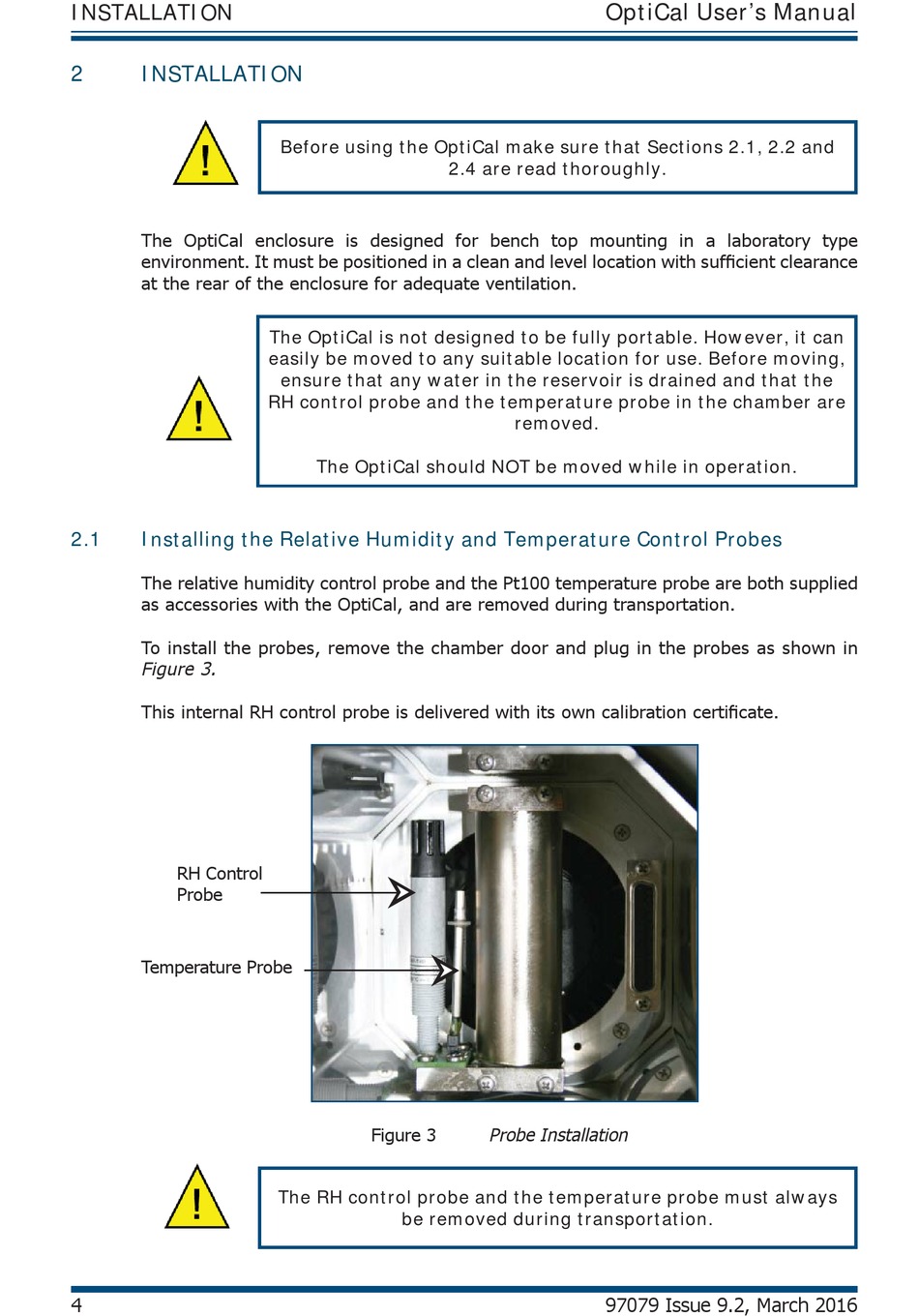

Figure 3
The RH control probe and the temperature probe must always
be removed during transportation.
OptiCal User's Manual
2.4 are read thoroughly.
removed.
Probe Installation
97079 Issue 9.2, March 2016
