OptiCal User's Manual

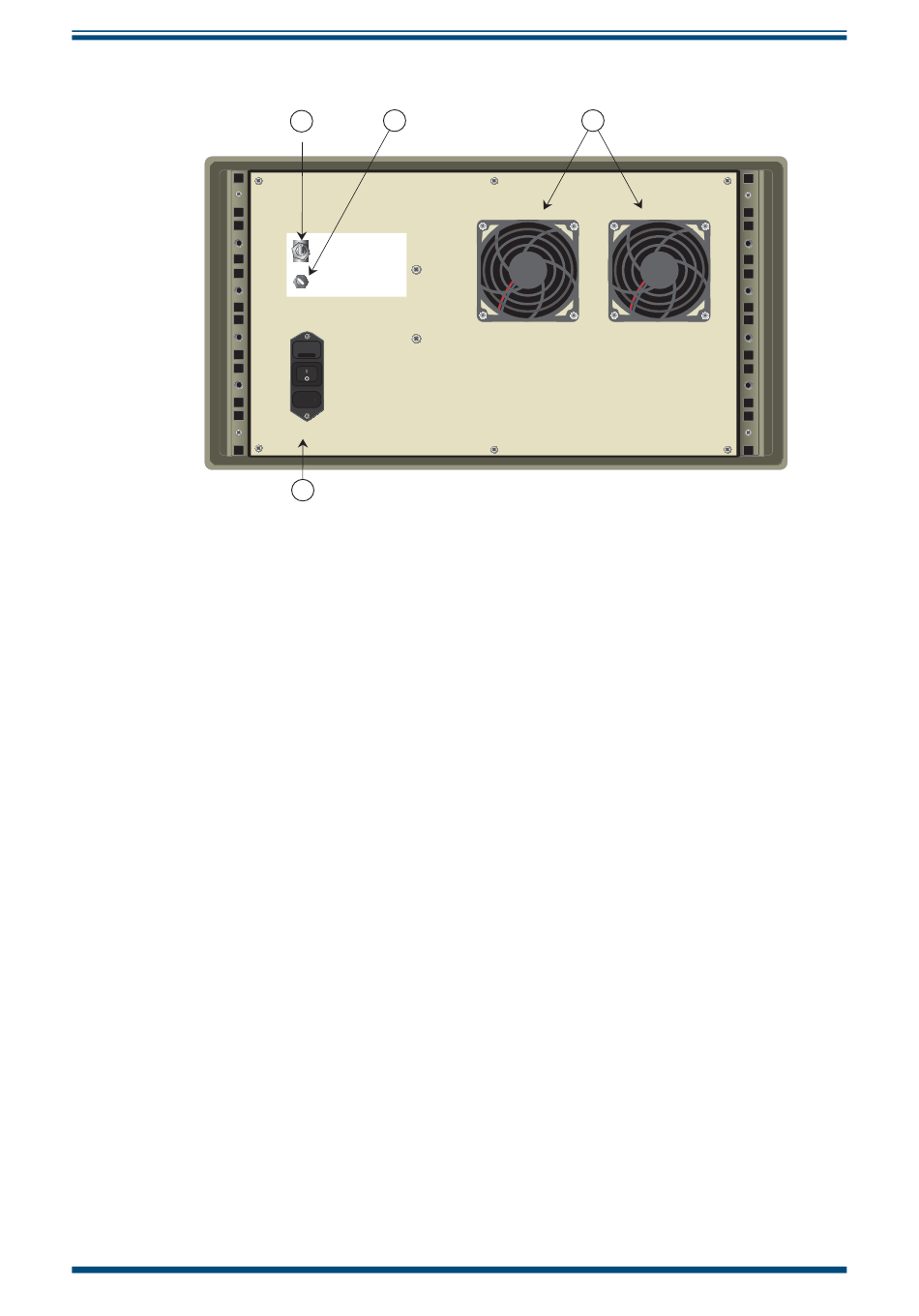

Back Panel
1. Remote Communications Switch to enable remote chamber control
2. Optidew chilled mirror reference optics adjustment potentiometer (refer
to Section 4.2)
3. Ventilation fans
4. Electrical mains connector, on/off switch and power input fuse
Accessories
The OptiCal humidity and temperature generator is delivered with the following standard
accessories:
• Bottle of distilled water
• Desiccant cell fi lled with indicating silica gel
• HT961T00 control probe + temperature probe
• Chamber door (according to customer specifi cation)
• IEC mains cord set
• Calibration certifi cate for internal reference probe
• Certifi cate of conformity (graph)
• User's manual
• RS232 cable
• Application software
• Calibration certifi cate for Optidew chilled mirror reference instrument
Michell Instruments
2
1
On
Remote Communications
Off
Optics Adjustment
4
Figure 2
3
OptiCal - Back Panel
INTRODUCTION
3
