4 iNSTALLATiON

Position the projector on a stable, suitable platform or utilise the
optional bracket for a fixed ceiling installation.
wARNiNg: if using the ceiling mount bracket, scrupulously
observe the safety instructions included with the bracket
itself. if using a bracket other than that supplied by SiM2
Multimedia, make sure that the projector is at least 65 mm
below the ceiling and that the bracket does not obstruct the
air vents (intake and outlet).

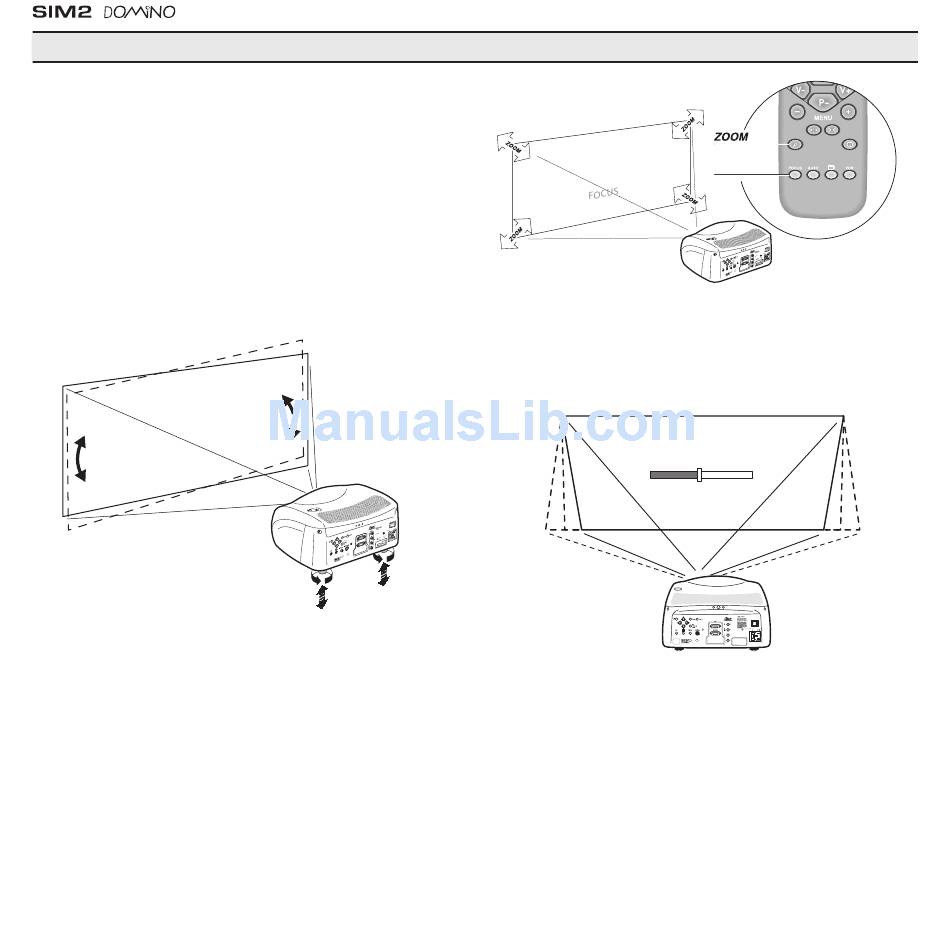

If the projected image is not level, adjust the feet on its base
to obtain a level position, lining up the base of the projected
image to the base of the projection screen (Fig. 6).
Place the projector at the desired distance from the screen:
the size of the projected image is a function of the distance
between the lens and the screen and the lens zoom setting.
Use the motor zoom (Fig. 7) to zoom the projected image in
and out.
Use the motor focus function (Fig. 7) to obtain a clear image;
if the image is correctly focused, you should be able to see
each single pixel of the projected image when close to the
screen (Fig. 7).
8
If this displacement is insufficient, tilt the projector and correct
the keystone error with the Keystone adjustment in the Installa-
tion menu (Fig. 8).
romet tre
ne pas comp e d'ince nde
: pour les resqu type
ATTE NTION tion contre fusible de meme
la protec par un teristi que tion again st
rempl acer carac ued protec
et de mems for contin
CAUT ION: fire, replac e
risk of same type
only with fuse.
and rating
Fig. 6
The Orientation adjustment in the Set up menu allows you to
reverse the image vertically and horizontally (Fig. 9), to allow
the projector to be used for desktop front, ceiling front, desktop
rear and ceiling rear installations (Fig. 9).
F O C U S
FOCUS
F O C U S
ne pas comprom d'incend ettre e
ION: pour les resque de meme type
ATTENT la protectio er par n contre un fusible istique
remplac mems caracter d protectio n against
et de N: for continue
CAUTIO risk of fire, replace type
only with fuse. same
and rating
KEYSTONE
20%
C-SYNC
Fig. 7
Fig. 8a
