460711000
HT380.
<<< user and installation manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Grand Cinema HT380 and is the answer not in the manual?

Questions and answers

Related Manuals for Sim2 Grand Cinema HT380

Summary of Contents for Sim2 Grand Cinema HT380

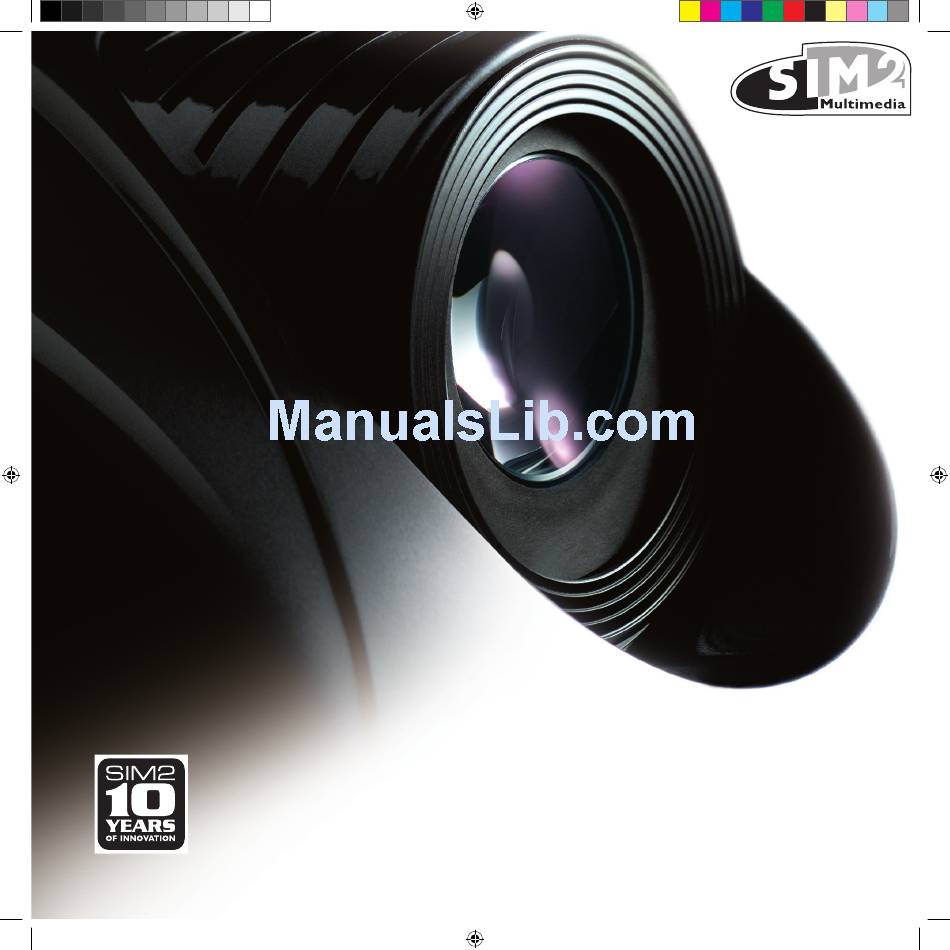

  • Page 1 460711000 HT380. <<< user and installation manual...

  • Page 2: Remote Control And Keypad

    1 REMOTE CONTROL AND KEYPAD BACKLighTiNg STAND-BY / ON Backlights the keys on the remote control LIGHT Sets the panel to stand-by . KEYS 0-9 Select the sources directly. Switches on the panel from Standby. SOURCE Displays the source selection menu. ESCAPE Deactivates the On Screen Display.

  • Page 3: Table Of Contents

    1 iNTRODUCTiON The HT380 projector represents the state of the art in image processing Different input signal resolutions can be adapted to match the specified combined with the innovative DLP™ sytsem and outstanding optics. screen resolution without loss of image quality, thanks to a generous selection of preset aspect ratios, some of which are user definable.

  • Page 4: Important Safety Instructions

    Read all chapters of this manual carefully before switching on the projector. This manual provides basic instructions for using the hT380 system. installation, preliinary adjustments and procedures that necessitate the removal of the top cover and contact with electrical com- ponents must be done by authorised, trained technicians.

  • Page 5: Fcc Statement

    fCC STATEMENT CLASS B PRODUCT Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 6 PROJECTOR 19 16 19 17 me ttr mp ro pa s co d'i nc en ur ne re sq ue typ e N: po e les me me NT IO AT TE co ntr e de cti on fus ibl la pr ote pa r un ain st...
  • Page 7 • Changing the fuses. • Do not allow the unit to overheat. Before changing the fuse disconnect the unit from the To prevent this, allow a free space of at least 40 cm around mains power supply. the back of the projector. The fuse compartment is next to the power supply con- Do not block the ventilation slots.

  • Page 8: Unpacking

    3 UNPACKiNg Fig.4 To remove the HT380 system from its carton follow the diagrams (Fig. 4). Keep the carton for use when transporting or shipping the unit. CONTENTS Of PACKAgE - the projector - Remote control - four 1.5V AAA batteries (for remote control) - three power cables (EU, UK, USA) for the projector - the user manual.

  • Page 9: Installation

    SiM2 Multimedia, make sure that the projector is at least 65 mm below the ceiling and that the bracket does not obstruct the Fig.
  • Page 10 Prevent ambient light shining directly on the screen during projection as this will reduce the contrast of the projected image. Furniture and other objects with reflecting surfaces, as well as light coloured walls should be avoided, as they are likely to interfere with the screen’s characteristics.

  • Page 11: Switching The Projector On And Off

    5 SwiTChiNg ThE PROJECTOR ON AND Off SwiTCh ON fROM STANDBY wARNiNg: Connect the projector to a power supply with a nominal voltage within the following values: 110-240 V AC, With the remote control press one of the keys (Fig. 14): 50/60 hz.

  • Page 12: Connections

    red leds on), after which they automatically switch off. Do not SwiTChiNg Off AND RETURNiNg TO STANDBY switch off the projector with the power switch until the fans have stopped running. With the remote control: press With the keypad: press When switching off, the projector goes into stand-by mode and stores the input selection at the time of switch-off.
  • Page 13 - Connection panel o m e tt o m p r p a s c 'i n c e n u r n e q u e d N : p o s r e s m e ty...
  • Page 14 Connect the R, G, B outputs of the source to the respective R, connector in compliance with the S/PDIF standard. G, B inputs of the HT380 (taking care not to invert the positions) You can use a DVI-D > HDMI adapter cable to connect the and any synchronisation signals to the HV.

  • Page 15: Remote Control

    m e tt re o m p ro p a s c 'i n c e n MOTORiSED SCREEN OUTPUTS RS232 iNTERfACE CONNECTOR u r n e q u e d N : p o s re s m e ty tr e le N T IO e m e...

  • Page 16: On Screen Menu

    9 ON SCREEN MENU All system functions can be operated from the keypad or MAiN MENU remote control, with the aid of a complete, user-friendly on screen menu. To access the main menu of the On Screen Display press the MENU key on the keypad or the MENU+ or MENU- key on the remote control.
  • Page 17 To access these submenus, press the <, mentre l’uscita ed il ritorno al livello superiore avviene con la pressione dei tasti MENU+/- key. Aspect Normal Press ESC on the remote control or keypad to interrupt the Colour Temperature Anamorphic menu display or wait for it to disappear automatically after Letterbox Gamma Correction the number of seconds set on theSET-UP page.
  • Page 18 Selecting the NO option causes the de-interlacer to apply a NORMAL: projects the image occupying the full height of the Motion compensated algorithm optimized for video camera screen while maintaining the aspect ratio of the input signal. signals. When the input signal aspect ratio is 4:3 black vertical bands are displayed on the right and left of the picture.
  • Page 19 NATIVE (the machine’s native white balance); gAMMA CORRECTiON D75 - D65 - D50 - C standard CIE illuminants; Determines the system’s response to the grey scale, empha- Fig. 23 sising or attenuating the different grades of brightness (blacks, Image dark, medium, light grey, whites) in the projected image. The projector has a range of gamma functions which enable R G B White...
  • Page 20 SIM2 (EN) and Graphics (GR), User. The Standard curve has been tions can be moved to outside the displayed area. Il defined for general use, and is set for videocameras, digital parameter to 2.2, typically yields pleasant, contrasty images. cameras, and for viewing films or photos on your PC. The Enhan- Y/C DELAY ced set is suitable for watching movies.
  • Page 21 It allow to select the languages available for the On Screen Display menus. iNPUTS LiST In order to make the HT380 system increasingly flexible, the functions described below make it possible to modify the inputs selection menu and adapt it so that it matches the require- ments of the user more closely.
  • Page 22 same key as before. Use the ▲ key to switch from upper case Table 6 to lower case characters. Cancel errors with ▼ once you have selected the character in question. Once you have terminated the text input procedure confirm your text and save it by pres- sing the MENU+ key on the remote control.
  • Page 23 Blank MEMORiES Switches off the video signal and displays a black page. As soon as the key is pressed an OSD indication lasting a few se- The main picture parameters can be saved in discrete sets conds confirms that the function has been activated. Pressing of values called “Memories”...
  • Page 24 the corresponding drop-down menu (◀ key). Select the line Save memory To save the image parameter current values in memory 1, ‘Save initial settings’. To confirm the operation, the message ‘Initial settings saved in move the cursor to line ‘1’ with the ▼ and ▲ ‚ keys and open Memory 1’...
  • Page 25 iNfO Displays the current status of the projector and information concerning the projected video/graphic signal. This function is displayed on pressing the key on the remote control (or, in the absence of the On Screen Display, the ▶ key on the keypad). QUiCK MENUS The quick menus provide access to the main adjustments that affect image quality without calling the main menu.

  • Page 26: Cleaning And Maintenance

    • Make sure the video or graphic signals supplied by the socket on the rear of the projector. source are compatible with the HT380 system’s technical • Replace the fuse located on the projector’s power socket with an specifications and, in particular, with those of the selected identical type (T 3,15A H).

  • Page 27: Optional Accessories

    12 OPTiONAL ACCESSORiES You can purchase the following optional accessories at your Use only original or SiM2 Multimedia approved accessories. Dealer: warning: for ceiling/wall installation, by means of suspension bracket, carefully follow the instructions and safety instruc- - CEILING MOUNT KIT tions recommended by the Manufacturer in the bracket’s...

  • Page 28: Technical Specifications

    A - TEChNiCAL SPECifiCATiONS ELECTRONiCS gENERAL PROJECTOR SPECifiCATiONS Power cable: (EU, UK and US); 2m length input signals: Power supply: from 110 to 240 V AC, +/-10% tolerance • COMPOSITE VIDEO (CVBS) Frequency: from 48 to 62 Hz gold plated RCA connectors 240 W max Power absorption: 1,0 V / 75 Ω, negative synchronisation...

  • Page 29: Dimensions

    DiMENSiONS...

  • Page 30: Projection Distance

    PROJECTiON DiSTANCE 16/9 Screen size Max projection distance Screen width Min projection distance (diagonal) max L max L in . 50” 44” 66” 90” 60” 52” 79” 107” 70” 61” 93” 126” 80” 70” 106” 144” 90” 78” 119” 162” 100”...
  • Page 31 Viale Lino Zanussi, 11 33170 Pordenone - ITALY Phone +39.434.383.253-256 Fax +39.434.383260-261 www.sim2.com e-mail: info@sim2.it SIM2 USA Inc. 10108 USA Today Way 33025 Miramar FL - USA Phone +1.954.4422999 Fax +1.954.4422998 www.sim2usa.com e-mail: sales@sim2usa.com SIM2 Deutschland GmbH Gewerbepark, 17 D-35606 Solms Phone 0800.800.7462 Fax 0800.900.7462...
