Summary of Contents for Inseego Skyus 3G

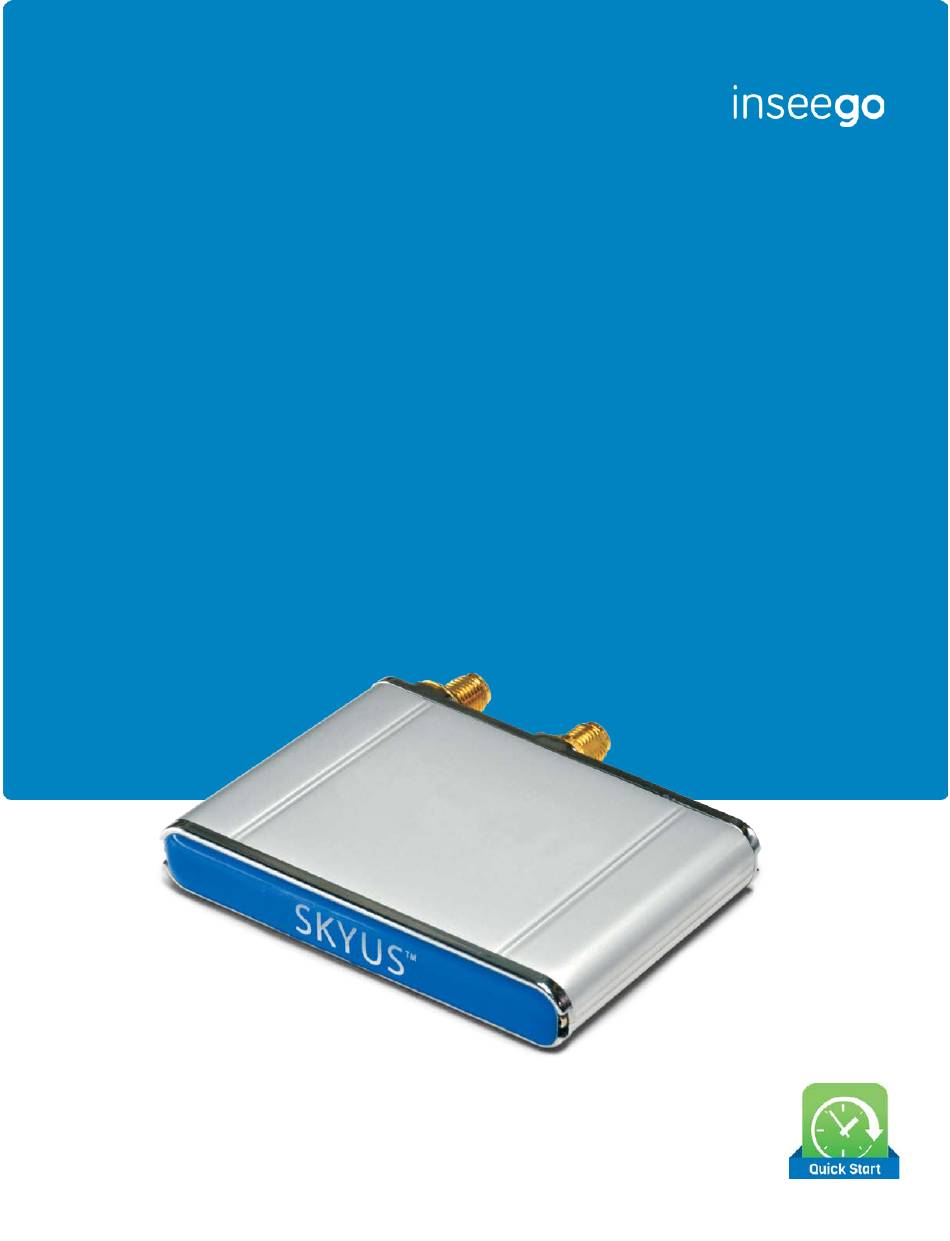

- Page 1 Skyus 3G Quick Start Guide Sprint...
- Page 2 Trademarks and Patents Inseego Corporation and the Inseego logo are trademarks of Inseego Corporation LLC. Skyus, Skyus 3G, Skyus 4G, Skyus Global, CIRA, CIRA X, CIRA X2, and Axiom are trademarks of Inseego Corporation LLC. VaraSight and the VaraSight logo are trademarks of Inseego Corporation LLC.
-
Page 3: Table Of Contents
Skyus 3G Sprint Quick Start Guide Contents Overview ..........................................3 Intended Audience ......................................3 Scope ..........................................3 Environmental Specifications ..................................3 Power Consumption ..................................... 3 LED States ......................................... 4 Installation Steps ......................................... 4 Packing List: Package Contents ................................. 4 Operating Systems ......................................5 Installation of Sierra Wireless Driver ................................ -
Page 4: Overview
Environmental Specifications The Skyus 3G is designed to operate in a minimum ambient environment of -30 °C or -22 °F and a maximum ambient environment of 60 °C or 140 °F. -
Page 5: Led States
Skyus 3G Device Cable USB 2.0 Type A Male to Mini B Male If, during inspection of package contents, you determined that you are missing an item, please contact your Inseego Service Representative. Figure 3: Package Contents: Skyus 3G Figure 4: Package Contents: USB 2.0 Type A Male to Mini B Male... -
Page 6: Operating Systems
Installation of Sierra Wireless Driver The Skyus 3G utilizes an internal Sierra Wireless radio module. Drivers for Windows based platforms are provided in binary form by Sierra Wireless and are available for download on the Inseego website. For quick connection, download the driver only package directly from Inseego. -
Page 7: Connecting The Antenna
Skyus 3G Sprint Quick Start Guide Figure 6: Sierra Wireless Installation Completed Connecting the Antenna To ensure that you are using the appropriate cellular antenna, please contact your Inseego representative to provide the proper service to your installation. Band: CDMA 1xRTT/EV-DO RevA 850/1900 MHz Connect the cellular antenna to the outermost antenna connection of the Skyus, as shown in Figure 7. -
Page 8: Activation
Please contact Inseego Support for guidance regarding the best manager for your installation. Skyus Watcher Utility Inseego Skyus Watcher is designed to manage the connection to the cellular network and provides connection watchdog, connection status reporting, and logging functionality appropriate for M2M applications where 24x7 connectivity is desired. -
Page 9: Sprint Smartview
Skyus 3G Sprint Quick Start Guide Figure 10: Skyus Watcher Utility – User Interface Skyus Watcher is available after signing an End User Licensing Agreement (EULA) with Inseego. Skyus Watcher can be downloaded from the Inseego website. The Skyus Watcher installation package is available at: inseego.com/downloads... -
Page 10: Online Library
For other documentation, see our online document library at: inseego.com/documents Return and Warranty Inseego offers a standard one-year warranty on all hardware. For returns or warranty information, call our toll free number: 800-683-4818. Further Specifications For more specifications please see the Skyus Technical Specifications sheet at inseego.com/documents. -
Page 11: Fcc Compliance
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communication. Inseego does not guarantee that interference will not occur in a particular installation.
