Quick Guide
1.4.3 The Start-up Wizard for Open Loop
Applications
The built-in "wizard" menu guides the installer through the
set-up of the frequency converter in a clear and structured
manner to setup an open loop application. An open loop
application is here an application with a start signal,
analog reference (voltage or current) and optionally also
relay signals (but no feed back signal from the process
applied).
FC
12
+24V
DIG IN
18
19
DIG IN
20
COM DIG IN
27
DIG IN
29
DIG IN
+10V
50
A IN
53
A IN
54
COM
55
42
A OUT / D OUT
45
A OUT / D OUT
01
02
03
04
05
06

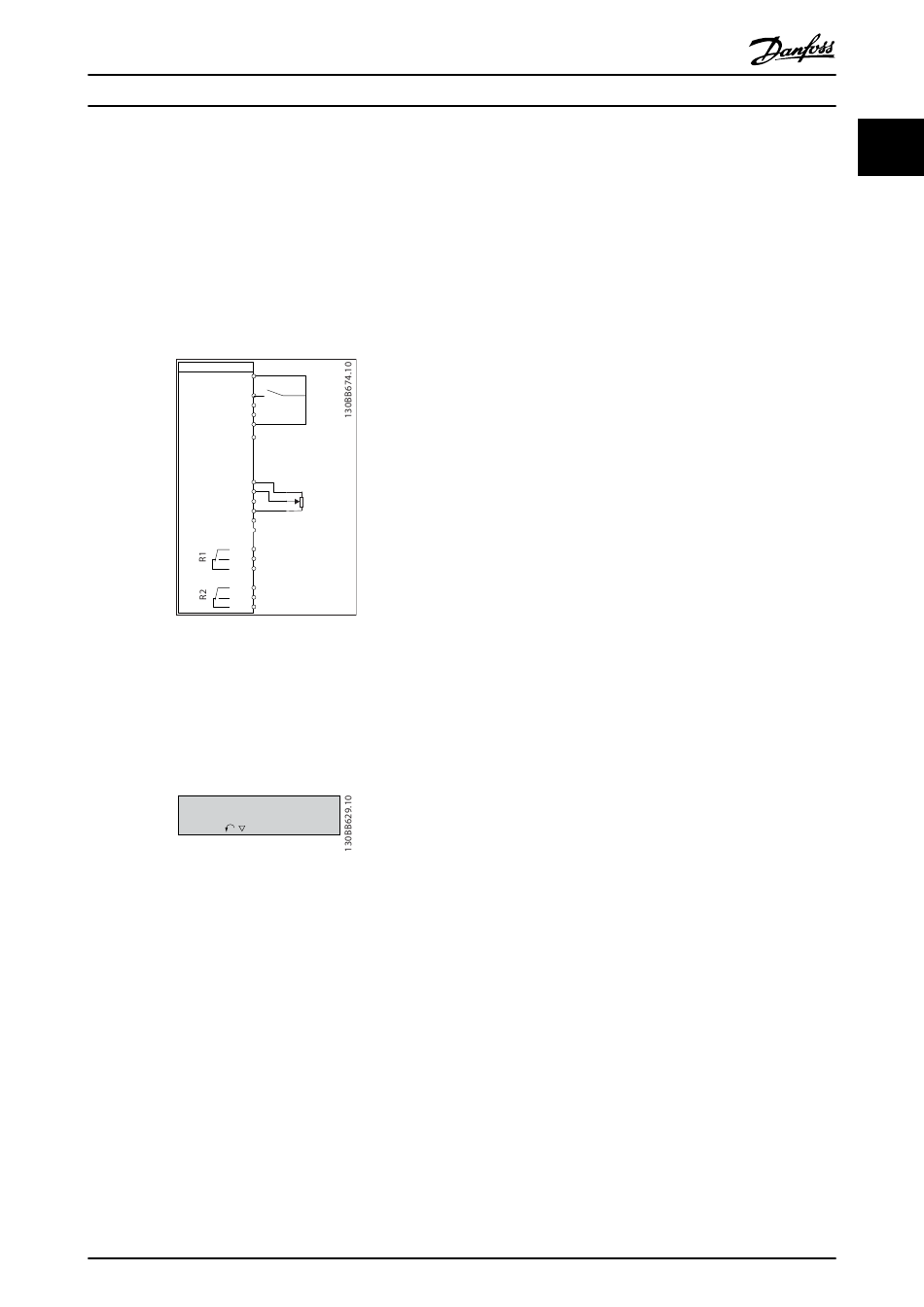

Illustration 1.12
The wizard will initially be shown after power up until any
parameter has been changed. The wizard can always be
accessed again through the quick menu. Press [OK] to start
the wizard. If [Back] is pressed, the frequency converter
returns to the status screen.
Press OK to start Wizard
Push Back to skip it
Setup 1
Illustration 1.13
®
VLT HVAC Basic Drive Cascade Controller Quick Guide
Start
+
Reference
-
0-10V
®
MG18F402 - VLT is a registered Danfoss trademark
1 1
