System Specifications

Prefix "W" "Controller Series"
Watts Controller Type
B: Controller B
C: Controller C
D: Controller D

Controller Features

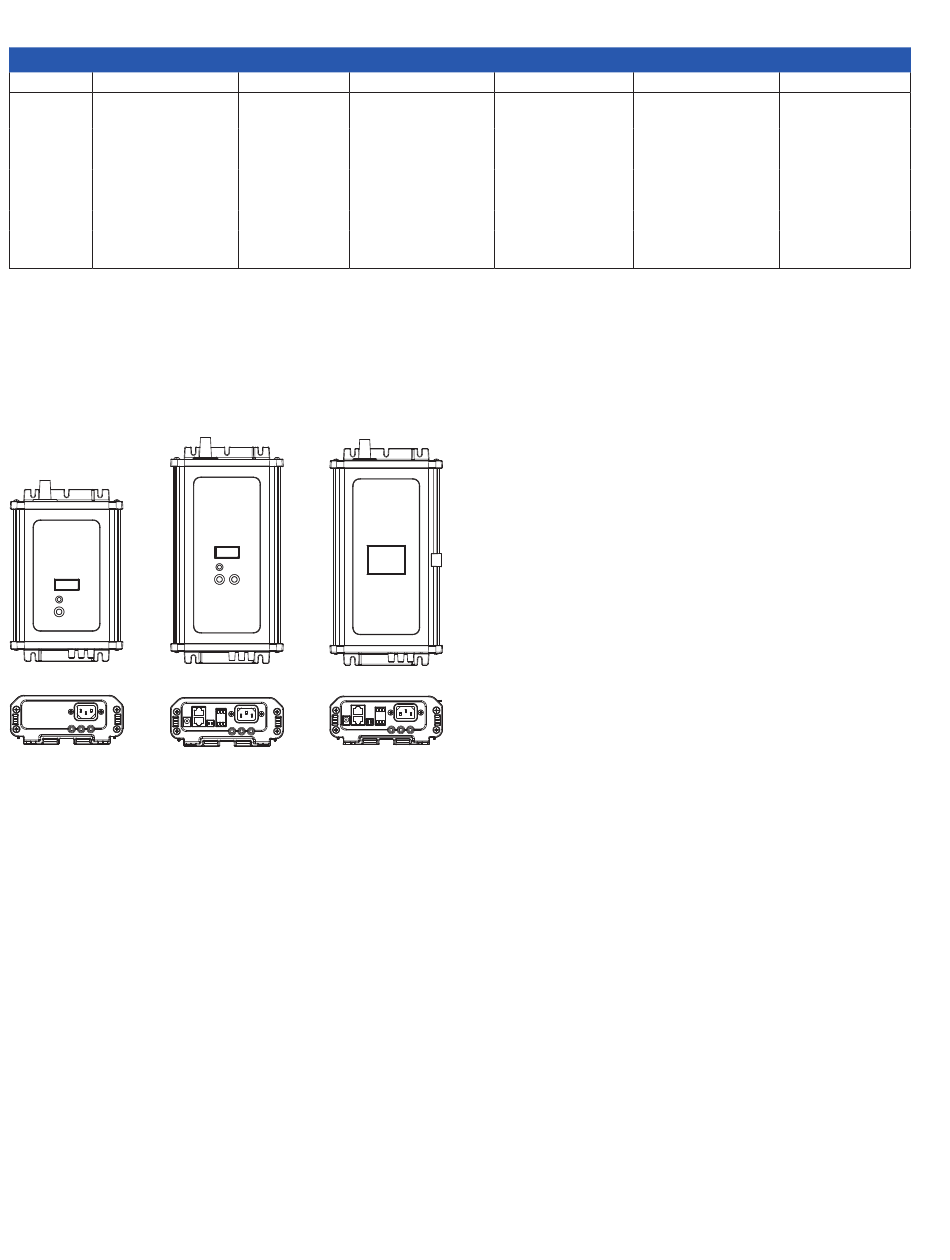

Three different controllers are available on various SmartStream
UV systems. The controllers are identified as "B" "C" or "D" series.
Each controller has unique features and are outlined as follows:
Model B
SmartStream UV System Part Number Identification Key
™
"GPM" "Connection Type"
GPM of System Connection Port
(3-Digits) Types:
A: NPT
B: BSP-Tapered
Model C Model D
"Pipe Size"
Pipe Size
B: 3/8"
C: 1/2"
D: 3/4"
E: 1"
F: 3/4" Female X 1"
Male Combination
Fitting
G: 1" Female X 1 1/2"
Male Combination
Fitting
B- Basic controller with lamp dimming, flow switch, lamp out au-
™
dible alarm, multicolor LED system status indicator, glow cap lamp
indicator, lamp life timer with 3 digit LED display, radio frequency
communication to lamp to verify correct lamp and remaining life of
the lamp. Lamp life timer resets when a new lamp is inserted.
B Series controllers are certified by the Federal Communications
Commission (FCC) listed under identification number
FCC ID: 2AFJT-SMARTSTREAM-B and Industry Canada (IC) listed
under identification number IC: 20623-SMARTSTRMB.
C- All features of the of the B controller plus alarm output for sole-
noid valve, UV sensor input, 4-20 milliamp output for UV Intensity
(When UV Sensor is used).
C Series controllers are certified by the Federal Communications
Commission (FCC) listed under identification number
FCC ID: 2AFJT-SMARTSTREAM and Industry Canada (IC) listed
under identification number IC: 20623-SMARTSTREAM.
D- All features of the C controller. The display changes from a 3
digit LED display to a graphic touch screen. Total system hours are
displayed along with key operational data.
D Series controllers are certified by the Federal Communications
Commission (FCC) listed under identification number
FCC ID: 2AFJT-SMARTSTREAM and Industry Canada (IC) listed
under IC: 20623-SMARTSTREAM.
4
"Plug" "Accessories"
A: North American Accessories
B: European X: No Accessories
C: British U.K. (Accessories only
D: Australian available for systems
using the C and D
type controllers.)
A: UV Sensor
