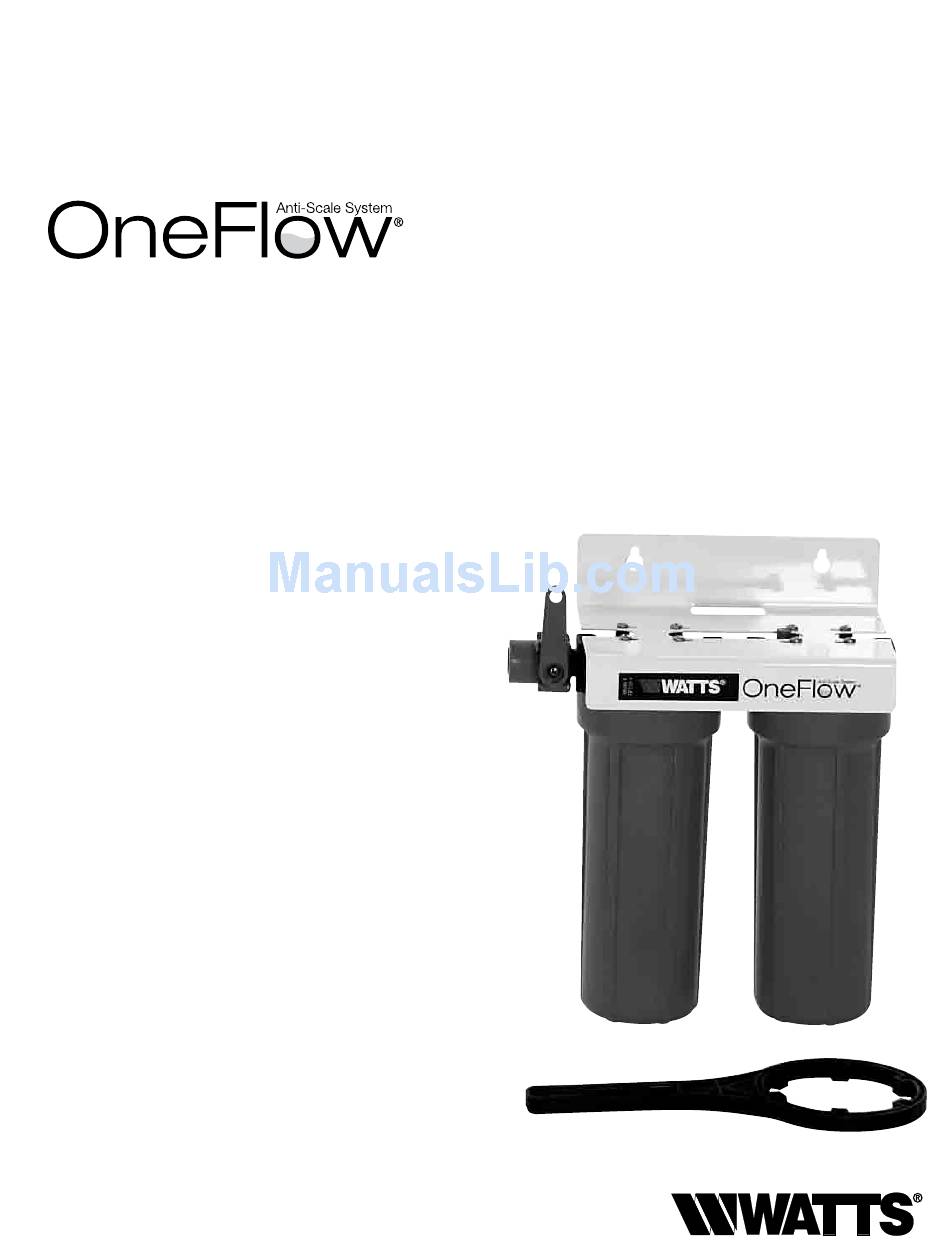

Installation, Operation and
Maintenance Manual
Model OF210-1
Chemical-Free, Salt-Free Scale Prevention
Introduction

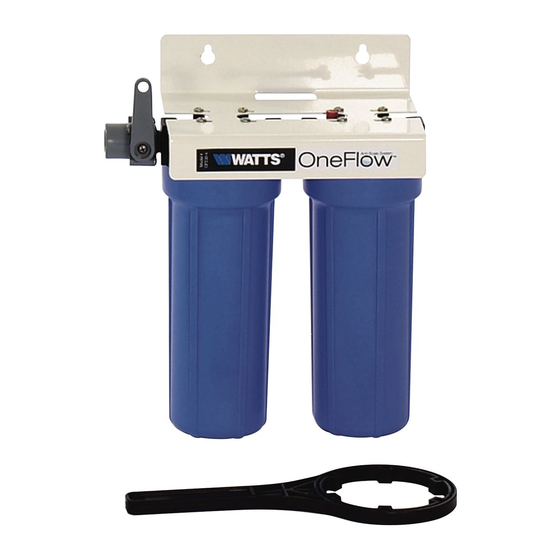

The OneFlow
System will filter and condition the tap water
®
providing optimum water characteristics for their specified
applications. The result is reduced equipment maintenance
requirements, longer equipment life and improved quality &
consistency of your products.
The OneFlow
System is built with the finest and most
®
advanced materials and each system is quality inspected
and pressure tested prior to shipment. With proper instal-
lation and routine maintenance, you will have years of
trouble-free operation.
Please refer to this manual when performing routine filter
changes. The instructions make periodic maintenance
quick and easy, and ensure you will receive maximum ben-
efit from your system.

System Specifications

Maximum Pressure: 125psi/8.6 bar
Maximum Temperature: 100°F/38°C
Min.: 35°F/2°C
Inlet/Outlet Connections:
Service Flow Rate: 0–1 gpm
Gallon Rating: OF210-1: 15,000 gals. for the OF110RC, 1 year
for the OF110RM
Capacity: OF110RC - change the cartridge at gallon rating or
every 6 months, whichever comes first.
Capacity: OF110RM cartridge does not have a grain removal
capacity, however, other contaminants present in the water will
gradually degrade the effectiveness of this cartridge. Change the
OF110RM cartridge at least once a year.
/
" FNPT
1
2
IOM-OF210-1
