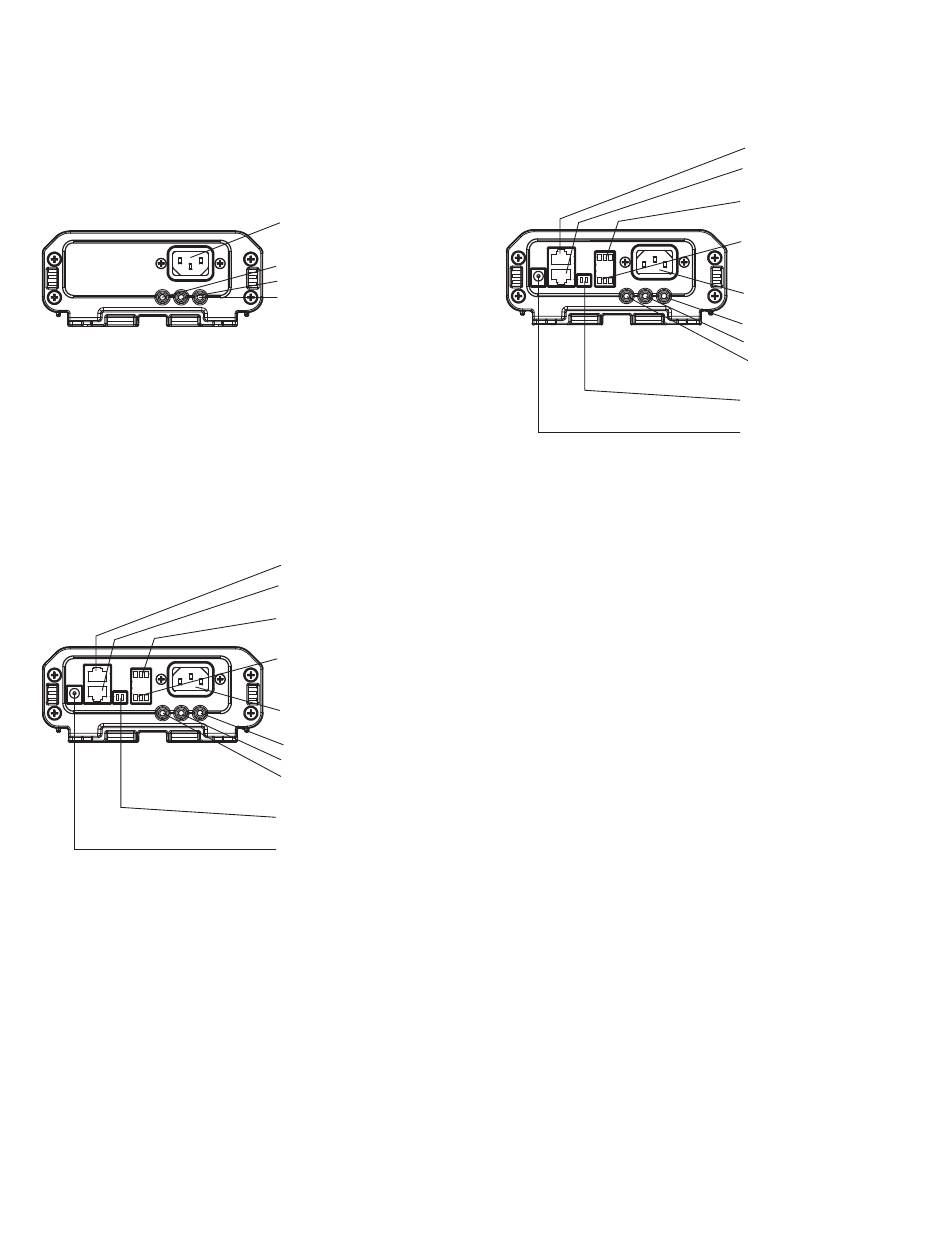

Series B, C and D Controller Wiring
Series B
Series D
Power Input AC 100-240
VAC 50/60HZ
Left- Antenna Wire
Center- Flow Switch
Right- Ground to Chassis
Top Cat 5- Future Accessories
Bottom Cat 5- UV Sensor
Alarm Relay A (Left to Right)
Normally Closed/Common/
Normally Open
Alarm Relay B (Left to Right)
Normally Closed/Common/
Normally Open
Power Input AC 100-240
VAC 50/60HZ
Right- Ground to Chassis
Center- Flow Switch
Left- Antenna Wire
4-20mA Transmitter (Left is
'Loop +', Right is 'Loop -')
Future Accessories
Series C
21
Top Cat 5- Future Accessories
Bottom Cat 5- UV Sensor
Alarm Relay A (Left to Right)
Normally Closed/Common/
Normally Open
Alarm Relay B (Left to Right)
Normally Closed/Common/
Normally Open
Power Input AC 100-240
VAC 50/60HZ
Right- Ground to Chassis
Center- Flow Switch
Left- Antenna Wire
4-20mA Transmitter (Left is
'Loop +', Right is 'Loop -')
Future Accessories
