Watts SmartStream UV WB002 Installation, Operation And Maintenance Manual page 8

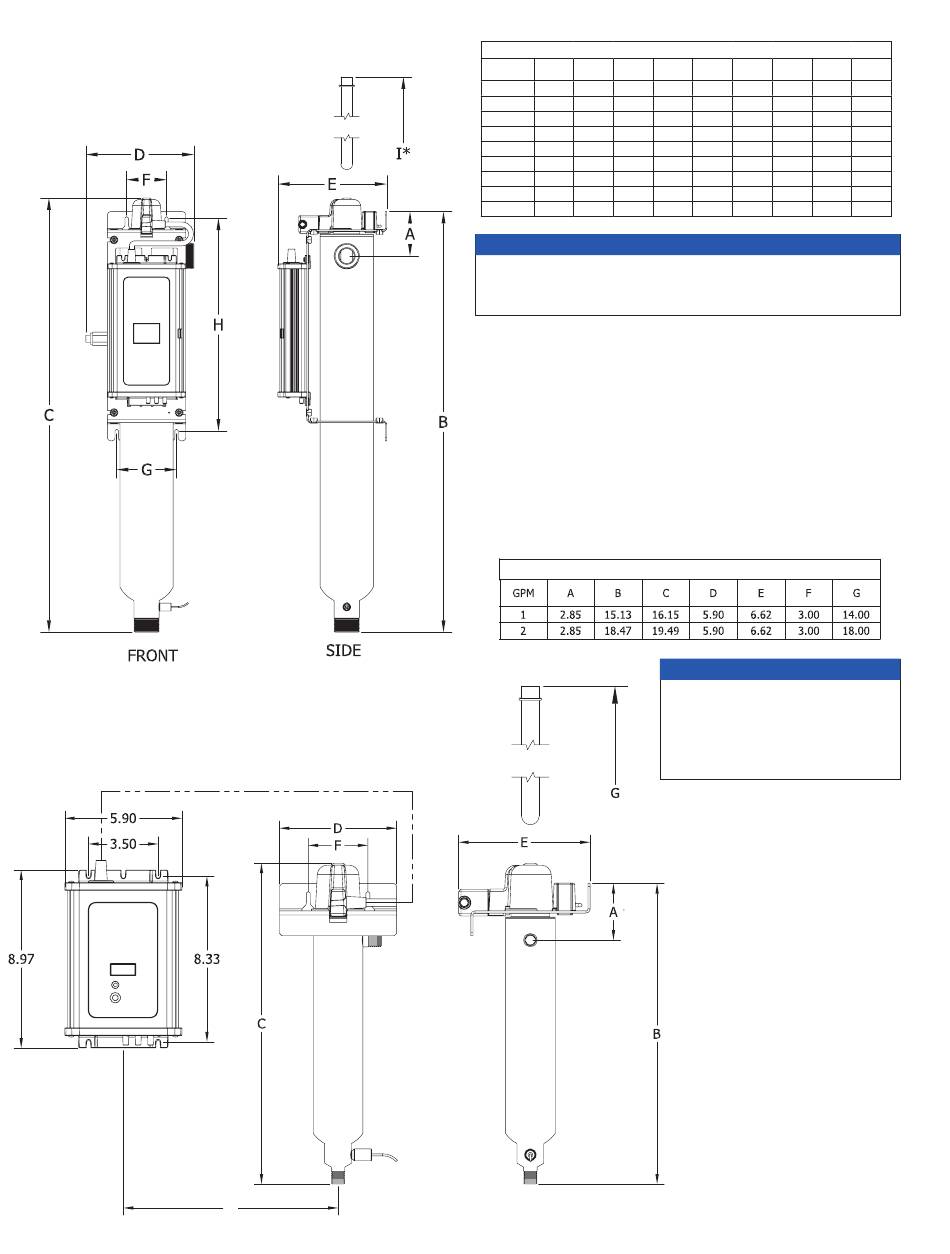

Dimensions
All dimensions are in inches.
22
Controller Mounted on Chamber- 6 to 50 GPM
GPM A B C
6 2.85 27.75 28.77
8 2.85 32.87 33.89
12 (B) 3.34 33.37 34.40
12 (C&D) 3.34 23.92 24.95
16 3.34 27.86 28.89
20 3.34 31.40 32.43
25 3.34 31.64 32.67
40 3.34 43.02 44.05
50 3.34 50.14 51.17
NOTICE
* Allow this amount of overhead clearance for
the removal of lamp and quartz sleeve.
Remote Mounted Controller- 1 and 2 GPM Systems
*
*
8
D E F G H
5.90 8.29 3.00 4.50 13.67 27.00
5.90 8.29 3.00 4.50 13.67 32.00
5.90 8.29 3.00 4.50 16.00 32.00
7.63 8.29 3.00 4.50 16.00 22.00
7.63 8.29 3.00 4.50 16.00 26.00
7.63 8.29 3.00 4.50 16.00 30.00
8.13 8.29 3.00 4.50 16.00 30.00
8.13 8.29 3.00 4.50 16.00 41.00
8.13 8.29 3.00 4.50 16.00 48.00
NOTICE
* Allow this amount of
overhead clearance for
the removal of lamp and
quartz sleeve.
I
