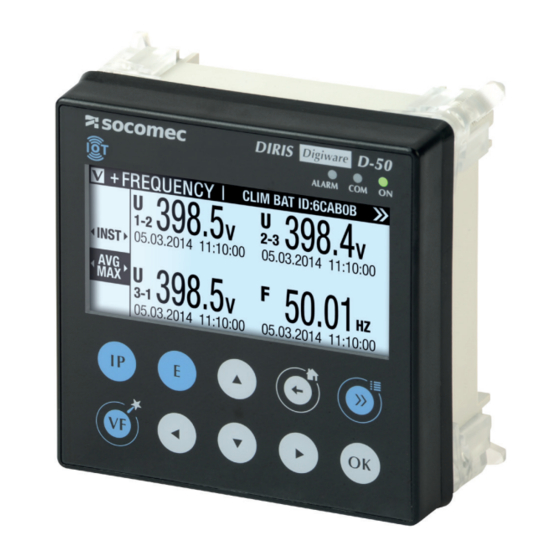

socomec DIRIS Digiware D-50 Instruction Manual
  1. Manuals
  2. Brands
  3. socomec Manuals
  4. Measuring Instruments
  5. DIRIS Digiware D-50
  6. Instruction manual

socomec DIRIS Digiware D-50 Instruction Manual

Measuring and monitoring system with associated current sensors for electrical installation
Hide thumbs Also See for DIRIS Digiware D-50:
Table of Contents

Advertisement

Quick Links

See also: User Manual
DIRIS Digiware
Measuring and monitoring system with
associated current sensors for electrical
installation
EN
N
L3
L2
L1
www.socomec.com/
en/diris-digiware

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIRIS Digiware D-50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for socomec DIRIS Digiware D-50

Summary of Contents for socomec DIRIS Digiware D-50

  • Page 1 DIRIS Digiware Measuring and monitoring system with associated current sensors for electrical installation www.socomec.com/ en/diris-digiware...

  • Page 2: Table Of Contents

    CONTENTS 1. DOCUMENTATION .............4 2.
  • Page 3 8. STATUS AND AUTO-ADDRESSING LEDS ........47 8.1.

  • Page 4: Documentation

    1. DOCUMENTATION address: www.socomec.com/en/diris-digiware...

  • Page 5: Hazards And Warnings

    2. HAZARDS AND WARNINGS professionals. SOCOMEC shall not be held responsible for failure to comply with the instructions in this manual. 2.1. Risk of electrocution, burns or explosion Ref. symbol is shown Failure to comply with the instructions of the device and this safety information can cause bodily injury, electric shock, burns, death or damage to property.

  • Page 6: Responsibility

    2.3. Responsibility of the country of installation.

  • Page 7: Preliminary Operations

    3. PRELIMINARY OPERATIONS installation.

  • Page 8: Introduction

    4. INTRODUCTION 4.1. DIRIS Digiware System connected to the Digiware bus. This approach offers the possibility of characterising a high number of loads from a in the N’VIEW energy management software. * PMD: Performance Measuring and Monitoring Device in accordance with IEC 61557-12.

  • Page 9: Range

    4.1.1. Range Control and power supply interface (24 VDC) DIRIS Digiware D DIRIS Digiware C Multipoint display System interface* DIRIS Dig * if there is no multipoint display Voltage measurement Current measurement module module DIRIS Digiware U-x DIRIS Digiware I-3x DIRIS Digiware I-4x DIRIS Digiware I-6x Voltage measurement...

  • Page 10: Principle

    4.1.2. Principle a r e i g i w I S D D I R a r e u p p i g i w e r s I S D P o w D I R a g e V o l t Multipoint display DIRIS Digiware D...
  • Page 11 D I R D I R D I R u t s I n p t p u Current sensors TE, TR or TF...

  • Page 12: Functions

    4.1.3. Functions - Voltage measurement - Multi-load current measurement - Timestamped alarms with boolean combination - Analogue and digital inputs/outputs - Auto-addressing from the gateway or the remote display.

  • Page 13: Measured Electrical Parameters

    4.1.4. Measured electrical parameters DIRIS Digiware D-40 D-50 D-70 C-31 Function Power supply Communication Digiware bus Format Width/Number of modules Part number DIRIS Digiware U U-10 U-20 U-30 Multi-measurement Power quality Alarms Thresholds History of average values Format Width/Number of modules Part number...
  • Page 14 DIRIS Digiware I I-30 I-31 I-33 I-35 I-43 I-45 I-60 I-61 Application Metering Monitoring Analysis Monitoring Analysis Metering Number of current inputs Metering Multi-measurement Alarms Thresholds Number Trends Format Width Number of modules Part number DIRIS Digiware IO IO-10 IO-20 Application Measuring / Monitoring / Analysis outputs...

  • Page 15: Dimensions

    4.1.5. Dimensions 4.1.5.1. Dimensions in/mm 0.19 I-3x 1.73 0.59 0.70 1.42 2.56 4.1.5.2. Dimensions in/mm 0.83 1.06 1.76 25.5 2.28 2.83...

  • Page 16: Presentation Of The Associated Current Sensors

    4.2. Presentation of the associated current sensors measurement range. DIRIS Digiware DIRIS Digiware DIRIS Digiware I-4x TE / TR / TF TE / TR / TF TE / TR / TF same direction. Connection cables for current sensors: Cable length (m) RJ12 connection + 100...

  • Page 17: Te Solid-Core Current Sensors

    4.2.1. TE solid-core current sensors The TE solid-core current sensors are used to set up measurement points in a new or existing installation. They are measurement chain is guaranteed. 4.2.1.1. Range TE-18 TE-18 TE-25 TE-35 TE-45 TE-55 Pitch 25 mm 35 mm 45 mm 55 mm...
  • Page 18 4.2.1.2. Dimensions TE-18 TE-25 TE-35 TE-45 TE-55 Dimensions in/mm 0.71 0.98 1.37 1.77 2.16 Pitch 1.10 x 0.79 x 1.77 0.98 x 1.28 x 2.56 1.37 x 1.28 x 2.79 1.77 x 1.28 x 3.38 2.16 x 1.28 x 3.93 LxHxD Aperture Diameter 0.33...

  • Page 19: Tr Split-Core Current Sensors

    4.2.2. TR split-core current sensors The TR split-core current sensors are used to set up measurement points in a new or existing installation without accuracy of the measurement chain is guaranteed. 4.2.2.1. Range TR-10 TR-16 TR-24 TR-36 Aperture Nominal current range In Maximum l Part number...

  • Page 20: Tf Flexible Current Sensors

    4.2.3. particularly suitable for adding measuring points in existing installations and for test campaigns. 4.2.3.1. Range TF-55 TF-120 TF-300 55 mm Loop length Nominal current range In Part number 4.2.3.2. Dimensions Ø Ø 0.71 0.71 1.49 TF-55 TF-120 TF-300 Dimensions in/mm 2.16 4.72 11.81...

  • Page 21: Adapters For 5A Sensors

    4.2.4. Adapters for 5A sensors The adapter enables the use of a standard sensor supplying a 1A or 5A current to the secondary sensor. When this 4.2.4.1. Range 5A adapter I nom. I max. Part number 4.2.4.2. Dimensions 5A adapter Dimensions in/mm 1.10 x 0.79 x 1.77 LxHxD...

  • Page 22: Installation

    5. INSTALLATION 5.1. Recommendations and safety 5.2. DIRIS Digiware mounting 5.2.1. DIRIS Digiware C, U, I-3x, I-6x, IO-x - DIN rail-mounting 0.29 or 0.59 in 5.2.2. DIRIS Digiware C, U, I-3x, I-6x, IO-x - backplate-mounting 0.19 in 5 mm Type of screw: M4 Washer diameter...

  • Page 23: Diris Digiware I-4X - Din Rail Mounting

    5.2.3. DIRIS Digiware I-4x - DIN rail mounting DIRIS Digiware I-4x mounting DIRIS Digiware I-4x dismounting Two mounting positions are possible: Position I (factory assembly): for 15mm rail. Position II: for 7.5mm rail Mounting in Position II Position I Position II 5.2.4.

  • Page 24: Installing Te Solid-Core Sensors

    5.3. Installing TE solid-core sensors 5.3.1. Mounting accessories The list of mounting accessories supplied with the sensors are listed below: Part DIN rail and plate DIN rail mounting Plate mounting Busbar mounting Pitch number mounting TE-18 18 mm TE-25 25 mm TE-35 35 mm TE-45 45 mm TE-55 55 mm...
  • Page 25 TE-90 or or...

  • Page 26: Plate Mounting

    5.3.3. Plate mounting TE-18 0.17 / 1.05 0.81 TE-25 - > TE-55 0.20...
  • Page 27 TE-90 diameter 0.20 diameter 5.2...

  • Page 28: Installing On A Cable With Clamping Collar

    5.3.4. Installing on a cable with clamping collar TE-18 TE-25 - > TE-55 TE-90...

  • Page 29: Bar Mounting

    5.3.5. Bar mounting TE-35 - > TE-55 Installation options: A+B, A+C TE-90 Tighten the jaws on both sides of the cable by apply- ing pressure. The jaws must be per- pendicular to the holding notches.
  • Page 30 5.3.6. Sensors assembly TE-18 TE-25 - > TE-55 TE-35 - > TE-55 Staggered assembly Linear assembly Staggered assembly Mounting accessories for sensor combination: Part Linear assembly Staggered assembly number These accessories must be ordered separately. 5.3.7. Sealing accessories for sensors Part Sealing case for terminal number...

  • Page 31: Installing Tr Split-Core Sensors

    5.4. Installing TR split-core sensors 5.4.1. Cable mounting 5.5. Installing TF Flexible sensors 5.5.1. Installing the casing DIN rail Plate Frame 0.19 0.29 or 0.59 1.38 Washer max.

  • Page 32: Bar Mounting

    5.5.2. Cable mounting 5.5.3. Bar mounting 5.6. Installing the 5A adapter 5A secondary current transformer...

  • Page 34: Connection

    6. CONNECTION 6.1. DIRIS Digiware connection Multipoint display DIRIS Digiware D D I R i w a D I R D i g r e U i w a D i g u p p a g e e r s e n t V o l t P o w...
  • Page 35 2x digital outputs Nm max. solid local single-point display 2x digital inputs Nm max. solid Digiware Bus Termination D I R D I R D I R u t s I n p t p u IO-10 4x digital inputs I-4x I-6x 4x current...
  • Page 36 Description of the terminals DIRIS Digiware D-40 Digiware Ethernet Digiware LIYCY-CY LIYCY-CY SLAVE MASTER 24 VDC (20 W max) 24 VDC (20 W max) DIRIS Digiware C-31 Power supply Digiware BUS Communication Line polarisation DIRIS Digiware C-32 DIRIS Digiware U DIRIS Digiware I-3x Power supply Digiware BUS...

  • Page 37: Connecting The Current Sensors

    6.2. Connecting the current sensors 6.2.1. Connection concept DIRIS Digiware DIRIS Digiware DIRIS Digiware I-3x I-4x TE / TR / TF TE / TR / TF TE / TR / TF same direction. 6.2.2. Details on the RJ12 connections for each current sensor TE-18 to TE-55 TE-90 Do not bring into contact...

  • Page 38: Connecting To The Electrical Network And Loads

    6.3. Connecting to the electrical network and loads installation. detected. 6.3.1. Network type Configurable load 1P+N 2P+N 3P+N 6.3.2. Description of the main network and load combinations Legend: 3P+N – 3CT sensors Three phase load Voltage terminal V1 V2 V3 VN Balanced load...
  • Page 39 DIRIS Digiware I-3x Three-phase + Neutral Three-phase 3P+N - 3CT 3P – 3CT V1 V2 V3 VN V1 V2 V3 VN Three-phase Three-phase 3P – 2CT & 3P – 1CT 3P – 1CT (x3) V1 V2 V3 VN V1 V2 V3 VN Two-phase Single-phase 2P –...
  • Page 40 DIRIS Digiware I-4x Three-phase + Neutral Three-phase + Neutral 3P+N – 4CT 3P+N – 3CT & 3P – 1CT V1 V2 V3 VN V1 V2 V3 VN Three-phase + Neutral 3P+N – 3CT & 1P+N – 1CT Three-phase 3P – 3CT & 3P – 1CT V1 V2 V3 VN V1 V2 V3 VN Three-phase 3P –...
  • Page 41 Two-phase + Neutral 2P+N – 2CT (x2) Two-phase2P – 1CT (x4) V1 V2 V3 VN V1 V2 V3 VN Single-phase1P+N – 1CT (x4) V1 V2 V3 VN Three-phase 3P – 3CT + 3P – 1CT (x3) V1 V2 V3 VN...
  • Page 42 Single-phase 1P+N – 1CT (x6) V1 V2 V3 VN Notes relating to connections: 3P – 2CT 3P – 1CT 6.3.3. Connection of the functional earth It is recommended that the functional earth is connected to guarantee optimum measuring accuracy and better in a neutral IT system.

  • Page 43: Digiware Bus

    7. DIGIWARE BUS 7.1. Principle Digiware Bus Digiware Bus Termination Termination Digiware Bus Display System interface U measurement I measurement Measurement module module modules module IO DIRIS Digiware I-3x DIRIS Digiware I-4x DIRIS Digiware is a system comprising the following elements: 7.1.1.

  • Page 44: Sizing Of The Power Supply

    7.1.2. Digiware Bus Termination Quantity Part number system interface module. 7.2. Sizing of the power supply module. 24VDC Modular format 7.2.1. Equipment consumption Device Power supplied (W) Power consumed (W) Power supply Cables System interface Module voltage Module current DIRIS Digiware I-3x DIRIS Digiware I-4x 1.125 Repeater...
  • Page 45 7.2.2. Calculation rules for the max. number of devices on the Digiware BUS Size with P15 power supply (ref: 4829 0120) delivering 15 W Total power = 14.62 W Size with a 24 VDC power supply delivering a maximum of 20 W Total power = 19.82 W 7.2.3.
  • Page 46 Digiware Bus Digiware Bus DIRIS I-3x I-3x Digiware D I-4x I-4x supply supply DIRIS Digiware C-32 24VDC...

  • Page 47: Status And Auto-Addressing Leds

    8. STATUS AND AUTO-ADDRESSING LEDS 8.1. Status LEDs The addressing button is used to automatically assign a Modbus address from the gateway. Power supply Alarm Metrology Addressing button LED state Fixed Pulse In operation 1 second to start-up Modbus control to identify the At least one system alarm is 1 second to start-up ALARM...
  • Page 48 Description of mode 1 Flashing LED LED continuously on Gateway DIRIS G DIRIS Digiware Press 3 sec. Press Press 3 sec. 3 sec. Press 3 sec. addressing. exchange of data is possible at this time.

  • Page 49: Communication

    9. COMMUNICATION 9.1. General information Example of architecture in combination with the DIRIS G gateway: WEBVIEW Ethernet Digiware Bus Digiware Bus Termination DIRIS G DIRIS B DIRIS DIRIS B 9.2. out in the paragraphs below. Ethernet Digiware Bus Digiware Bus Termination DIRIS G DIRIS B...
  • Page 50 9.2.1. A termination must be added at the end of the Digiware bus. Ethernet Digiware Bus Digiware Bus Termination DIRIS DIRIS B DIRIS G 9.2.2. A termination must be added at the end of the Digiware bus. Ethernet Digiware Bus Digiware Bus Digiware Bus Termination...

  • Page 51: Communication Tables

    Digiware bus. A termination must be added at the end of the Digiware bus. Digiware Bus Digiware Bus Termination 9.3. Communication tables The communication tables and associated explanations can be found on the documentations page for DIRIS Digiware on the www.socomec.com/en/diris-digiware...

  • Page 52: Configuration

    10. CONFIGURATION 10.1. 10.1.1. Connection modes Easy DIRIS Digiware I Easy Digiware Bus DIRIS DIRIS G Easy Digiware Bus Digiware Bus DIRIS...
  • Page 53 Easy Ethernet Digiware Bus DIRIS DIRIS G Easy Ethernet Digiware Bus Digiware Bus DIRIS...
  • Page 54 10.1.2. —> Loads —> Measurement method —> Values to be stored —> Alarms — For each setting selected (2). transformer is used.
  • Page 55 Calculation method Alarms more details.

  • Page 56: Configuration From The Diris Digiware D Remote Display

    10.1.3. Synchronising devices The screen below shows how to set the time from the DIRIS G gateway. The time setting is done from an SNTP schedule. 10.2. 10.2.1. Connection mode Bus) Digiware Bus Display DIRIS DIRIS Digiware I Refer to the manual for the DIRIS Digiware D display for more details.

  • Page 57: Alarms

    11. ALARMS 11.1. Alarms upon events 11.1.1. Electrical parameters Selection of the hysteresis and high/low threshold. Setting a time delay at the start and end of the alarm.

  • Page 58: Digital Inputs

    11.1.2. Voltage and current unbalance (in a three-phase network) Selection of the hysteresis and high/low threshold Setting a time delay at the start and end of the alarm 11.1.3. EN 50160 voltage quality events 11.1.4. Consumption 11.1.5. Digital inputs Alarm upon change of status of a digital input Setting a time delay at the start and end of the alarm...

  • Page 59: System Alarms

    11.1.6. Combination of alarms 11.2. System alarms 11.2.1. Current/voltage connection 11.2.2. Incorrect direction of rotation (three-phase network) 11.2.3. Faulty current sensor Alarm for detecting the absence of a current sensor 11.3. Setting up alarms software. 11.3.1. ALARM LED on front 11.3.2.

  • Page 60: Display And Webview

    11.3.4. RS485 Modbus 11.3.5. Display and WEBVIEW Information on the alarms with timestamping...

  • Page 61: Features

    12. FEATURES 12.1. 12.1.1. Mechanical features DIN-rail mounting module and base Front panel protection index 12.1.2. DIRIS Digiware C-31 P15 power supply 12.1.3. Measuring characteristics Measurement accuracy Accuracy PMD DD classification in Measuring energy and power Power factor measurement Accuracy Voltage measurement - DIRIS Digiware U Single-phase/ Two-phase / Two-phase with neutral / Three-phase / Three- phase with neutral...
  • Page 62 Current measurement - DIRIS Digiware I Number of current inputs Associated current sensors Accuracy of current measurement Bus with bus termination for the last module Inputs - DIRIS Digiware I-4x Number of inputs Type / Power supply Input functions Outputs - DIRIS Digiware I-4x Number of outputs Relay type Function...
  • Page 63 RS485 2 - 3 half duplex wires Protocol Baudrate Function Location Protocol Function Location 12.1.5. Ambient operating temperature Storage temperature Vibration Impact resistance 12.1.6. Immunity to electrostatic discharges Immunity to electrical fast transients/bursts Immunity to conducted disturbances Radiated emissions 12.1.7. Standards and safety Safety Insulation 12.1.8.

  • Page 64: Te, Tr And Tf Sensor Characteristics

    12.2. TE, TR and TF sensor characteristics TE - solid-core sensor TE-18 to TE-55 Model TE-18 TE-18 TE-25 TE-35 TE-45 TE-55 Measurement category Protection degree Storage temperature Altitude TE - solid-core sensor TE-90 Model TE-90 Nominal current range In Max. current Weight Measurement category Protection degree...

  • Page 65: Diris D-30 And Diris Digiware D-40/D-50/D-70 - Technical Data

    Measurement category Protection degree Storage temperature Altitude TF - Flexible current sensor Model TF-55 TF-120 TF-300 Measurement category Protection degree Storage temperature Altitude 12.3. 12.3.1. Mechanical features Type of screen Screen resolution Front panel protection index 12.3.2. Type of screen Local single-point screen for DIRIS Digiware I-4x Self-powered and data...
  • Page 66 12.3.3. Type of screen Multipoint remote screen 12.3.4. Type of screen Multipoint remote screen 12.3.5. Type of screen Multipoint remote screen Gateway function: SNTP protocol Sends email notifications from the display. 12.3.6. Power supply Power consumption 12.3.7. Storage temperature Installation category - degree of pollution...

  • Page 67: Performance Classes

    13. PERFORMANCE CLASSES Temperature energy 1 in combination with TR split-core sensors 13.1. Overall operating performance class Measurement Symbol Function range sensors* (TE, TR, TF) in compliance with IEC 61557-12 1 with TR sensors 1 with TR sensors 1 with TR sensors 1 with TR sensors 1 with TR sensors 1 with TE or TF sensors...

  • Page 68: Evaluation Of The Power Supply Quality

    13.2. Evaluation of the power supply quality Overall operating performance class Measurement Symbol Function range sensors (TE, TR, TF) in compliance with IEC 61557-12 1 with TR sensors 1 with solid-core TE or TF sensors 2 with TR sensors Voltage phase and amplitude unbalance (Lp-Lg or Voltage harmonics...
  • Page 70 CORPORATE HQ CONTACT: SOCOMEC SAS 1-4 RUE DE WESTHOUSE 67235 BENFELD, FRANCE www.socomec.com 542 875 E...
