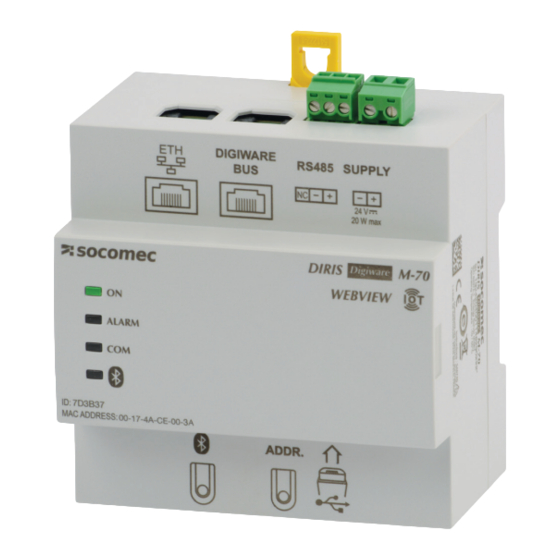

DIRIS Digiware
M-50/M-70 & D-50/D-70
BACnet Protocol Implementation
Conformance Statement
EN
www.socomec.com/
en/diris-digiware

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIRIS Digiware M-50 and is the answer not in the manual?

Questions and answers

Related Manuals for socomec DIRIS Digiware M-50

Summary of Contents for socomec DIRIS Digiware M-50

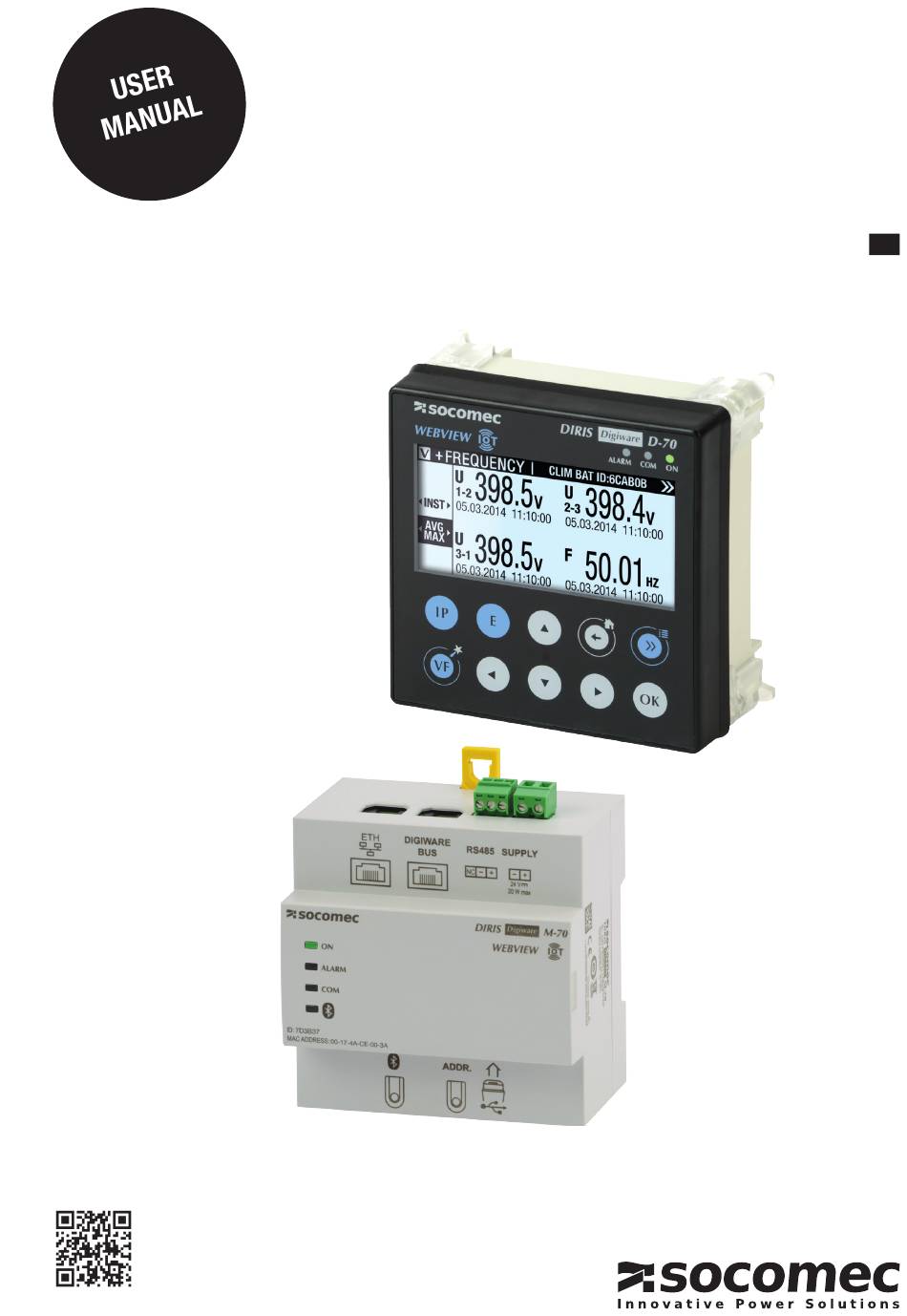

  • Page 1 DIRIS Digiware M-50/M-70 & D-50/D-70 BACnet Protocol Implementation Conformance Statement www.socomec.com/ en/diris-digiware...

  • Page 2: Table Of Contents

    . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 BACNET PROTOCOL IMPLEMENTATION CONFORMANCE STATEMENT - 546539C - SOCOMEC...

  • Page 3: Annex A - Protocol Implementation Conformance Statement (Normative)

    Application Software Version: 2.3.17 Firmware Revision: 0.8.3 BACnet Protocol Revision: 1.12 1.1. Product Description BACnet gateway for Socomec devices supported by the M-50/M-70 gateways or D-50/D-70 displays. 1.2. BACnet Standardized Device Profile (Annex L) BACnet Operator Workstation (B-OWS) BACnet Advanced Operator Workstation (B-AWS)

  • Page 4: Standard Object Types Supported

    6) List of proprietary properties and for each its property identifier, datatype, and meaning 7) List of any property range restrictions Socomec DIRIS Digiware M-50/M-70 gateways and D-50/D-70 displays support the following object types: Device, Analog Input, Binary Input and Binary Output.
  • Page 5 Value of the scale to apply Max_Pres_Value Real Max Present Value reached Maximum_Value_Timestamp Real Timestamp of Max Present Value Min_Pres_Value Real Min Present Value reached Minimum_Value_Timestamp Real Timestamp of Min Present Value Average_Value Real Average value BACNET PROTOCOL IMPLEMENTATION CONFORMANCE STATEMENT - 546539C - SOCOMEC...
  • Page 6 (8): See Property usage in column “Multifluid” of table “Analog Input Measurement List” (9): See Property usage in column “Min/Max Reset” of table “Analog Input Measurement List” (10): See Property usage in table “Transfer switch” BACNET PROTOCOL IMPLEMENTATION CONFORMANCE STATEMENT - 546539C - SOCOMEC...

  • Page 7: Analog Input Measurement List

    TotalPowerFactor Total Power Factor Signed TotalPowerFactorType Total Power Factor Type Unsigned PowerActiveP1 P1 Active Power Signed PowerActiveP2 P2 Active Power Signed PowerActiveP3 P3 Active Power Signed PowerRActiveQ1 Q1 Reactive Power Signed BACNET PROTOCOL IMPLEMENTATION CONFORMANCE STATEMENT - 546539C - SOCOMEC...
  • Page 8 THD I3 Unsigned THD_In THD In Unsigned THD_V1 THD V1 Unsigned THD_V2 THD V2 Unsigned THD_V3 THD V3 Unsigned THD_U12 THD U12 Unsigned THD_U23 THD U23 Unsigned THD_U31 THD U31 Unsigned BACNET PROTOCOL IMPLEMENTATION CONFORMANCE STATEMENT - 546539C - SOCOMEC...
  • Page 9 AnaOut Analog Output Signed Transfer Switch table: Index Object Name Object Description Unit Type Position Transfer Switch Position Unsigned StateSource_1 State of Source 1 Unsigned StateSource_2 State of Source 2 Unsigned BACNET PROTOCOL IMPLEMENTATION CONFORMANCE STATEMENT - 546539C - SOCOMEC...

  • Page 10: Binary Input Object

    For example, Binary Output with OID 200 reflects output 2 of corresponding device. The Present Property is writable directly. 1.5.5.1. Optional Properties Property Identifier Type Description Write Description String Measurement point Description 1.5.5.2. Proprietary Properties None BACNET PROTOCOL IMPLEMENTATION CONFORMANCE STATEMENT - 546539C - SOCOMEC...

  • Page 11: Data Link Layer Options

    The gateway and its products are grouped behind a Network number. This Network number is initialized with some information coming from the Socomec Network Id of the Product. It can be changed by the user using the Socomec Easy Configuration Tool. The OID of the gateway itself is 100. Any equipment connected to the gateway is given an OID ranging from 100 to 247, according to its Modbus Address (OID = 100 + ModbusAddress).
  • Page 12 CORPORATE HQ CONTACT: SOCOMEC SAS 1-4 RUE DE WESTHOUSE 67235 BENFELD, FRANCE www.socomec.com 546539C...
