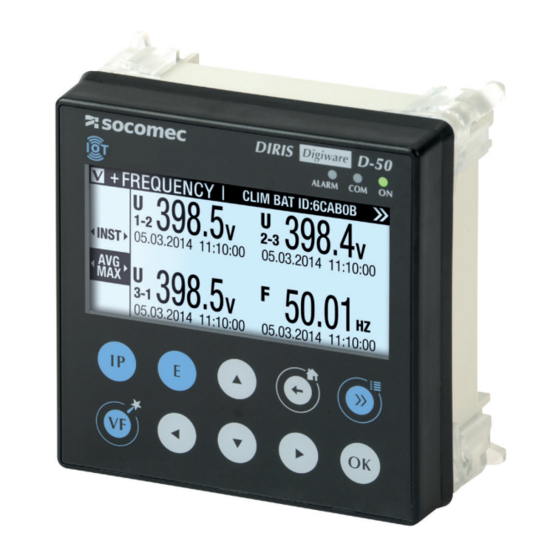

socomec DIRIS Digiware D-50 Instruction Manual

Control and power supply interface
Hide thumbs Also See for DIRIS Digiware D-50:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual , User Manual
DIRIS Digiware
D-50
&
D-70
v2
Control and power supply interface
EN
www.socomec.com/
en/diris-d

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIRIS Digiware D-50 and is the answer not in the manual?

Questions and answers

Related Manuals for socomec DIRIS Digiware D-50

Summary of Contents for socomec DIRIS Digiware D-50

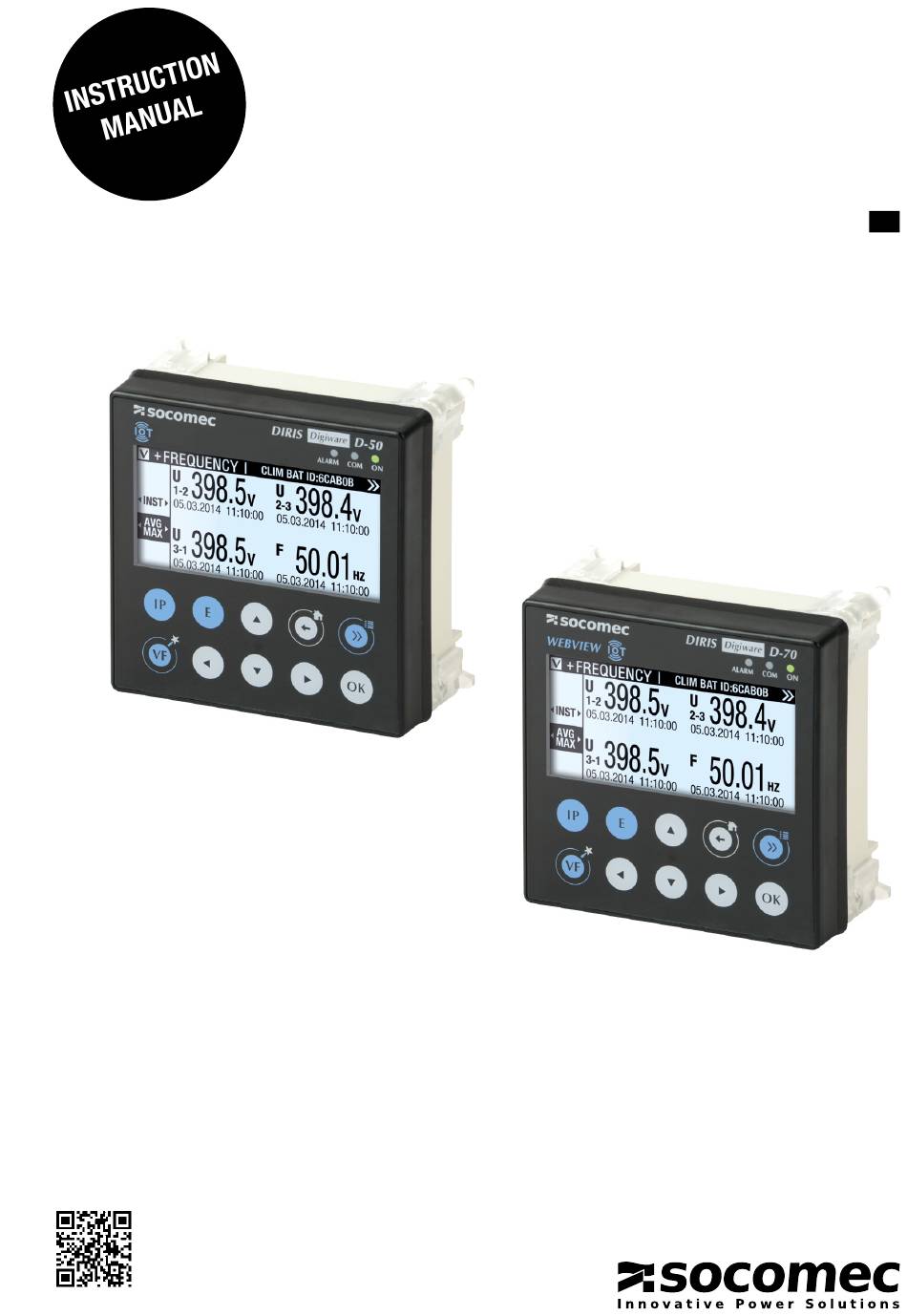

  • Page 1 DIRIS Digiware D-50 & D-70 Control and power supply interface www.socomec.com/ en/diris-d...

  • Page 2: Table Of Contents

    6.1. DIRIS Digiware D-50 - wiring ........
  • Page 3 C.2.2. FTP planning configuration ......C.2.3. Understanding the exported .csv file in EMS mode ... DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 4: Documentation

    1. DOCUMENTATION All documentation on DIRIS Digiware D-50 and D-70 is available on the SOCOMEC website: www.socomec.com/en/diris-d DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 5: Hazards And Warnings

    • The auxiliary power supply voltage indicated on the product is observed: 24 VDC ± 10%. • Use 230 VAC / 24 VDC SOCOMEC power supply (P15 15W 4829 0120) or use a 1 A 24 VDC safety fuse. Failure to respect these precautions could cause damage to the device.

  • Page 6: Preliminary Operations

    • The device has not been damaged during transportation • The device reference number conforms to your order • The packaging includes the device fitted with removable terminal blocks and a Quick start guide. DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 7: Introduction

    Energy Monitoring 4.2. Introduction to DIRIS Digiware D DIRIS Digiware D-50 and D-70 are system displays and act as the unique point of access to measurements from DIRIS Digiware meters. They can also display measurements from other SOCOMEC meters and measuring devices: COUNTIS, DIRIS A, DIRIS B.

  • Page 8: Introduction To Diris Digiware

    4.2.1. Introduction to DIRIS Digiware D-50 A DIRIS Digiware D-50 display is a master device on the RS485 bus and master on the DIRIS Digiware bus. It is used as an Ethernet gateway. The Ethernet portis used to: • Communicate over Ethernet in ModbusTCP (max. 32 simultaneous connections) data from meters and measuring devices connected to its Digiware and RS485 ports.

  • Page 9: Introduction To Diris Digiware

    (via Easy Config). Config). Load curves are then The logs are then automatically downloaded automatically downloaded from the meter’s cache from the meter’s cache memory to the D-70. memory to the D-70. DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...
  • Page 10 Ethernet Digiware bus Digiware Bus Termination RS485 120 Ω 120 Ω DIRIS DIRIS B DIRIS Digiware D-70 COUNTIS DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 11: Touchscreens

    - On: device working OK. 4.5. Navigation LOADS MEASUREMENTS VOLTAGES LOAD PHASE-NEUTRAL INPUTS/OUTPUTS CURRENTS PHASE-PHASE LOAD PROTECTION POWERS NET. FREQUENCY EVENTS . . . PARAMETERS ..Press for 3 sec. DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 12: Menu Structure

    Restore a product factory settings • Products soft version • IP address • MAC address • About Serial number • Software version • Reboot • Note: the menus available depend on the product features. DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 13: Dimensions

    4.7. Dimensions Dimensions in/mm Door cut-out must be 92x92mm. DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 14: Mounting

    5.1. Recommendations and safety Refer to the safety instructions (section “2. Hazards and warnings”, page 5) 5.2. Back-plate mounting DIRIS Digiware D-50 and D-70 are panel-mounted (cut-out: 92x92mm). The display is secured with clips. DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 15: Din Rail Mounting

    5.3. DIN rail mounting DIRIS Digiware D-50 and D-70 can also be mounted on a DIN rail using a dedicated accessory (4829 0230) sold separately. DIN rail mouting kit (separate part number: 4829 0230) STEP 1 1Nm max STEP 2...

  • Page 16: Connection

    DIRIS Digiware D-70 RS485 (20 W max) 120 Ω (*) The use of a 1A / 24 VDC fuse protection is recommended if the 24 VDC power supply is not provided by Socomec. DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 17: Configuration

    7. CONFIGURATION From the Socomec start-up sreen, press “OK” to enter the navigation menu: Select the "PARAMETERS" menu by using the navigation key "DOWN ARROW" 3x and confirm with "OK”: HOME LOADS MEASURES INPUTS/OUTPUTS PROTECTION EVENTS PARAMETERS Enter the password "100" using the arrow pad (4 arrow keys) and confirm with "OK":...

  • Page 18: Display-Specific Settings

    • ETHERNET COMMUNICATION: to set the display's IP address • SET REMOTE DEVICE DATE/TIME: to set the date and time • CHANGE PASSWORD: to change the password to access the settings menu (default: "100") DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 19: Language

    1BIT PARITY: NONE ADDRESS: 7.1.4. Ethernet communication You can configure the Ethernet settings of DIRIS Digiware D-50 / D-70 displays: • DHCP (IP address dynamically assigned by the Ethernet network) ENABLED/DISABLED • IP address • Subnet mask • LAN gateway...

  • Page 20: Setting The Date/Time On The Remote Product

    • Manually by entering the year, month, day, hour, minute, second • Automatically (like a computer) by SNTP server If the DIRIS Digiware D-50/D-70 is synchronised by SNTP, it will broadcast and synchronise the date and time of all downstream devices.

  • Page 21: Detecting And Addressing

    U-30 I-30 I-30 I-30 Go to “PARAMETERS” / “AUTODETECT SERIAL DEVICES”: With this function you can detect all the products connected to the DIRIS Digiware D-50/D-70 via the Digiware and/or RS485 buses. PARAMETERS DISPLAY CONFIGURE A DEVICE AUTODETECT SERIAL DEVICES...
  • Page 22 (two in this example). In this case, assign them individual and unique addresses. AUTODETECT ADDRESS CONFLICTS DETECTED! PRESS THE AUTOADDRESS BUTTON ON ALL NON-BLINKING DEVICES TO SOLVE THE CON- FLICTS. DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...
  • Page 23 FOUND DEVICES ADDR CONFLICTS START The display now shows the number of detected products increase and the number of conflicts decrease to reach zero once all products have a unique address. DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...
  • Page 24 CONFIGURE A DEVICE AUTODETECT SERIAL DEVICES LIST PRODUCTS ADD NEW DEVICE … Example: LOAD1 LIST PROD. Diris U30 ID:545434 @003 Diris I30 ID:F0C1D2 @004 Diris I30 ID:F0C1D3 @005 Diris I30 ID:F0C1D4 @006 DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 25: Configuring The Diris Digiware System

    • Network: setting the type of voltage network: single-phase (1P+N), two-phase (2P), three-phase without neutral (3P), three-phase with neutral (3P+N). • Load: configuring the loads/circuits measured. You can, for example, measure three-phase and single-phase loads connected to a three-phase electrical network. DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...
  • Page 26 SELECT PROD.. Diris I30 ID:FOC1D2 @004 Diris U30 ID:546434 @006 Diris I30 ID:FOC1D2 SELECT PROD. LOADS With DIRIS B PMDs, network and loads settings are accessible from the DIRIS B altogether. DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 27: Network Configuration

    • Phase rotation: V1-V2-V3 (Direct) or V1-V3-V2 (reverse). Diris U30 ID:546434 PARAMETERS NETWORK TYPE 00400 NOMINAL FREQUENCY 3P + N NOMINAL VOLTAGE (V) 50HZ PHASE ROTATION V1-V2-V3 PRESS OK TO CONFIRM DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 28: Configuring Loads

    The current sensor connected to the current 3 input measures the current of phase 1 (V1) Diris I30 ID:FOC1D2 LOAD INPUT 250 A 250 A 250 A +/DIRECT +/DIRECT +/DIRECT LINE V LOAD TYPE 3P+N_3CT 3P+N_3CT 3P+N_3CT PRESS OK TO ENTER SETTINGS DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...
  • Page 29 Following the example above, to change the settings, press "OK". Diris I30 ID:FOC1D2 LOAD INPUT 250 A 250 A 250 A +/DIRECT +/DIRECT +/DIRECT LINE V LOAD TYPE 3P+N_3CT 3P+N_3CT 3P+N_3CT PRESS OK TO ENTER SETTINGS DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...
  • Page 30 • CT -> Indicates the rating of the current sensor used. Click on “DETECT” to automatically detect the rating. After 2 seconds, the rating is displayed. Complete the process by selecting "OK" then "OK" again Diris I30 ID:FOC1D2 LINE SETTINGS +/DIRECT V LINE 0600 DETECT DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...
  • Page 31 When all the circuits/loads are configured (maximum 3 on one DIRIS Digiware I-30), apply your settings by selecting "SEND SETTINGS" and click "OK". Diris I30 ID:FOC1D2 LOAD … CT SETTINGS CT SETTINGS SEND SETTINGS DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 32: Snmp - Bacnet - Ftp - Smtp Protocols

    • FTPS: Secure or non-secure FTP: automatic export of measurement logs (DIRIS Digiware D-70 only) Bacnet IP, SNMP, SMTP and FTP settings are not accessible via the onscreen interface of the DIRIS Digiware D-50 / D-70 and are only available on a PC: •...

  • Page 33: Use

    You can view active and finished alarms from the "EVENTS" menu. If there is an active alarm, the "ALARM" LED of the D-50/D-70 display is on. HOME LOADS MEASURES INPUTS/OUTPUTS PROTECTION EVENTS PARAMETERS DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 34: Diris Digiware D-50/D-70 Technical Characteristics

    -40°C … +70°C (IEC 60068-2-1 / IEC 60068-2-2) Operating temperature -10°C … +55°C (IEC 60068-2-1 / EN/IEC 60068-2-2) Humidity 55°C / 90% RH (IEC 60068-2-30) Installation category - degree of pollution CAT III, 2 DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 35: Emc Characteristics

    Surge immunity (Differential mode) IEC 61000-4-5 Conducted RF immunity IEC 61000-4-6 Power magnetic field immunity IEC 61000-4-8 IV\400A/m Dips immunity IEC 61000-4-11 Conducted emissions CISPR11 Radiated emissions CISPR11 Passed Gr:1 – Class B DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 36: Annex.a. Snmp Communication With The Diris Digiware

    D-50 / D-70 is an agent SNMP v1, v2, v3 which responds to queries from managers (also called management stations or supervisors). The D-50 / D-70 allows access through SNMP of measurement data from SOCOMEC slaves connected via the RS485 bus or the Digiware bus.

  • Page 37: Snmp Versions Supported

    Both passwords have to be entered in the Agent (DIRIS Digiware D-50 / D-70) and the Manager and must be identical. A matching Read Community allows the Get functions to be executed on the agent.

  • Page 38: Snmp Ports

    U-30 I-30 I-30 A.10. Retrieving data using the DIRIS Digiware D-50 / D-70 MIB file The DIRIS Digiware D-50 / D-70 is compliant with MIB-II defined by the MIB standard RFC 1213 which defines the following structure: Root iso (1)
  • Page 39 Entry (always = 1) Service ID 10000 This OID is associated with the multiple devices connected downstream the DIRIS Digiware D-50 / D-70. To identify those multiple devices, the Modbus address and the load number are added to the end of the OID.

  • Page 40: Snmp Configuration Via Easyconfig

    “private”. It allows a manager to write (ex: position of a Digital output) to a device connected to the DIRIS Digiware D-50 / D-70. Trap Community V1: The Trap community string allows the manager to receive notifications in case of an event and/or alarm.
  • Page 41 Trap 2 server port: enter the port used to send traps for the 2nd host station. Trap report frequency: enter the time after which a trap reminder will be sent for active alarms. By default, it is set to 60min. DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 42: Annex.b. Bacnet Communication With The Diris Digiware

    ANNEX.B. BACNET COMMUNICATION WITH THE DIRIS DIGIWARE D-50 / D-70 The DIRIS Digiware D-50 / D-70 supports the BACnet IP protocol, once enabled from the Easy Config software (see 7.1.8.2). It acts as a BACnet IP gateway to all devices compatible and connected downstream via RS485 or the Digiware Bus.
  • Page 43 • Proprietary. Vendors can add their own created properties. Device Object: Every BACnet device compatible with the DIRIS Digiware D-50 / D-70 must have the Device Object and its associated required properties that fully describe the BACnet device to the network Example for the Device Object of the DIRIS Digiware D-50 / D-70.:...
  • Page 44 • The device with OID (1xx) is the device with the Modbus address xx. Analog Input Object: The DIRIS Digiware D-50 / D-70 acts as a BACnet gateway. It provides a number of Analog Input objects which may be available from the devices compatible and connected to the DIRIS Digiware D-50 / D-70.
  • Page 45 • • • VoltPhNVn Ph-N Voltage Vn Unsigned • • • • • VoltPhPhU12 Ph-Ph Voltage Unsigned • • • • • VoltPhPhU23 Ph-Ph Voltage Unsigned • • • • • DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...
  • Page 46 • Factor PowerFactorTypeSPF3 sPF1 Power Unsigned • • • • • Factor Type LoadCurve_ Load Curve Unsigned Positive Active • • Power LoadCurve_P- Load Curve Unsigned Negative Active • • Power DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 47: Bacnet Services

    Used to broadcast the current time to one or more BACnet servers who_Has Asks which BACnet devices contain a particular Object who_Is Used by a BACnet client to ask the presence of BACnet servers DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 48: Bacnet Ip Configuraiton Via Easyconfig

    The PICS file (Protocol Implementation Conformance Statement) is available at www.socomec.com After logging into Easy Config on the DIRIS Digiware D-50 / D-70, you can find the BACNET IP settings on the following page: Activation: enable or disable the Bacnet IP function Virtual network ID: set the virtual network ID Main instance ID: 100 by default.

  • Page 49: Annex.c. Smtp And Ftp Configuration

    This protocol enables an automatic notification via emails in case of alarm or event. Available as standard and secure SMTP. After logging into Easy Config on the DIRIS Digiware D-50 / D-70, SMTP settings are accessible via the following page: Setting up the SMTP server: Activation: enable/disable the SMTP email export function.

  • Page 50: Ftp File Export Protocol (Only Available With Diris Digiware D-70)

    Upload Log files: activate this to have additional information for troubleshooting in case of an export issue FTP Server This contains the login details of the FTP server (standard or secure). Address: enter the IP address of your FTP server DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 51: Ftp Planning Configuration

    August 15th, 2017 at 20:00 (8:00pm), it contains Load curves (Demand Power) from a device named I35 from a gateway whose ID is 8AD4A2 and site ID is socomec. If the file format is on “EMS”, the Site Name must be different from default name (“SITE”).
  • Page 52 Load curves / demand: P, Q, S etc. (Load curves) For each data type, specify the rate at which data will be exported (once an hour, once a day etc.) and at which time. DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...

  • Page 53: Understanding The Exported .Csv File In Ems Mode

    Key in column “B”, part (1) as a unique import code and do not only use the simplified index key in column “A”, part (2). If multiple DIRIS Digiware D-70 displays are exporting to the same folder, the simplified index key cannot differentiate them. DIRIS Digiware D-50 & D-70 - 548088A - SOCOMEC...
  • Page 54 CORPORATE HQ CONTACT: SOCOMEC SAS 1-4 RUE DE WESTHOUSE 67235 BENFELD, FRANCE www.socomec.com 548088A...
