socomec DIRIS Digiware DC Installation Manual

Measurement and monitoring system for dc
Hide thumbs
Table of Contents

Advertisement

Quick Links

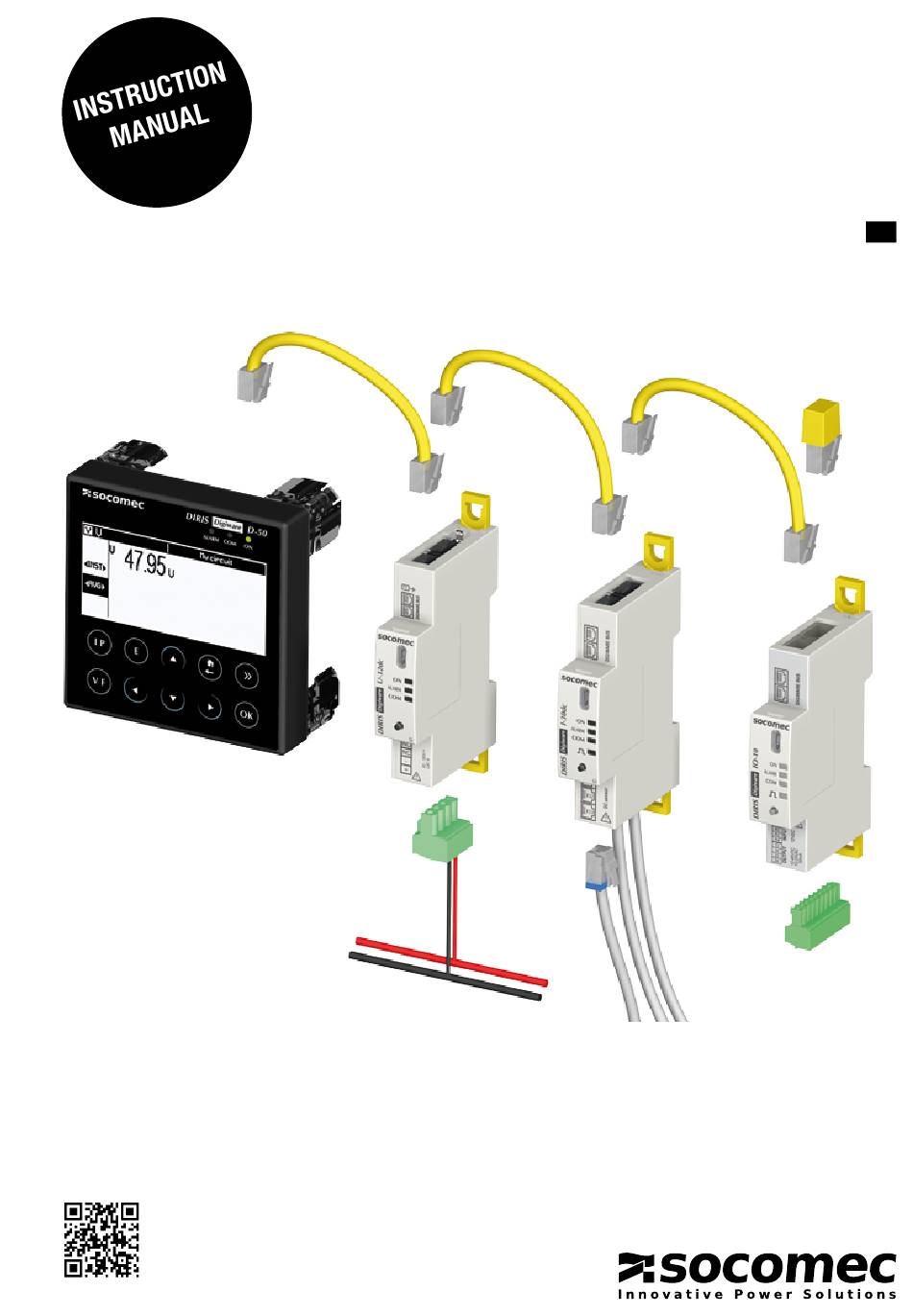

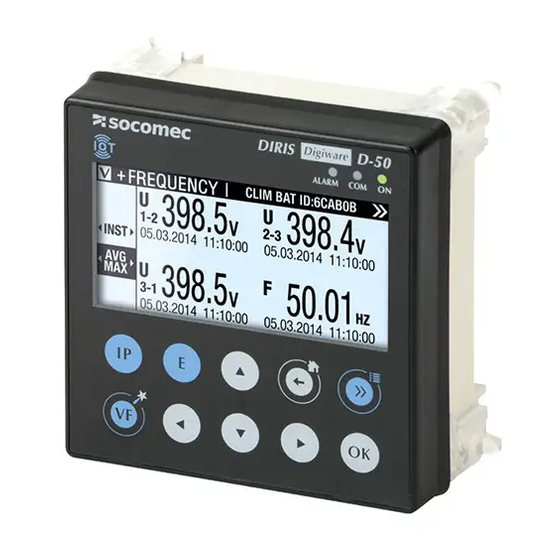

DIRIS Digiware DC
Measurement and monitoring system
for DC electrical installations
EN
www.socomec.com/
en/diris-digiware

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIRIS Digiware DC and is the answer not in the manual?

Questions and answers

Related Manuals for socomec DIRIS Digiware DC

Summary of Contents for socomec DIRIS Digiware DC

  • Page 1 DIRIS Digiware DC Measurement and monitoring system for DC electrical installations www.socomec.com/ en/diris-digiware...

  • Page 2: Table Of Contents

    . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 4 .1 . Introduction to DIRIS Digiware DC .
  • Page 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51 DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 4: Documentation

    1. Documentation All documentation on DIRIS Digiware DC is available on the SOCOMEC website at the following address: www.socomec.com/en/diris-digiware DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 5: Hazards And Warnings

    • the obligatory connection to the DC current sensors using the recommended connection cables and observing the maximum prescribed currents. • Only use RJ45 SOCOMEC cables to interconnect the modules via the Digiware bus. When the ambient temperature exceeds +50°C, the minimum temperature rating of the copper cable to be connected to terminal must be +85°C.

  • Page 6: Responsibility

    • Any cable which needs to be replaced may only be replaced with a cable having the correct rating. • Despite constantly striving for quality in preparing this manual, errors or omissions are always a possibility and are not the responsibility of SOCOMEC. DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 7: Preliminary Operations

    • The unit has not been damaged during transportation, • The device reference number conforms to your order, • The packaging includes the unit fitted with removable terminal blocks and a Quick start guide. DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 8: Introduction

    4. introDuction 4.1. introduction to Diris Digiware Dc DIRIS Digiware DC is a measuring system (PMD*) with modular format. It is designed for measuring and monitoring continuous electrical energy (DC). DIRIS Digiware DC offers a range of functions for measuring voltage, current, power, energy and quality.

  • Page 9: Range

    DIRIS Digiware I-35dc Ref. 4829 0151 Ref. 4829 0154 Ref. 4829 0157 DIRIS Digiware U1500dc Ref. 4829 0155 io input/output modules Diris Digiware io-10 Diris Digiware io-20 Digital inputs/outputs analogue inputs DIRIS Digiware IO-10 DIRIS Digiware IO-20 Ref. 4829 0140 Ref. 4829 0145 DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 10: Principle

    D i g D i r i w a D i g & C l t a g ( U ) u t s i n p Display Diris Digiware D DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...
  • Page 11 D i r r e   ( 3 I ) i w a u t s D i g i n p u t s I n p t p u Dc current sensors DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 12: Functions

    - Measurements available in the (WEBVIEW) web server of the DIRIS G gateway and the DIRIS Digiware D-70 display - Schedule synchronisation on the DIRIS G gateway or the DIRIS Digiware D-70 display - Auto-addressing with the gateway or the remote display. DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 13: Electrical Readings

    Vrms • alarms In the event of overloads • History of average values • Format Width/Number of modules 18 mm / 1 Part number 4829 0150 4829 0151 * Vrms = Vdc + Vripple DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...
  • Page 14 Diris Digiware io io-10 io-20 application Measuring / Monitoring / Analysis Number of digital inputs/ outputs Number of analogue inputs Format Width 18 mm Number of modules 4829 0140 4829 0145 Part number DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 15: Dimensions

    U1500dc. Modular products must not be installed directly next to an adapter. Dimensions in/mm A minimum distance between the metallic front face connected to protective earth and the screw terminal must be respected for the adapter U1500dc DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 16: Current Sensors

    - Use only DC current sensors complying with the above characteristics. - Do not use AC current sensor for DIRIS Digiware type TE, TR and TF. - For connecting the current sensors, use SOCOMEC cables or equivalent only, RJ12-Terminal straight cables, twisted pair, unshielded, 600 V, -10°C / +70°C.

  • Page 17: Connection Cables For Current Sensors

    Dc split-core sensors 48290750 48290751 48290752 48290753 48290754 48290755 48290756 1000 48290757 1500 48290758 2000 48290759 Other DC sensors can also be chosen providing their electrical and mechanical interface is compatible with I-3xdc modules. DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 18: Mounting

    The DIN rail must have an earth connection. If an earth connection is not available, an insulated DIN rail must be used. For U500dc, U1000dc and U1500dc adapters the instructions concerning the safety distances of the assembly given on page 15 must be respected. DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 19: Diris Digiware C, U-3Xdc, I-3Xdc, Io-X - Backplate-Mounted

    5 .2 .2 . DIRIS Digiware C, U-3xdc, I-3xdc, IO-x - backplate-mounted 0.19 in 5 mm Type of screw: M4 Tightening torque: 0.5 Nm Washer diameter 0.47 in / 12 mm max. DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 20: Connection

    6. connection 6.1. Diris Digiware connection without voltage adapter - Only use a SOCOMEC Digiware bus cable (UTP RJ45 straight, twisted pair, unshielded, AWG24, 600V Cat 5, -10 / +70°C). - When wiring, make sure you separate the low voltage (LV) section and the safety extra low voltage (SELV) section to prevent any risk of electric shock.
  • Page 21 48 VDC - 50 mA max. 4 screw connections, 0.25 Nm max. io-20 2x analogue inputs 0/4 - 20 mA 4 screw connections, 0.25 Nm max. solid 0.14 mm -> 1.5 mm 3xdc stranded 0.14 mm -> 1.5 mm 3x current sensor 7 mm inputs DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 22: Diris Digiware Connection With Voltage Adapter

    6.2. Diris Digiware connection with voltage adapter Only use a SOCOMEC Digiware bus cable (UTP RJ45 straight, twisted pair, unshielded, AWG24, 600V Cat 5 -10 / +70°C). When wiring, make sure you separate the low voltage (LV) section and the safety extra low voltage (SELV) section to prevent any risk of electric shock.
  • Page 23 48 VDC - 50 mA max. 4 screw connections, 0.25 Nm max. io-20 2x analogue inputs i-3xdc 0/4 - 20 mA 3x current 4 screw connections, sensors inputs 0.25 Nm max. solid 0.14 mm -> 1.5 mm stranded 0.14 mm -> 1.5 mm 7 mm DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...
  • Page 24 Voltage adapters connection principle - (0 V) t e r The U500dc, U1000dc, U1500dc voltage adapters only be connected to a U-32dc module. DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 25: Description Of The Terminals

    LIYCY-CY LIYCY-CY SLAVE MASTER 24 VDC 24 VDC (20 W max) (20 W max) (*) 1 A gG/Am fuse if using a non-SOCOMEC supply Diris Digiware c-31 Power supply Digiware bus communication line polarisation Diris Digiware c-32 Diris Digiware u-31dc Diris Digiware u-32dc...

  • Page 26: Connecting The Current Sensors

    (see “4.2. Current sensors”, page 16). - Do not use AC current sensor for DIRIS Digiware type TE, TR and TF. - For connecting the current sensors, use SOCOMEC cables or equivalent only, RJ12-Terminal straight cables, twisted pair, unshielded, 600 V, -10°C / +70°C.

  • Page 27: Calibrating The Current Sensors

    The loads are measured using several types of current sensor (solid-core or split-core) for new or existing installation. The link between each DIRIS Digiware I current measurement module and its connected sensors is made using specific cables. This connector allows rapid assembly without tools, without risk of wiring error. DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 28: Description Of The Association Of Dc Network And Loads

    ± 19.2 - 60 VDC ± 48 - 180 VDC V1 V2 V3 VN V1 V2 V3 VN + NC NC NC NC Fuse: 2 A gPV V1 V2 V3 VN V1 V2 V3 VN DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...
  • Page 29 ± 19.2 - 60 VDC ± 48 - 180 VDC ± 400 - 1200 VDC Fuse: 2 A gPV - NC DIRIS DIGIWARE DC - 545 830 B - SOCOMEC V1 V2 V3 VN V1 V2 V3 VN + NC NC NC NC...

  • Page 30: Connection Of The Functional Earth

    6 .5 .2 . Connection of the functional earth It is recommended to connect the functional earth to guarantee optimal metrological precision. DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 31: Digiware Bus

    50 m reel + 100 connectors 4829 0185 Use the shortest possible cables to optimise the electromagnetic emissions. The total max. length must not exceed 100 metres. Use only SOCOMEC cables for the Digiware bus. DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 32: Digiware Bus Termination

    DIRIS Digiware D-50 / D-70 2 / 2.5 DIRIS Digiware C-31 module voltage DIRIS Digiware U-3xdc module current DIRIS Digiware I-3xdc with 3 DC current sensors DIRIS Digiware IO-10 DIRIS Digiware IO-20 repeater DIRIS Digiware C-32 DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 33: Calculation Rules For The Max. Number Of Products On The Digiware Bus

    Whenever the power consumption is higher than 20 W or the distance is greater than 100 m, a DIRIS Digiware C-32 repeater is required. In a DIRIS Digiware system, a maximum of 2 repeaters may be used. Diris Digiware c-32 repeater Part number 4829 0103 DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...
  • Page 34 Digiware D 24 VDC power 24 VDC power supply supply The DIRIS Digiware U-3xdc voltage module must be located upstream of the repeater. The repeater has a 24VDC power supply. Diris Digiware c-32 24VDC DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 35: Status And Auto-Addressing Leds

    • Mode 1 - Auto-detection and automatic addressing • Mode 2 - Auto-detection and address selection Mode 1 is without external equipment (see description below). Mode 2 is carried out from a PC equipped with Easy Config. DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...
  • Page 36 The modules are always connected to the DIRIS G gateway via a DIRIS Digiware C-31 interface or via a DIRIS Digiware D-40 display. Note: During the auto-addressing process, the RS485 line is reserved for allocating addresses and no other exchange of data is possible at this time. DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 37: Communication

    A certain number of rules must be followed when DIRIS Digiware is connected using RS485. These rules are set out in the paragraphs below. Ethernet Digiware Bus Digiware Bus Termination RS485 RS485 120 Ω 120 Ω DIRIS G DIRIS B DIRIS Digiware C-31 DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 38: Connection With The Diris Digiware C-31 System Interface Module

    DIRIS Digiware D-50 / D-70 COUNTIS You can show 32 devices on DIRIS Digiware D-50/D-70 display. Other connections are possible with the DIRIS Digiware D remote display; refer to its manual for more details. DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 39: Connection With The Diris Digiware D-40 Remote Display

    You can show 32 devices on the DIRIS Digiware D-40 display. 9.3. communication tables The Modbus communication tables and associated explanations can be found on the documentations page for DIRIS Digiware on the SOCOMEC website at the following address: www.socomec.com/en/diris-digiware DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 40: Configuration

    DIRIS Digiware C-31 COUNTIS RS485 Configuration using Easy Config via a DIRIS Digiware D monitor (USB) Easy Config Digiware Bus RS485 DIRIS DIRIS B-30 DIRIS Digiware D-40 / D-50 / D-70 COUNTIS RS485 DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 41: Using Easy Config

    Easy Config is configuration software used to set product parameters easily and quickly. Parameters are set in successive steps: Network —> Loads —> Measurement method —> Values to be stored —> Alarms —> End of configuration DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...
  • Page 42 (2). Network configuration In the electrical network configuration menu, the user selects the type of network, the nominal voltage, and whether or not a voltage adapter is used. DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...
  • Page 43 The calculation methods for the various electrical parameters and the integration time are defined in this screen. alarms The type of alarm and the configuration is performed via Easy Config, see section “11. ALARMS”, page 45 for more details. DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 44: Synchronisation Of Products

    10 .2 .1 . Connection mode Configuration from the remote display (Digiware bus) Digiware Bus Display DIRIS DIRIS Digiware U Digiware I Refer to the manual for the DIRIS Digiware D display for more details. DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 45: Alarms

    • Setting a time delay at the start and end of the alarm. Example of configuring an alarm on the current via Easy Config: 11 .1 .2 . Consumption • Alarm on the energies: partial Ea+, Ea- • Selection of a high threshold (excessive consumption) DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 46: Combination Of Alarms

    • Information on the alarms with timestamping available via the RS485 communication bus • Alarm acknowledgement 11 .3 .5 . Display and WEBVIEW • Information on the alarms with timestamping • Alarm acknowledgement DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 47: Characteristics

    Adapter output: Removable screw terminal block, 2 positions, stranded or solid 0.2 - 2.5 mm² cable Link with DIRIS Digiware I current module The first DIRIS Digiware I current module is linked to the DIRIS Digiware U voltage module by a Digiware Bus DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 48: Communication Characteristics

    1200 to 115 200 bauds Function Configuration and reading of centralised data on the DIRIS Digiware U and all of the DIRIS Digiware I linked by the Digiware bus Location Single-point on DIRIS Digiware C DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 49: Environmental Characteristics

    Measurement category: CAT III UL61010-1 & UL61010-2-030 UL installation: DIRIS Digiware DC and current sensors have to be enclosed inside an NRTL certified electrical/fire enclosure, Listed Industrial Control Equipment, or similar equipment. The DC current sensors have to be compatible with the specifications provided in this manual and UL Listed with internal burden components.

  • Page 50: Service Life

    24Vdc +/-20% SELV - 20 W max 12 .2 .5 . Environmental characteristics Storage temperature -20 to +70°C Operating temperature -10 to +55°C Humidity 95% at 40°C Installation category, Degree of pollution CAT III, 2 DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...

  • Page 51: Performance Classes

    Diris Digiware u-32dc + adapter u1500dc Total active power 2% … 120% In Total active energy 2% … 120% In Voltage (DC+ / DC-) 1200 … 1500 VDC +10% Current 10% … 120% In DIRIS DIGIWARE DC - 545 830 B - SOCOMEC...
  • Page 52 CORPORATE HQ CONTACT: SOCOMEC SAS 1-4 RUE DE WESTHOUSE 67235 BENFELD, FRANCE www.socomec.com 545830B...
