Web Server and Setup Pages

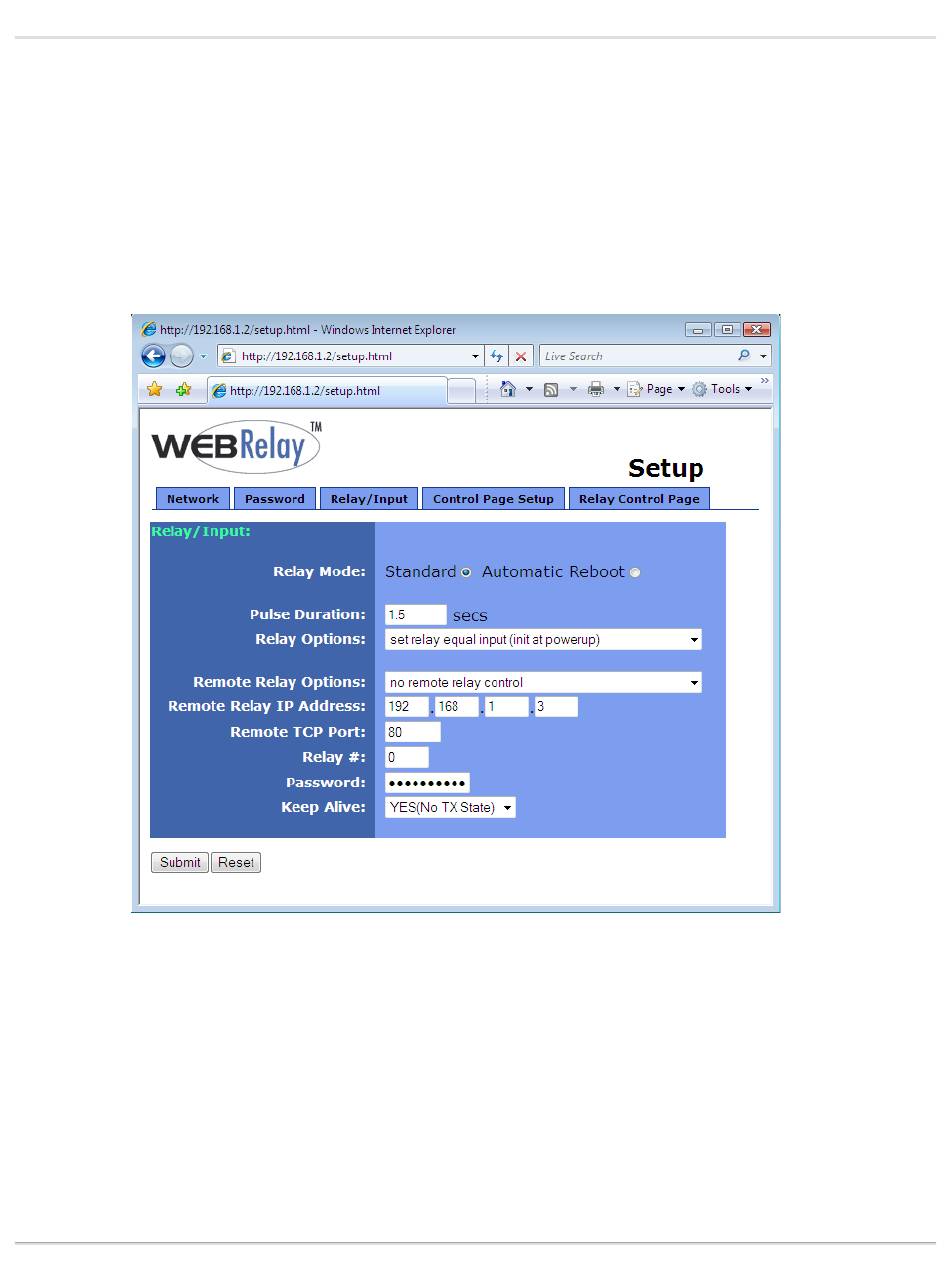

3.1.4 Relay/Input Setup Page

This page is used to set up the function of the relay and the control input. Note that in this manual, the
relay is considered to be on when the relay coil is energized. When the relay coil is on, the normally
open contacts are closed and the normally closed contacts are open. When the relay coil is off, the coil
is not energized and the normally closed contacts are closed and the normally open contacts are open.
The input is considered to be on when a voltage is applied to the input.
The respective LEDs on the front panel of WebRelay will illuminate whenever the relay or input are in
the on state.
Relay Mode
The unit may be configured so that it operates in Standard mode or Automatic Reboot mode.
Standard mode is used for all applications, except automatic reboot applications. Unless the
WebRelay will be used as an automatic reboot controller, Standard mode should be selected. In
cases where WebRelay will be used to remotely reboot devices but not for automatic reboot,
Standard mode should still be selected.
Automatic Reboot mode is used to configure WebRelay as a reboot controller. When this
option is selected, the options in both the Relay/Input and the Control Page Setup menus
automatically change.
In Automatic Reboot mode, the WebRelay is configured to periodically confirm that another
device (such as a server, computer, router, etc.) is working by sending ping requests to the
