2.5 Example Applications and Configurations
Several basic installation schemes are illustrated in this section.
2.5.1 Single WebRelay Device (IP network control only)

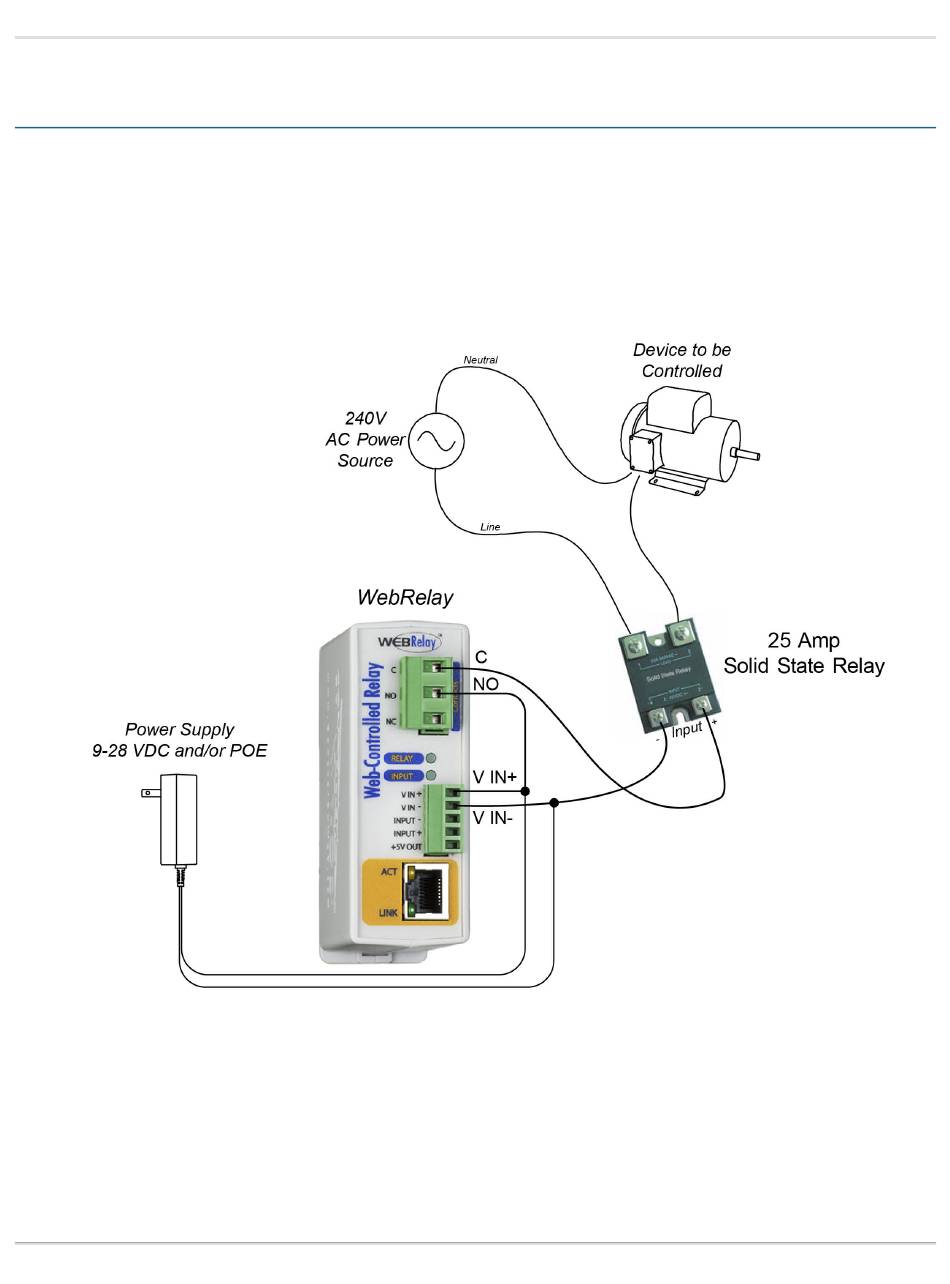

The example below shows the use of an interposer relay to control a load with larger current
requirements than that provided by the 12-amp relay in the WebRelay.
