CHIEF PSM-2537 Installation Instructions

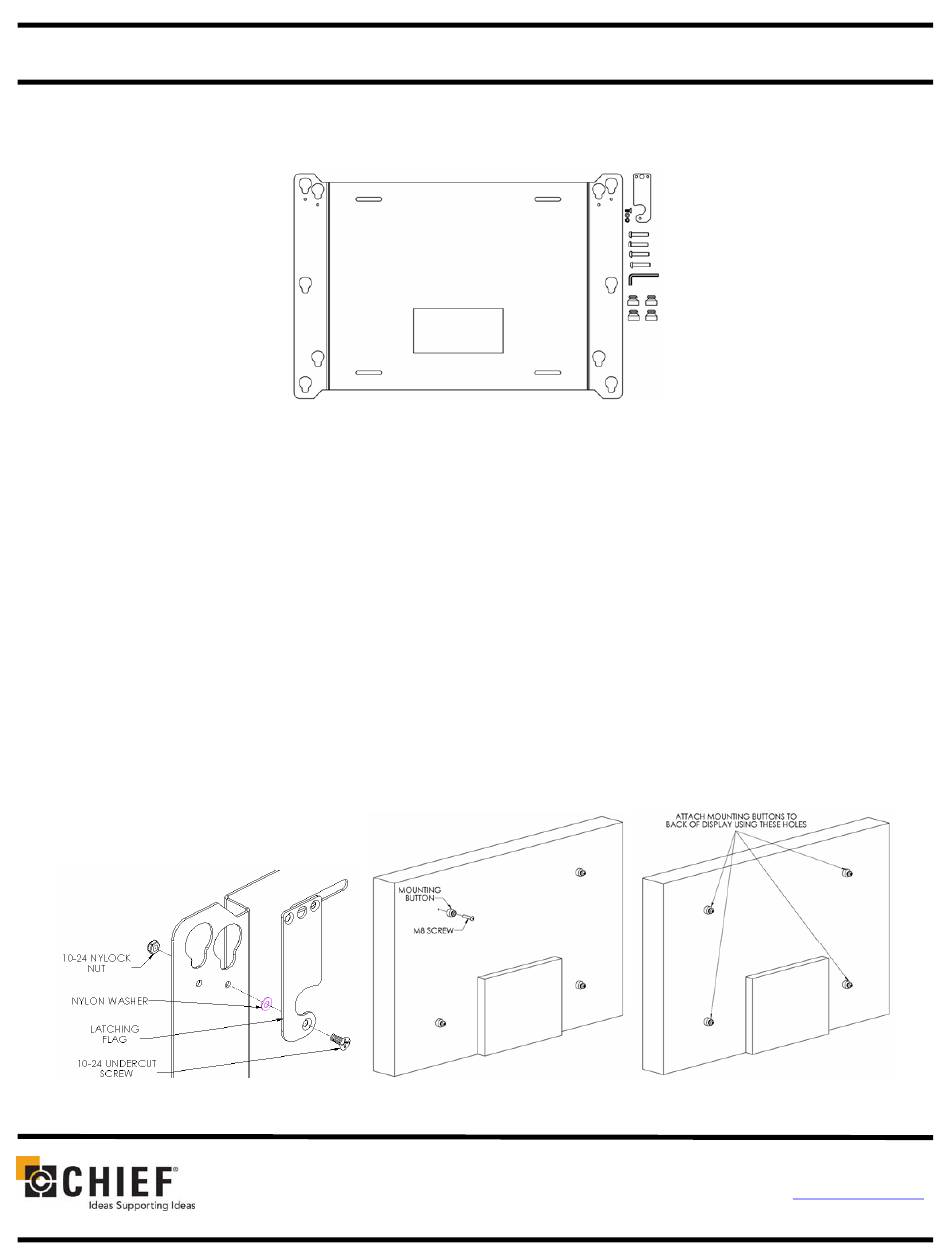

I N S T A L L A T I O N I N S T R U C T I O N S
(1) Static Mount
(1) Latching Flag
(1) 10-24 Nylock Nut
(4) Mounting Buttons – Black Nylon
BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1 and read installation
CAUTION!
1. Attach latching flag to mount using the 10-24 screw, Nylon washer, and Nylock nut (see Figure 2). Tighten
until friction will hold the flag in place.
2. Attach mounting buttons to the display using the M8 screws provided (see Figure 3 & Figure 4). Use proper
length of screws depending on thread depth of screen.
DISPLAY STATIC MOUNT
Figure 1
instructions completely. If you are missing any of the listed components, please
contact Customer Service at 1-800/582-6480.
Displays are Extremely Fragile.
Figure 2
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PARKWAY, STE 700
SAVAGE, MINNESOTA 55378 USA
PSM-2537
(1) 10-24 x .5 Phillips Undercut Screw
(1) Nylon Washer
(4) M8 x 45mm Button Head Cap Screw
(1) M5 Allen Key
Figure 3
Figure 4
