I N S T A L L A T I O N I N S T R U C T I O N S
PLASMA DISPLAY STATIC MOUNT
PSM-2230, PSM-2231 & PSM-2232
(1) Bracket, Plasma Mounting, Static
(1) Latching Flag
(6) Mounting Buttons, Steel, Silver
(1) Nylon Washer .250" OD x .1875" ID x .0312"
(6) Nylon Spacer, .750 x .250ID x .25"
(1) M4 Allen Key
BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1 and read
installation instructions completely. If you are missing any of the listed components, please
contact Customer Service at 1-800/582-6480.
CAUTION!
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
12800 HIGHWAY 13 SOUTH, SUITE 500
SAVAGE, MINNESOTA 55378 USA

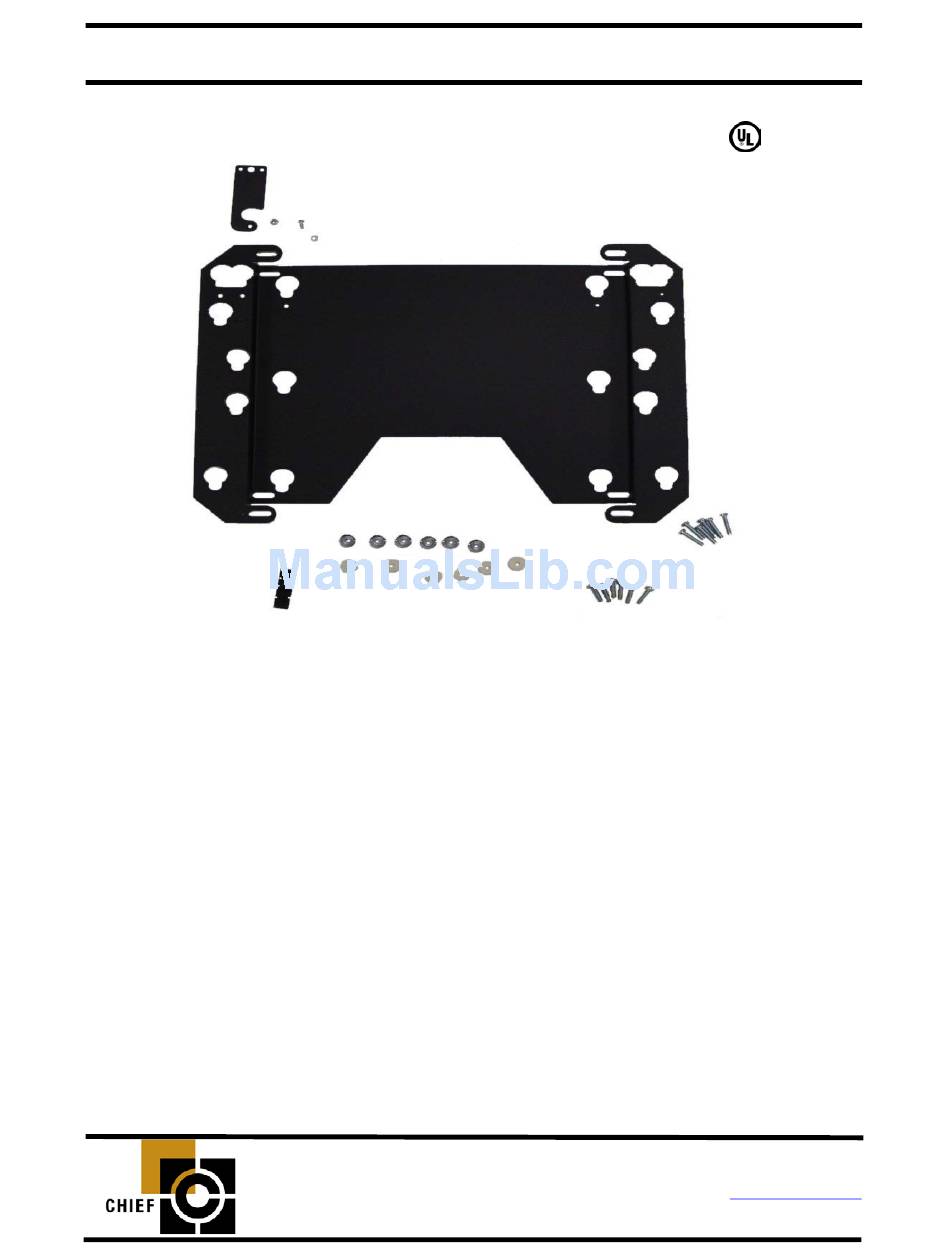

Figure 1
NOTE:
Not all parts are used for every application.
PLASMA DISPLAYS ARE EXTREMELY FRAGILE.
(1) 10-24 x .5 FH Undercut Screw
(1) 10-24 Nylock Nut
(6) M6 x 25mm Phillips Head Cap Screws
(6) M6 x 30mm Button Head Cap Screws
(4) Rubber Bumpers
2003 Chief Manufacturing
www.chiefmfg.com
01/03
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CHIEF PSM-2230
Summary of Contents for CHIEF PSM-2230
- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S PLASMA DISPLAY STATIC MOUNT PSM-2230, PSM-2231 & PSM-2232 Figure 1 (1) Bracket, Plasma Mounting, Static (1) 10-24 x .5 FH Undercut Screw...
- Page 2 PSM 2230 42” 4:3 Aspect Ratio Plasma 1. Attach six Nylon spacers and mounting buttons to plasma using six M6 x 30mm button head screws provided (see Figure 2 2. Secure latching flag to Plasma Static Mount using .250" OD x .03125" ID x .0312" Nylon Washer, 10-24 x .5 FH Undercut Screw, and 10-24 Nylock Nut (see Figure 3).
- Page 3 PSM 2231 46” Plasma Not here Mounting Button Latching Flag (Note outer hole location) Here M6 X 25mm Phillips Screw Nylon Washer between flag & mount 10-24 x .5 FH Undercut Screw 10-24 Nylock Nut installed from Figure 7 Figure 6 Attach six mounting buttons to plasma using six M6 x 25mm Phillips head screws provided (see Figure 6 2.
- Page 4 PSM 2232 42” 16:9 Aspect Ratio Plasma 1. Attach six mounting buttons to plasma using six M6 x 25mm Phillips head screws provided (see Figure 10 2. Secure latching flag to Plasma Static Mount using .250" OD x .1875" ID x .0312" Nylon Washer, 10-24 x .5 FH Undercut Screw, and 10-24 Nylock Nut (See Figure 11).
