PLASMA DISPLAY STATIC MOUNT
(1) Bracket, Plasma Mounting, Static
(6) Screws, M8 x 35mm Button Head Cap
(1) 10-24 x .5 FH Undercut Screw
(1) Nylon Washer
(1) 10-24 Nylock Nut

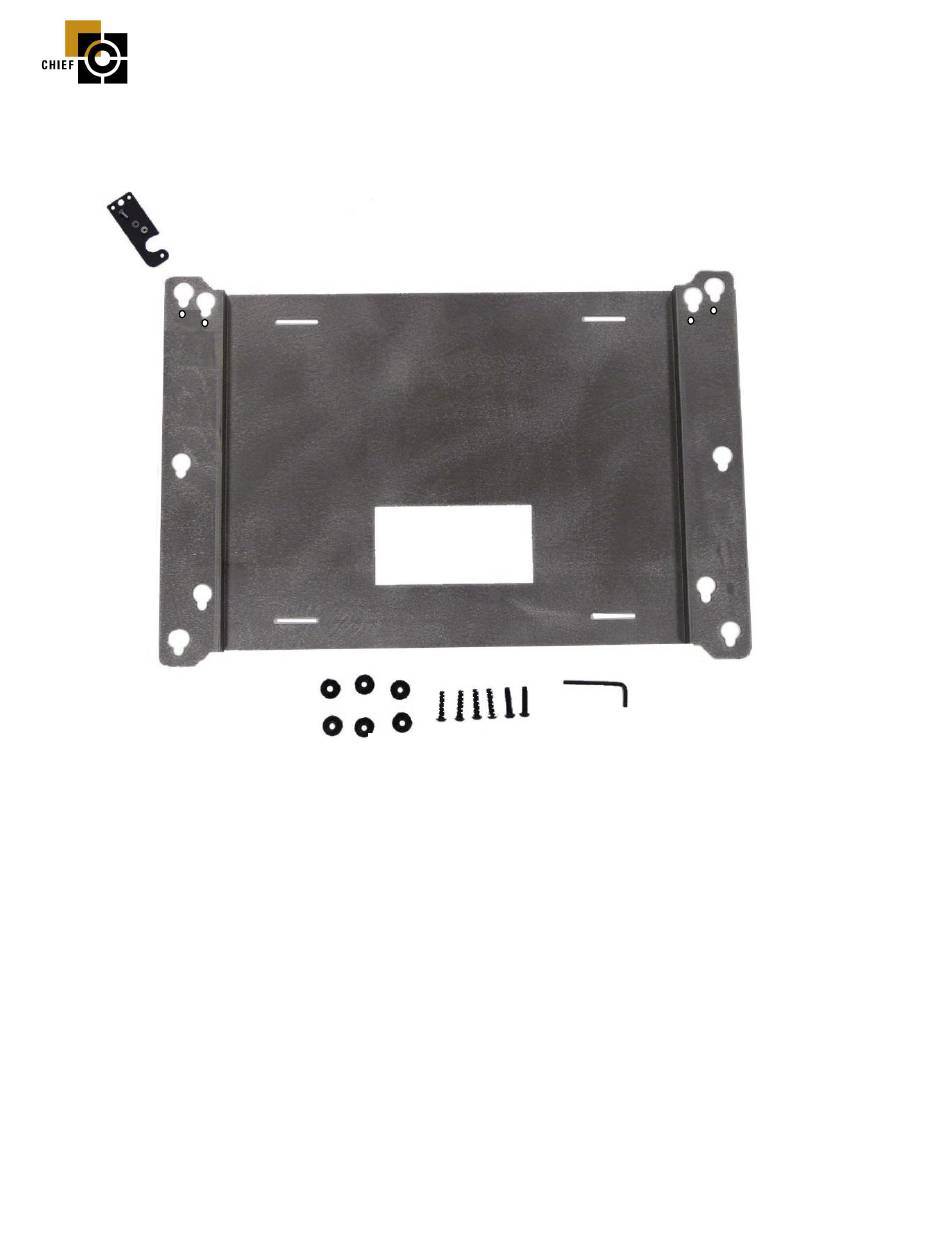

BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1 and read
WARNNG!
CAUTION!
CHIEF MANUFACTURING INC. 1-800-582-6480, Fax: 1-877-894-6918, Email: chief@chiefmfg.com
INSTALLATION INSTRUCTIONS
PSM-2131 and PSM-2132
Figure 1
NOTE:
Not all parts are used for every application.
installation instructions completely. If you are missing any of the listed
components, please contact Customer Service at 1-800/582-6480.
THE MOUNT, WHEN ANCHORED IN PLACE, MUST BE
CAPABLE OF SUPPORTING 4 TIMES THE COMBINED
WEIGHT OF THE PLASMA AND MOUNT.
PLASMA DISPLAYS ARE EXTREMELY FRAGILE.
(1) Latching Flag
(6) Screws, M8 x 50mm Button Head Cap
(6) Mounting Buttons, Nylon stepped, pan style
(1) Allen Key, 5mm
07/27/07
