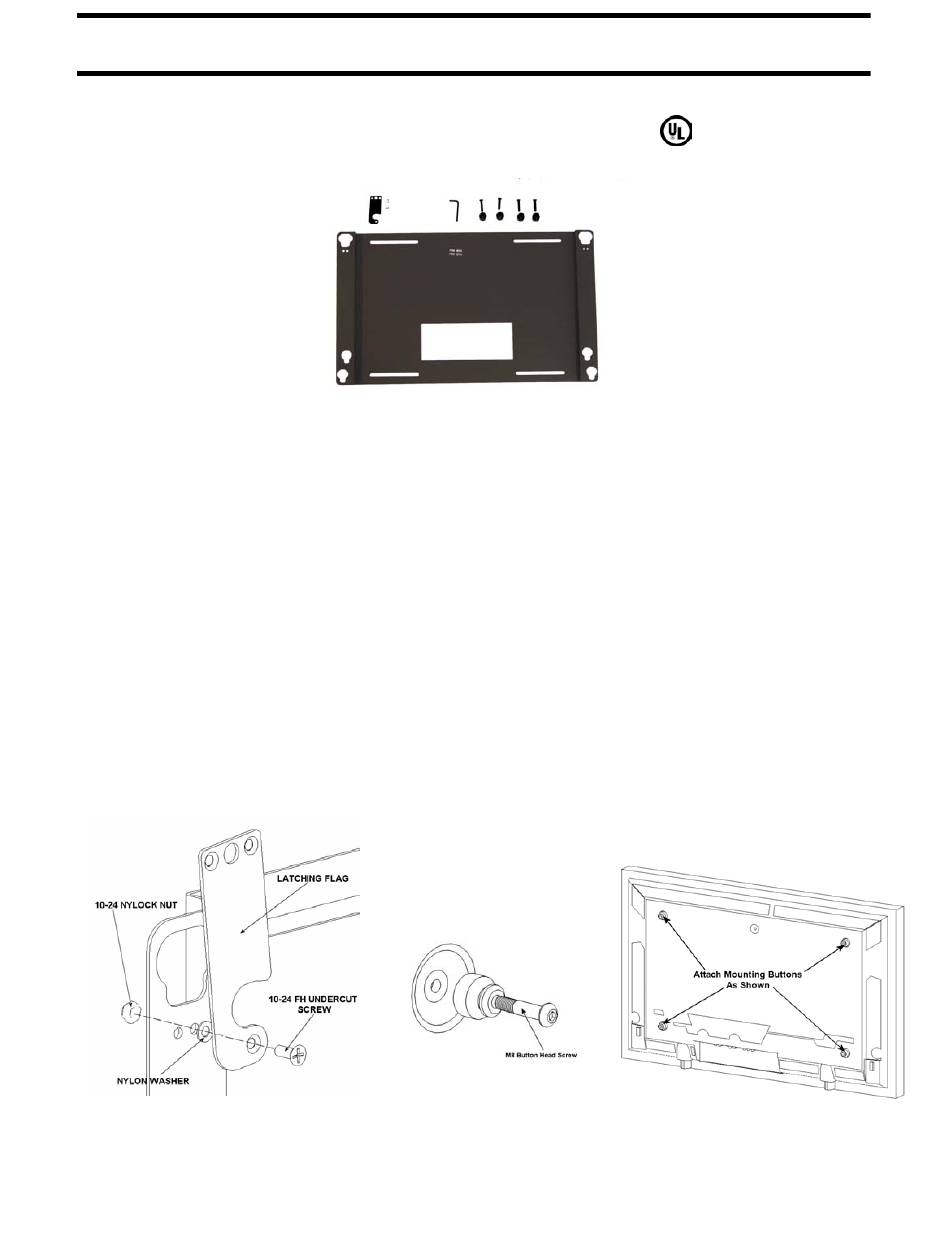

I N S T A L L A T I O N I N S T R U C T I O N S
BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1, and read
installation instructions completely.
CAUTION!
1. Secure latching flag to the inside mounting hole of the mount using the 10-24 Philips screw,
nylon washer, and Nylock nut (see Figure 2). Tighten until friction will hold the flag in
place.
2. Attach mounting buttons to display using the M8 bolts. Tighten using the included Allen key
(see Figure 3 and Figure 4).
Figure 2
ZCube
PLASMA DISPLAY STATIC MOUNT
PSM-2051 and PSM-2052

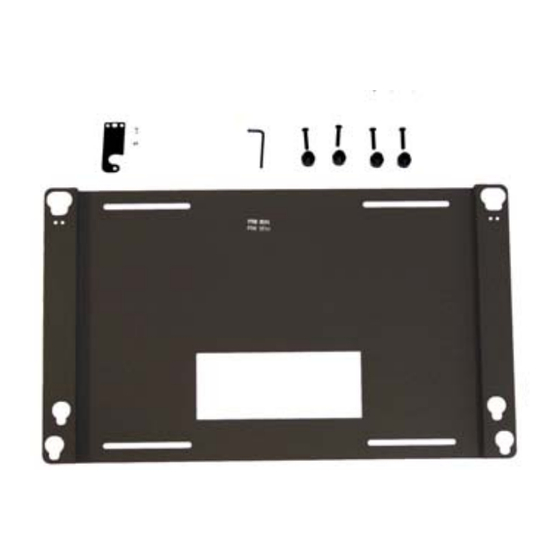

(1) Plasma Static Mount
(1) Latching Flag
(4) M8 x 40mm Button Head Cap Screws
(1) Nylon Washer
Plasma Displays are Extremely Fragile.
Figure 3
(1) 10-24 x .5 FH Undercut Screw
(1) 10-24 Nylock Nut
(4) Mounting Buttons-Nylon
(1) M5 Allen Key
Figure 4
10/23/03
