I N S T A L L A T I O N I N S T R U C T I O N S
(1) Static Mount Bracket
(1) 10-24 x .5 Flat Head Undercut Screw
(1) Latching Flag
(4) .875 x .330 x .375 Nylon Spacer
(4) M8 x 25mm Button Head Cap Screws

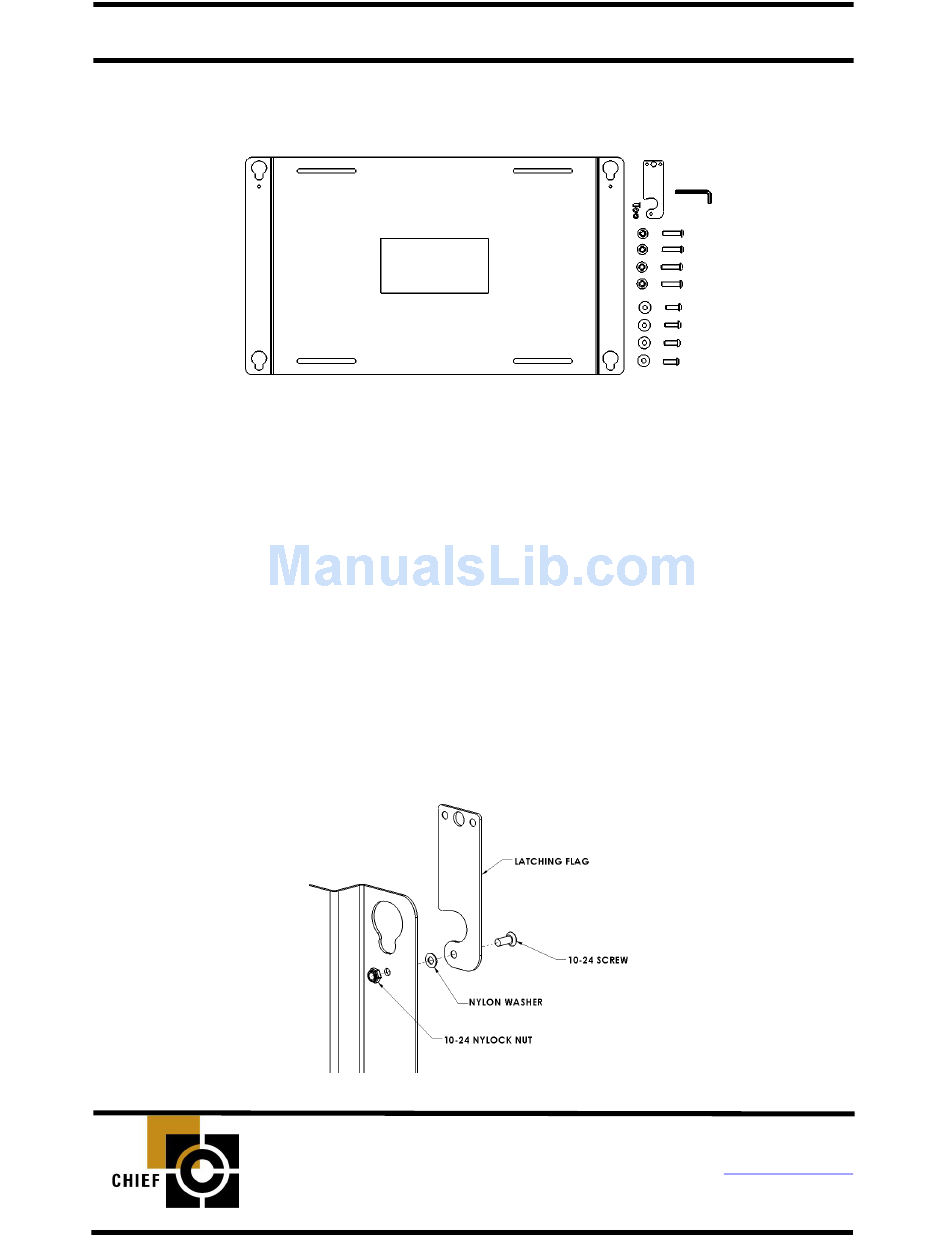

BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1 and read
installation instructions completely. If you are missing any of the listed components, please
contact Customer Service at 1-800/582-6480.
CAUTION!
1. Attach latching flag to mount using the 10-24 Phillips flat head screw, Nylon washer, and
Nylock nut (see Figure 2). Tighten until friction will hold the flag in place.
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PKWY, STE. 700
SAVAGE, MINNESOTA 55378 USA
DISPLAY STATIC MOUNT
PSM-2022
Figure 1
Displays are Extremely Fragile.
Figure 2
(4) Mounting Buttons
(1) Nylon Washer
(1) 10-24 Nylock Nut
(4) M8 x 35mm Button Head Cap Screws
8805-000033 REV. B
2006 Chief Manufacturing
www.chiefmfg.com
05/06
Advertisement
Table of Contents
Related Manuals for CHIEF PSM-2022
Summary of Contents for CHIEF PSM-2022
- Page 1 1. Attach latching flag to mount using the 10-24 Phillips flat head screw, Nylon washer, and Nylock nut (see Figure 2). Tighten until friction will hold the flag in place. Figure 2 CHIEF MANUFACTURING INC. 8805-000033 REV. B 1-800-582-6480 952-894-6280 FAX 952-894-6918 2006 Chief Manufacturing 8401 EAGLE CREEK PKWY, STE.
- Page 2 ALL COMPONENTS MUST BE SECURELY FASTENED TO A STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4 TIMES WARNING THE COMBINED WEIGHT OF ALL COMPONENTS PLUS THE EQUIPMENT BEING MOUNTED. IF IT CANNOT SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE REINFORCED. THE MAXIMUM WEIGHT TO BE INSTALLED ON THE MOUNT IS 175 POUNDS (79.38 KG).
