I N S T A L L A T I O N I N S T R U C T I O N S
PLASMA DISPLAY STATIC MOUNT
(1) Bracket, Plasma Mounting, Static
(4) Screws, M8 x 30mm Button Head Cap
(4) Mounting Buttons, Nylon stepped, pan style
(1) Allen Key, 5mm
BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1 and read
installation instructions completely. If you are missing any of the listed components, please
contact Customer Service at 1-800/582-6480.
CAUTION!
WARNING!
1. Attach four mounting buttons to display using four M8 x 30mm button head cap screws
provided (see Figure 2
2. Secure latching flag to Plasma Static Mount using one 10-24 x .5 FH undercut screw, one
Nylon washer, and one 10-24 Nylock nut (see Figure 3).
PSM-2540
Plasma Displays are Extremely Fragile.
ALL COMPONENTS MUST BE SECURELY FASTENED TO A
STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4 TIMES
THE COMBINED WEIGHT OF ALL COMPONENTS PLUS THE
EQUIPMENT BEING MOUNTED. IF IT CANNOT SUPPORT
THIS WEIGHT, THE STRUCTURE MUST BE REINFORCED.
THE MAXIMUM WEIGHT TO BE INSTALLED ON THE MOUNT
IS 175 POUNDS (79.38 KG).
.
)
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PKWY, STE. 700
SAVAGE, MINNESOTA 55378 USA

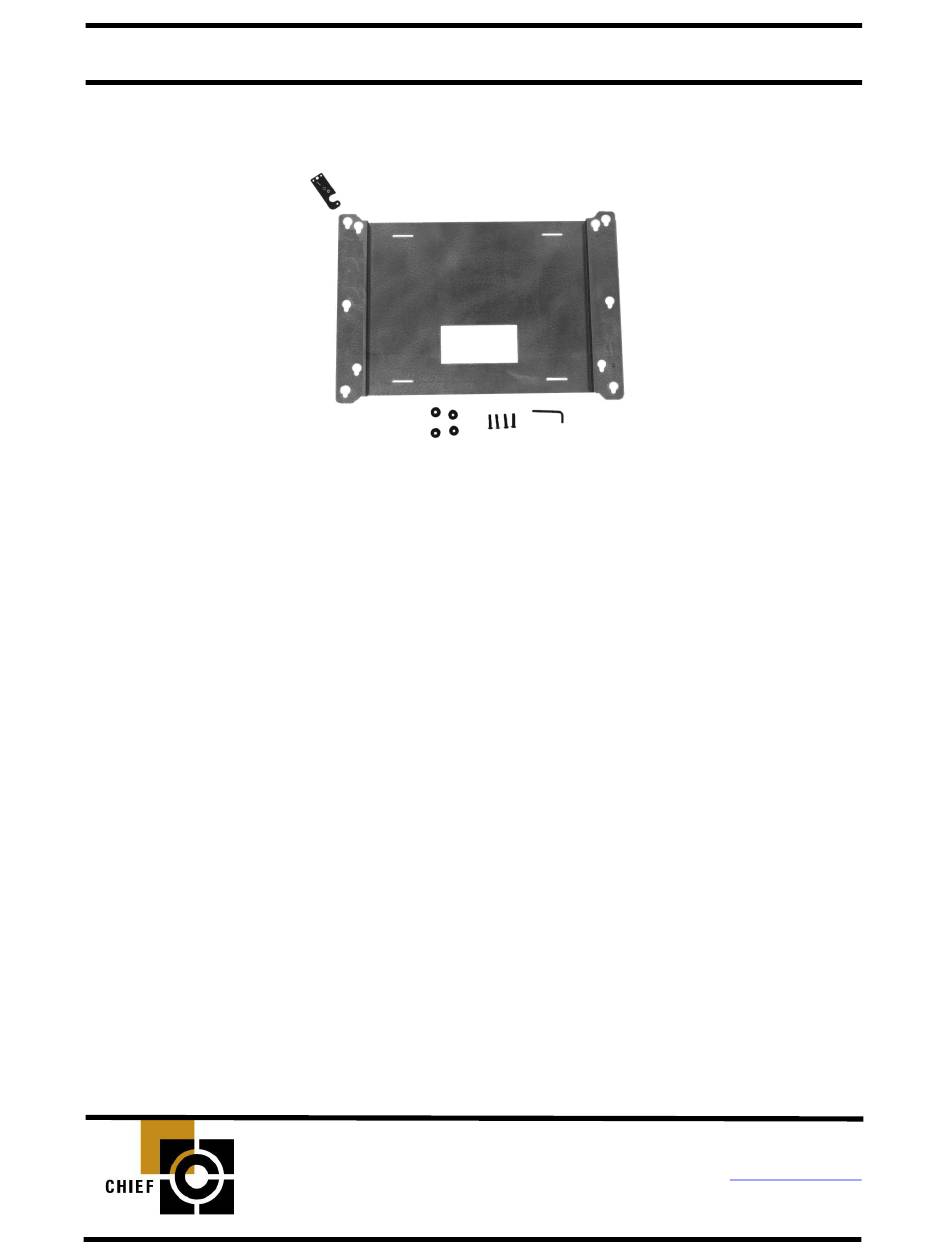

Figure 1
(1) Latching Flag
(1) 10-24 x .5 FH Undercut Screw
(1) Nylon Washer
(1) 10-24 Nylock Nut
8805-000097 REV. B
2004 Chief Manufacturing
www.chiefmfg.com
10/04
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CHIEF PSM-2540
Summary of Contents for CHIEF PSM-2540
- Page 1 (see Figure 2 2. Secure latching flag to Plasma Static Mount using one 10-24 x .5 FH undercut screw, one Nylon washer, and one 10-24 Nylock nut (see Figure 3). CHIEF MANUFACTURING INC. 8805-000097 REV. B 1-800-582-6480 952-894-6280 FAX 952-894-6918 2004 Chief Manufacturing 8401 EAGLE CREEK PKWY, STE.
- Page 2 10-24 x .5 FH Undercut Screw Nylon Washer between flag & mount Latching Flag Mounting Button (Note inner 10-24 Nylock Nut Locations installed from Figure 2 Figure 3 (see Securely anchor the plasma static mount to the wall using wall studs or supporting framework Figure 4).
