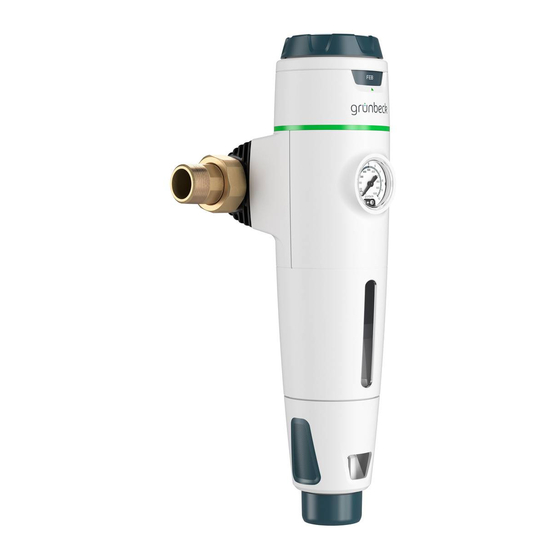

- Page 1 We understand water. Filter | Fine filter pureliQ:K, pureliQ:KD Operation manual...
- Page 2 Central Contact Germany Sales Phone +49 9074 41-0 Technical Service Phone +49 9074 41-333 Fax +49 9074 41-120 Availability Monday to Thursday 7:00 am – 6:00 pm Friday 7:00 am – 4:00 pm Your local point of contact: see accompanying list of representatives Copyright The manufacturer reserves the copyright to this manual.
-
Page 3: Table Of Contents
Disposal ........32 Product description ..... 13 Technical specifications ..... 33 Intended use ......... 13 Product components ..... 14 Fine filter pureliQ:K ....... 33 Functional description ....15 Fine filter pureliQ:KD ....35 Installation ........16 Other information ......37 Requirements for the installation 10.1 Explanation of terminology ... -
Page 4: About This Manual
About this manual 1.1 Other applicable documents The following documents also apply in the case of the fine filters pureliQ:K und pureliQ:KD: ● The manuals of all accessories used shall apply. 1.2 Target group This manual is intended for specialist installers and owners/users. -
Page 5: Typographical Conventions
About this manual This symbol identifies important information about the product or its handling. This symbol identifies work that is only allowed to be carried out by specialist installers. In Germany, the installation company must be registered in an installation directory of a water supply company acc. -
Page 6: Validity Of The Manual
First bullet point (level 2) • Second bullet point (level 2) ● Second list point (level 1) 1.6 Validity of the manual This manual applies to the following products: ● Fine filter pureliQ:K ● Fine filter pureliQ:KD 6 | 44... -
Page 7: Type Plate
About this manual 1.7 Type plate Type plate is located on the right side of the housing as seen from the front. Please specify the data shown on the type plate in order to speed up the processing of your enquiries or orders. Please enter the serial number below in order to have the necessary data handy whenever necessary. - Page 8 About this manual ● Serial no.: ________________ 8 | 44...
-
Page 9: Safety
Safety Safety WARNING: Contamination of drinking water due to incorrect handling. ● Risk of infectious diseases. ► Have the installation, start-up and six-monthly maintenance carried out by specialist installers only. 2.1 Safety measures ● Carefully read this manual before operating your product. ●... -
Page 10: Technical Safety Instructions
Safety 2.2 Technical safety instructions This manual contains instructions that you must comply with for your personal safety as well as to avoid damage to property. The information and instructions are highlighted by a warning triangle and have the following structure: CAUTION: Type and source of danger ●... -
Page 11: Regulations
Safety 2.3 Regulations When installing and starting up the system, amongst others, comply with the following regulations and guidelines: ● Statutory regulations on environmental protection ● Provisions of the employers' liability insurance associations ● DIN EN 806 Specifications for installations inside buildings conveying water for human consumption ●... -
Page 12: Responsibilities Of The Owner-User
Safety 2.5 Responsibilities of the owner-user Comply with the following instructions to ensure the proper and safe functioning of the product: ● Arrange for a specialist installer to carry out installation, start-up and maintenance. ● Have the product explained to you by the specialist installer. -
Page 13: Product Description
Product description Product description 3.1 Intended use ● The fine filters pureliQ:K and pureliQ:KD are designed for the filtration of drinking water. ● The fine filter pureliQ:KD with pressure reducer in addition is suitable for the adjustment of the holding on the withdrawal side. -
Page 14: Product Components
Product description 3.2 Product components Item Designation Item Designation Water meter screw connection Click connection flange Pressure reducer handwheel Month display Pressure gauge Support fabric Filter element Filter cylinder Filter bell cover Inspection window 14 | 44... -
Page 15: Functional Description
Product description 3.3 Functional description The unfiltered drinking water flows into the filter from the inlet side and then flows from the outside in through the filter element and to the pure water outlet. Thus, foreign particles of > 100 µm in size are retained. -
Page 16: Installation
Installation Installation The installation of a filter represents a major intervention into the drinking water system and may only be performed by a specialist installer. The pureliQ filters are installed in accordance with DIN EN 806-2 and DIN 1988-200 in the cold water line downstream of the water meter and upstream of distribution lines or the devices to be protected. -
Page 17: Checking The Scope Of Supply
The installation site must be well accessible for maintenance purposes. 4.2 Checking the scope of supply Item Designation Item Designation Water meter screw fittings Gaskets Fine filter pureliQ:K or pureliQ:KD Operation manual ► Check the scope of supply for completeness and possible damage. 17 | 44... -
Page 18: Installing The Product
Installation 4.3 Installing the product In order for the water line on both sides of the filter to be properly connected to the protective-equipotential bonding, we recommend establishing a corresponding electrical bypass according to DIN VDE 0100-540. Use suitable tools for assembly and be careful not to scratch the housing with your tool. - Page 19 Installation The rotatable click-type connection flange allows the filter to be adapted to any flow direction given on site. 3. Check the flow direction given on site 4. Rotate the click-type connection flange to the position suitable for your flow direction (marking on click-type connection flange).
-
Page 20: Start-Up
Start-up Start-up 5.1 How to start up the product 1. Open the shut-off valves. 2. Open the nearest tap after the filter as far as it will go. » The filter is vented. 3. Check the filter for leaks. » The filter is in operation 5.2 Setting the month display In order not to miss a maintenance date, you can set the next... -
Page 21: Setting Pressure Reducer (Only Pureliq:kd)
Start-up 5.3 Setting pressure reducer (only pureliQ:KD) The factory setting for the pressure reducer is 4 bar. You can change this value as follows: 1. Open the withdrawal point. 2. Set the desired after-pressure on the handwheel for pressure reducer by turning it. 3. -
Page 22: Handing Over The Operation Manual To The Operator
Start-up 5.4 Handing over the operation manual to the operator When handing over the product, proceed as follows: 1. Inform the owner/user how the filter works. 2. Hand over all documents to the owner/user for keeping. 3. Use the manual to brief the owner/user, and answer any questions. -
Page 23: Cleaning, Inspection, Maintenance
Cleaning, inspection, maintenance Cleaning, inspection, maintenance WARNING: If the intervals for inspection and replacement are not observed, the filter element will become excessively dirty. ● Health risk due to contamination of the drinking water. ► Observe the intervals for inspection and replacement of the filter element. -
Page 24: Intervals
Cleaning, inspection, maintenance 6.2 Intervals Operation Interval Execution Inspection 2 months Owner/user Maintenance 6 months Owner/user or specialist installer Change of the In case of soiling Owner/user or filter element and during specialist installer maintenance 6.3 Inspection According to DIN EN 806-5, the owner/user has to inspect the filters every 2 months. - Page 25 Cleaning, inspection, maintenance 6. Unscrew the filter bell by hand. » You have uncovered the used filter element and can change it as described below. 25 | 44...
- Page 26 Cleaning, inspection, maintenance 6.4.2 Hygienic replacement of the filter element 1. Remove the used filter element from the support fabric. 2. Dispose of the used filter element in accordance with local regulations. 3. Pick up the filter element in its packaging. 4.
-
Page 27: Consumables
Cleaning, inspection, maintenance 6.5 Consumables NOTE: Do not clean the filter element. ● Risk of inadequate hygiene. ► It is essential to discard used filter elements. Designation Order no. 100 µm filter element (2x) 101 272e 6.6 Wearing parts NOTE: Danger of damaging the system if unsuitable wearing parts are used. -
Page 28: Service Kits
Cleaning, inspection, maintenance Seals are wearing parts. Although these parts are wearing parts, we grant a limited warranty period of 6 months for them. 6.7 Service kits 6.7.1 Service kits for fine filter pureliQ:K Item Designation Item Designation Support fabric O-ring... - Page 29 Cleaning, inspection, maintenance 6.7.3 Service kits for fine filter pureliQ:KD Item Designation Item Designation Pressure gauge Support fabric O-ring Support fabric Filter cylinder Cylinder O-ring Pressure reducer Recommended replacement Designation consisting of Order no. interval • Set of seals 101 673e 5 years Service kit III •...
-
Page 30: Spare Parts
Cleaning, inspection, maintenance 6.8 Spare parts NOTE: Risk of damaging the system when unsuitable spare parts are used. ● Risk of functional impairment, malfunctions and loss of warranty. ► Only use genuine spare parts. 30 | 44... -
Page 31: Malfunction
Malfunction Malfunction WARNING: Risk of contaminated drinking water due to unintentional, strong reduction of pressure. ● Risk of infectious diseases. ► Remedy this malfunction immediately. Fault Explanation Remedy The water pressure at the The shut-off valves are not Open the shut-off valves withdrawal point is too low open completely. -
Page 32: Disposal
Disposal Disposal Do not dispose of the packaging, the product and/or the accessories with the domestic waste. ► Comply with the applicable national regulations for disposal. ► Make sure that the packaging, the product and the accessories are disposed of properly. 32 | 44... -
Page 33: Technical Specifications
Technical specifications Technical specifications 9.1 Fine filter pureliQ:K Connection data pureliQ:K Nominal connection DN 20 DN 25 DN 32 diameter ¾“ Connection diameter 1" 1¼" Dimensions and weights A Installation height up to [mm] centre of connection B Installation length... - Page 34 5 – 40 Ambient temperature [°C] DVGW registration pending number SVGW certificate pending number Order no. 101 220 101 225 101 230 Pressure loss curve of fine filter pureliQ:K Item Designation Item Designation Differential pressure Flow rate [m³/h] [bar] 34 | 44...
-
Page 35: Fine Filter Pureliq:kd
Technical specifications 9.2 Fine filter pureliQ:KD Connection data pureliQ:KD Nominal connection DN 20 DN 25 DN 32 diameter ¾“ Connection diameter 1" 1¼" Dimensions and weights A Installation height up to [mm] centre of connection B Installation length [mm] 185/100 182/100 191/100 with/without screw... - Page 36 Technical specifications Performance data Nominal flow at [m³/h] p 0.2 (0.5) bar Flow rate as per DIN [m³/h] EN 1567 value [m³/h] Pore size [µm] Largest/smallest pore [µm] 120/80 size Nominal pressure PN 16 General 5 – 30 Water temperature [°C] 5 –...
-
Page 37: Other Information
Other information 10 Other information 10.1 Explanation of terminology Filter element Part of the filter that ensures the retention of the particles. The filter's ability to retain particles and suspended matter of Pore size a certain size range, regardless of the type of filter material. It is defined by the upper and lower filtration fineness Flow rate at which, with a clean filter, either the pressure Nominal flow... -
Page 38: Operation Log
Operation log 11 Operation log ● Product designation: Fine filter pureliQ:____ ● Order no.: 101 ___ ● Serial no.: ________________ Date Work performed Signature 38 | 44... - Page 39 Notes Notes 39 | 44...
- Page 40 Notes Notes 40 | 44...
- Page 41 Notes Notes 41 | 44...
- Page 42 Index Index Cleaning ........ 23, 37 Maintenance ..4, 9, 11, 12, 20, 23, 24, 26 Malfunction ......... 31 Disposal ........32 Pressure reducer . 13, 14, 15, 21, 29 Filter element 14, 15, 25, 26, 27, 31, 33, 35, 37 Filtration ........
- Page 44 Grünbeck Wasseraufbereitung GmbH Josef-Grünbeck-Str. 1 89420 Hoechstaedt Germany +49 9074 41-0 +49 9074 41-100 info@gruenbeck.com For more Information go www.gruenbeck.com to www.gruenbeck.com...
