Summary of Contents for Zeiss AURA

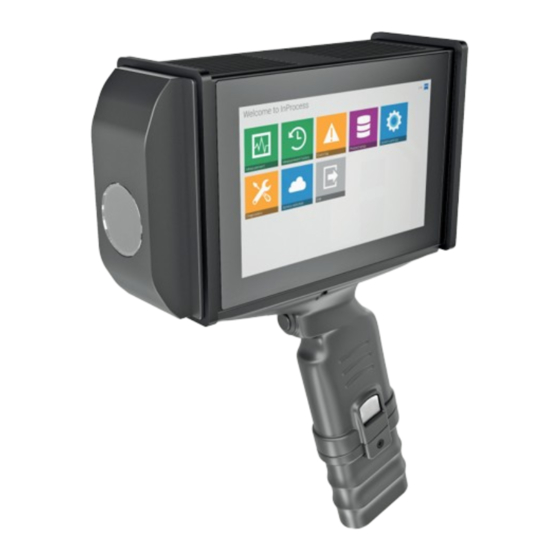

- Page 1 AURA ® handheld NIR User Manual...
- Page 2 Info + 49 3641 64-2838 + 49 3641 64-2485 Internet www.zeiss.com/spectroscopy Publication number: UM AURA handheld NIR - 2227-503 / E | 2018-06 ® 1st edition June 2018 Subject to technical changes AURA handheld NIR - 2227-503 | User Manual...
-
Page 3: Table Of Contents
Controls and indicators Interfaces Dimensions 4 Technical description ������������������������������������������������������������19 Function description Specifications ZEISS InProcess software 5 Operation �����������������������������������������������������������������������������23 Getting started Start measurement Export data Shutting down Exchanging battery packs Charging the battery pack AURA handheld NIR - 2227-503 | User Manual... - Page 4 Fig. 5 InProcess software – welcome screen ........22 Fig. 6 Exchanging the battery pack ..........27 List of tables Tab. 1 Connection and environmental parameters ......14 Tab. 2 AURA handheld NIR specifications ........21 Tab. 3 Spare parts .................29 AURA handheld NIR - 2227-503 | User Manual...
-
Page 5: Safety Instructions
To maintain the faultless state and ensure safe operation, all instructions and warning notes in this manual must be followed. The AURA handheld NIR meets the degree of protection IP 54 (front side only) and protection class III. The instruments carries the marking. -
Page 6: Used Symbols And Signal Words
The symbols below are used in this user manual to indicate safety relevant or helpful information: Attention Warning of possible property damage Note Read the User Manual Note Important general note Note Important note about environmental protection AURA handheld NIR - 2227-503 | User Manual... -
Page 7: General Safety Instructions
Warning and note signs must not be removed and must always be in a legible condition. Please note: • The AURA handheld NIR must not be started if it is damaged or in a wet condition. • Do not open the system. -
Page 8: Environmental Management
Inside the device is one Li-Cell CR2032 for the backup-functionality of the built-in embedded computer module and one single Cell-Li-Ion Battery to support the hot-plugging functionality of the main battery pack. AURA handheld NIR - 2227-503 | User Manual... -
Page 9: Storage And Transport
For air transport, follow the latest internationally applicable regulations for the transport of Li-ion batteries� The AURA handheld NIR works with the Standard Li-ion Smart Battery Pack RRC 2040-2 by RRC power solutions� Before use, read the latest Safety Data Sheet (SDS) and the manual provided by the battery manufacturer�... -
Page 10: Wifi
WiFi adapter� The safe range of operation depends on a free line of sight and the environmental conditions� The manufacturer assumes a safe range of operation of up to 5 m distance� AURA handheld NIR - 2227-503 | User Manual... -
Page 11: Basic Information
• The user manual must be read carefully before the system is used. The manual has to be always available at the system. • The AURA handheld NIR must not be wet or damaged. The user manual contains a description of the hardware and how to operate the AURA handheld NIR. -
Page 12: Intended Use
NIR spectrometer for measuring constituents of samples in direct contact. It is also used for displaying and storing results and related data. The AURA handheld NIR may only be used for its intended purpose as described. Any other use is contrary to regulations. The operator will assume liability for any resulting damage. -
Page 13: Warranty And Liability
29 in this manual, no maintenance or repair of the instrument may be undertaken. Repairs may only be carried out by ZEISS service staff or persons explicitly authorized by ZEISS. In case of any malfunction of the device, contact the customer service department at Carl Zeiss Spectroscopy GmbH (service.spectroscopy@zeiss.com). -
Page 14: Connection And Environmental Parameters
– 20 … + 60 °C Operation temperatures + 5 … + 40 °C Max. of humidity 95 % not condensing (at 25 °C) Altitude of use up to 2000 m Tab. 1 Connection and environmental parameters AURA handheld NIR - 2227-503 | User Manual... -
Page 15: System Overview
AURA handheld NIR System overview System overview 3.1 Package check list The system is delivered with the following parts: • AURA handheld NIR with InProcess software preinstalled • 1x Smart Battery Pack RRC 2040-2 (deactivated) • Hand strap • User Manual Note Accessories like charger, spare battery packs or a carrying case can be found in the section “Maintenance and spare parts”�... -
Page 16: Controls And Indicators
• cyan: almost full capacity • blue: half capacity • yellow: battery almost empty • critical battery status – nearly empty ⇒ red: • exchange battery pack and reload AURA handheld NIR - 2227-503 | User Manual... -
Page 17: Interfaces
System overview Reset button Power ON button Release buttons for exchanging the battery pack 3.4 Interfaces Fig. 3 Interfaces USB 2.0 USB 2.0 Ethernet 19 V DC in (from Battery charger RRC-SMB-UBC) AURA handheld NIR - 2227-503 | User Manual... -
Page 18: Dimensions
AURA handheld NIR System overview 3.5 Dimensions ø 40 Fig. 4 Dimensions Display side Front Rear AURA handheld NIR - 2227-503 | User Manual... -
Page 19: Technical Description
Technical description Technical description 4.1 Function description The AURA handheld NIR has been developed for the most diverse optical measuring applications and consists of a polychromator with a measuring head for diffuse reflection. The front panel includes a sapphire window. -
Page 20: Specifications
Free beam optics with internal black / white reference Polychromator 1 x PGS Sensor arrays Multiplexed InGaAs Numbers of diodes per sensor array Spectral range 950 ... 1650 nm Mean spectral pixel pitch 3 nm AURA handheld NIR - 2227-503 | User Manual... -
Page 21: Tab. 2 Aura Handheld Nir Specifications
Amplitude digitalization 16 bit Max. measuring frequency ≥ 1 Hz Light source Halogen lamp, 20,000 h (Exchange by ZEISS service only!) Measuring spot 4 x 6 mm Tab. 2 AURA handheld NIR specifications AURA handheld NIR - 2227-503 | User Manual... -
Page 22: Zeiss Inprocess Software
InProcess is a software to control one or multiple devices, to setup and execute measurement procedures and to visualize and archive spectral and numerical data from ZEISS spectrometer systems. The InProcess software is preinstalled on the AURA handheld NIR. Note For detailed information to InProcess, please refer to the provided “InProcess Manual”�... -
Page 23: Operation
You can start right away by plugging the charger cable into the socket on the backside of the AURA handheld NIR (see Fig. 3 / 4). Insert a battery pack into the battery slot of the AURA handheld NIR until the “Release buttons” snap in (see Fig. 2 / 7). -
Page 24: Start Measurement
1. Choose the measurement process. 2. Press the “Start measurement button” on the AURA handheld NIR. 3. Enter an identifier or a name for the measurement data. 4. Measurement results will be displayed on the screen. -
Page 25: Export Data
Operation 5.3 Export data There are two different options available for data exchange between the AURA handheld NIR and storage media or PCs: • Gigabit Ethernet at 1000 Mbit • 2 x USB 2.0 The data transfer can be executed via InProcess. -
Page 26: Exchanging Battery Packs
Please push the “Power ON button” again after replacement of the battery, to switch the lamp on again. Note The AURA handheld NIR should be shut down when the exchange of the batteries takes longer than three minutes� 1. Push the “Release buttons” (Fig. 6 / 1) at the handle 2. -
Page 27: Fig. 6 Exchanging The Battery Pack
AURA handheld NIR Operation Fig. 6 Exchanging the battery pack Release buttons for the battery pack Lower battery compartment Battery AURA handheld NIR - 2227-503 | User Manual... -
Page 28: Charging The Battery Pack
The battery is charged and can be removed for use. • Note To check the charging status of the battery pack, please touch the switch on the battery pack� The LED bar will show the charging status� AURA handheld NIR - 2227-503 | User Manual... -
Page 29: Maintenance And Spare Parts
Use the spare parts in the following list only� Designation Order No� Battery pack RRC 2040-2 000000-0602-888 Battery charger RRC-SMB-UBC 000000-0544-188 000000-0603-965 Power cable for charger (with european plug) Carrying case 000000-0603-747 InProcess software 000000-2107-128 Tab. 3 Spare parts AURA handheld NIR - 2227-503 | User Manual... - Page 30 • Instruction Manual Battery Pack RRC 2040-2 (4 pages) • Safety Data Sheet RCC-Batteries (16 pages) • Data sheet WiFi adapter LM808 (2 pages) • EU Declaration of Conformity (RED) LM808 (1 page) AURA handheld NIR - 2227-503 | User Manual...
- Page 31 Technical Data Sheet RRC-SMB-UBC – RRC SMBUS Universal Battery Charger 65 Watt SMBUS Desktop Universal Battery Charger for Smart Batteries Features: Single bay fast charger For the standard battery form factors RRC2020, 2024, 2040, 2040-2, 2054, 2057 or smart batteries with a similar footprint (e.g.
- Page 32 Technical Data Sheet RRC-SMB-UBC – RRC SMBUS Universal Battery Charger Safety & EMC In combination with specified external AC/DC power supply Regulatory approvals Europe Electromagnetic Europe EN55011, EN55022, level B Emissions FCC15 class B Electromagnetic ESD immunity EN/IEC61000-4-2 Immunity Electromagnetic field immunity EN/IEC61000-4-3 EFT / Burst EN/IEC61000-4-4...
- Page 33 Instruction Manual Battery Pack RRC2040-2 Deutsch Bedienungsanleitung English Instruction manual Български Ръководство за употреба Česky Návod k obsluze 中国 使用说明书 中國 使用說明書 Dansk Betjeningsvejledning Español Manual de empleo Français Manuel d'utilisation ऑपरे ट िं ग म ै न् य ु अ ल जर्म...
- Page 34 Instruction Manual Battery Pack RRC2040-2 10-25% 26-50% <10% 51-75% 76-100% 2 / 28 Manual_RRC2040-2_A Subject to technical changes without notice * Released document – Copy is not subject to revision service!
- Page 35 Deutsch Bedienungsanleitung Diese Bedienungsanleitung enthält Hinweise zur Handhabung als auch wichtige Sicherheitshinweise. Lesen Sie die Bedienungsanleitung vor der Inbetriebnahme des Produkts sorgfältig durch. Sicherheit: Batterien nicht öffnen oder zerlegen. Setzen Sie Batterien keiner Hitze oder Feuer aus. Vermeiden Sie die Lagerung bei direkter Sonneneinstrahlung. ...
- Page 36 English Instruction manual This manual contains instructions for use and important safety information. Read the instructions carefully before using the product. Safety: Do not open or dismantle batteries. Do not expose batteries to heat or fire. Avoid storage in direct sunlight. Do not short-circuit a battery.
- Page 53 LM808 WiFi 802.11ac/b/g/n Adapter Product LM808 Host Controller Interface (HCI) via USB Interface Part No See Last Page Revised 11/JAN/2018 Datasheet Version Vista Features Supports All IEEE Standards Operates over ISM bands (2.4GHz and 5GHz) IEEE 802.11ac/a/b/g/n/d/e/h/i 20MHz / 40MHz / 80MHz Bandwidth Transmission Backward compatible with 802.11a/b/g devices Modulation while operating over 802.11n...
-
Page 54: Fig. 4 Dimensions
LM808 WiFi 802.11ac/b/g/n Adapter Product LM808 Host Controller Interface (HCI) via USB Interface Part No See Last Page General Specification Product Name LM808 Chipset Realtek No. of Transmitters 1T 1R Standard IEEE 802.11ac/a/b/g/n/d/e/h/i Data Transfer Rate 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, 54, 60, 90, 120, 150, 173.3, 180, 240, 270, 300, and maximum of 433.3Mbps Modulation Method CCK, DQPSK, DBPSK, BPSK, QPSK,16QAM, 64QAM, 256QAM... - Page 55 TECHNOLOGIES EU Declaration of Conformity (RED) Revised /2017 LM Technologies, 26D Guosheng tai, Guozhan block, Buji Town, Shenzhen, China. Factory name, address Declare under our sole responsibility that the product To which this declaration relates is in conformity with R D Directive 2014/53/EU By application of the following standard EN 30 EN 30...
