INTRODUCTION
The remote control and receiver combo for Dynamic Tunable White strip lights uses the most advanced RF wireless transmission technology.
The system consists of two parts: the handheld remote control and the in-line receiver.
Featuring a 2-memory and 8-zone programmable remote control, it allows you to quickly adjust brightness and adjust color temperature to create
a warmer, soothing atmosphere or a cooler one to work by. In addition, it includes a wall mount to easily mount the remote control on a nearby
wall.
This unit is compatible with any Flexfire LEDs Dynamic Tunable White strip light.
SAFETY AND WARNINGS
•
Install in accordance with the National Electric Code, and local regulations.
•
This product should be installed and serviced by a qualified electrician.
•
Do not connect directly to high voltage 120V AC power.
•
This product is rated for indoor installation and is not protected against moisture.
•
Proper heat dissipation will prolong the working lifespan of this product. Install in a well ventilated area.
•
Only install compatible LED power supplies and fixtures. Contact Technical Support or visit the product page for compatible accessories.
•
Ensure applicable wire is installed between power supply, fixture, and any controls in between. When choosing wire, factor in voltage drop,
amperage rating, and type (in-wall rated, wet location rated, etc). Inadequate wire installation could overheat wires and cause fire.
•
Utilize the wiring diagrams in this installation guide for basic setups.
C T
SPEED
C T
SPEED
I
2
4
5
7
8
MI
M2
DY N- M Z- COM BO

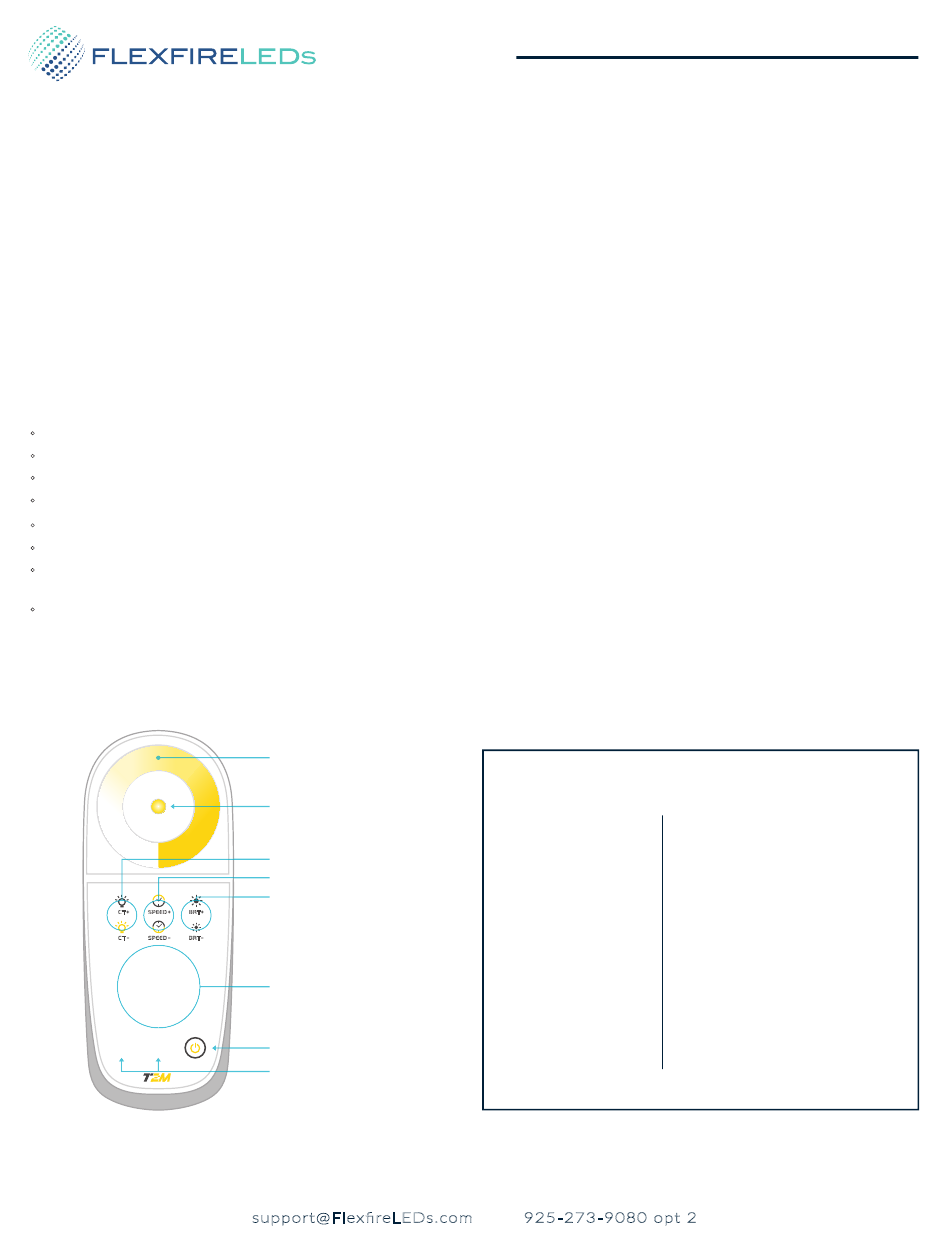

DYNAMIC TUNABLE WHITE MULTI-ZONE
LED Remote Control & Receiver
Touch Adjustable Color Circle
Sync Status Indicator Light
Color Temperature adjust
Speed Adjust
Brightness Adjust
(Keep pressing to adjust brightness
BRT
continuously)
BRT
3
6
Zone Selection Buttons
*
On/Off Button
Memory Buttons
(press for 3 seconds to save the
current settings for future recall)
support@FlexfireLEDs.com
Dynamic Tunable White Multi-Zone Combo
REMOTE CONTROL
Details
SKU:
Working Voltage:
Working Frequency:
PWM Frequency:
Max. Signal Range:
Working Temp:
Dimensions:
Weight:
Warranty:
925-273-9080 opt 2
User Guide
DYN-MZ-CTRL
5V (Built-in lithium battery)
2.4GHz
2000Hz
98ft (30m)
-22°F ~ 131°F (-30°C ~ 55°C)
H: 5 3/4" (146mm) W: 2 1/4" (56mm)
D: 7/8" (22mm)*
7oz (200g)
5 years
*Comes with a wall mount for easy storage
1
page
V.2018.10.03
Advertisement
Table of Contents
Related Manuals for Ltech T2M
Summary of Contents for Ltech T2M
- Page 1 Dynamic Tunable White Multi-Zone Combo User Guide DYNAMIC TUNABLE WHITE MULTI-ZONE LED Remote Control & Receiver INTRODUCTION The remote control and receiver combo for Dynamic Tunable White strip lights uses the most advanced RF wireless transmission technology. The system consists of two parts: the handheld remote control and the in-line receiver. Featuring a 2-memory and 8-zone programmable remote control, it allows you to quickly adjust brightness and adjust color temperature to create a warmer, soothing atmosphere or a cooler one to work by.
-
Page 2: Led Controller
User Guide • Dynamic Tunable White Multi-Zone Combo RECEIVER Power Indicator LED LED CONTROLLER Positive Channel Sync Button MODEL: T3-CV 2.4G WIRELESS REMOTE CONTROL POWER INPUT: DC5V-DC24V White Channels OUTPUT: 6Ax3CH (Negative) Power Input Terminal Color Indicator LED Details Working Temp: SKU: SC-MZ-RCVR -22°F ~ 131°F (-30°C ~ 55°C) -
Page 3: Installation
User Guide • Dynamic Tunable White Multi-Zone Combo INSTALLATION Always pre-test your LED setup prior to permanent installation. This will ensure all components work correctly. Be sure to check the amperage rating of the LED strip you’ve purchased so the receiver isn’t overloaded (max 6 amps per channel). Turn off the main AC breaker for the line you’ll be using before installing your low voltage power supply. -
Page 4: Additional Features
User Guide • Dynamic Tunable White Multi-Zone Combo *Long Beep* Press the black sync button on the receiver once. - The Power Indicator LED will remain static- then quickly press and hold the zone you wish to assign that receiver to (1-8) on the remote. The Power Indicator LED on the receiver will flash faster, you’ll hear a long beep and the Sync Status Indicator Light on the remote will flash 3 times. -
Page 5: Remote Control Charging
User Guide • Dynamic Tunable White Multi-Zone Combo REMOTE CONTROL CHARGING To charge the remote control, connect the mini USB cable to the remote and the opposite end of the cable to a regular USB port (computer or USB charger). The LED indicator on the remote will flash to show that the remote is charging. -
Page 6: Troubleshooting
User Guide • Dynamic Tunable White Multi-Zone Combo TROUBLESHOOTING - If your lights are not turning on or ickering: • Check that the red Power Indicator LED on the Power Input side of the receiver is flashing. If it’s not flashing the receiver isn’t getting power, make sure the polarity of the power supply wires match the polarity of the channels on the Power Input Terminal. - Page 7 User Guide • Dynamic Tunable White Multi-Zone Combo Flexfire LEDs will NOT provide replacement items before the original items have been returned, tested, and deemed faulty. If you need a replace- ment item while the return process is taking place, then you can repurchase that item. Once the testing process is complete and assuming the product is faulty, a refund will be issued for the purchase price of the product.
