Ltech Q Series Manual

1 4
2 3
For:
Manual
www.ltech-led.com

Key Functions

Q2
All Off
Lamp
indicator light
1 4
2 3
On
Off
System Diagram
Mobile phone
Q
Series
Remote
Router
Wireless
connection
Wired
connection

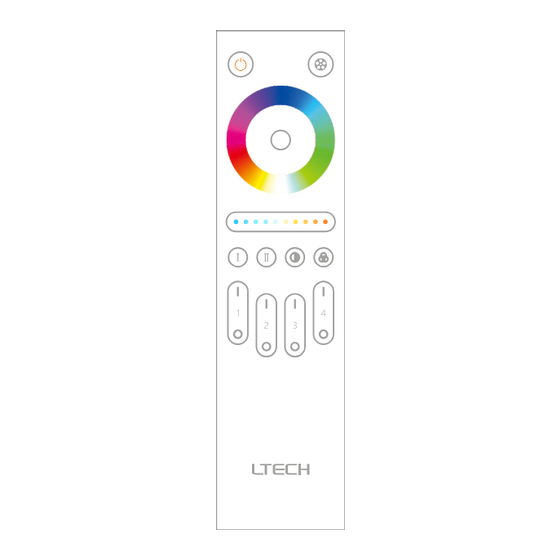

Product Introduction

Q series remote control is a 4 zones control in color circle
dimming and slider touch dimming. Color and brightness is
displayed by color indicators. Connect to any wireless driver
within effective distance and keep the effect in sync. Working
with F4-5A, F4-DMX-5A, F5-DMX-4A and touch panel, etc.
Q2/Q4/Q5
Parameters
Remote Type:
Power Supply:
Wireless Type:
All On On/Off
Touch
Lamps
color circle
indicator light
Brightness
slider
4 keys of
3 keys of
scene-mode
scene-mode
Short press: play scene
Long press: save scene
Short press: play scene
Long press: save scene
4 zone
On/Off keys
1. Static red
4. Static yellow
7. Static white
10. RGB color smooth
Q series remote
Direct connect
WiFi gateway
RF relay
Working Temp.:
4 zones control -20℃~55℃
7th battery × 2 Package:
L166×W47×H22(mm)
Weight(G.W.): 85g
RF 2.4GHz
Q4
Mode
Short press: switch mode
Long press: adjust speed
Touch
color circle
Brightness
slider
White light key
Short press: On/Off
Long press: adjust brightness
1 4
3
2
On
4 zone
Off On/Off keys
Mode
2. Static green 3. Static blue
5. Static purple 6. Static cyan
8. RGB jumping 9. 7 Colors jumping
11. 7 colors smooth 12. Static black
(only turn off RGB)
RF
Wireless driver
RF
Wireless driver
DMX512
DMX driver
12-24Vdc
DMX512
DMX LED driver
RF to DMX
0-10V
0-10V LED driver
RF to 0- 10V
Phase-cut
Triac LED driver
RF to phase-cut
Dimensions
15
42
Q series remote
Q5
On/Off
Lamp
indicator light
Color
temperature
slider
2 keys of
scene-mode
Short press: play scene
Long press: save scene
1 4
3
2
On
Off
Mode
1. Red green jumping 2. Green blue jumping
4. RGB jumping 5. 7 Colors jumping
7. Green blue smooth 8. Red blue smooth
10. 7 Colors smooth
46
19
Remote holder
Mode
Short press: switch mode
Long press: adjust speed
Touch
color circle
RGB
adjusting key
Short press: On/Off RGB
Long press: adjust RGB brightness
CT adjusting key
Short press: On/Off CT
Long press: adjust CT brightness
4 zone
On/Off keys
3. Red blue jumping
6. Red green smooth
9. RGB smooth
