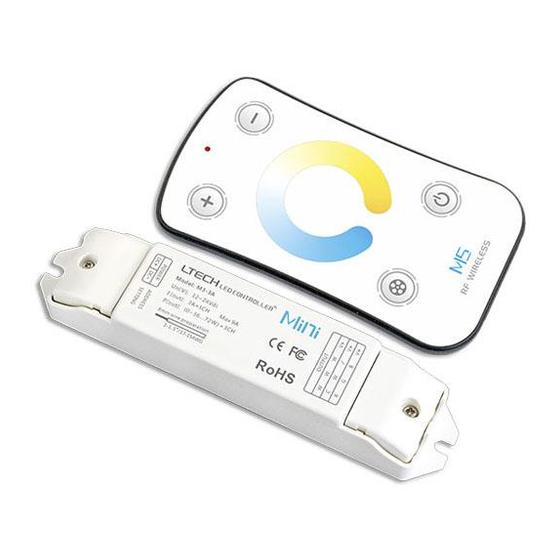

Ltech Mini M2 Quick Start Manual

M ini series LED controller reflected LTECH 12 years' powerful independent R&D ability in LED field, Its volume
is only 1/3 of the conventional controller, but can implement features such as dimming, RGB and color temperature
control. Its high cost performance and creative design, allowing users to enjoy the benefits and convenience.
1. Parameter:
Receiver:
Model: M3-3A
Power Input: 12 24V DC
~
Max Current Load: Max 3Ax3CH
Max Output Power: 108W(12V) 216W(24V)
/
Working Temp.: ℃ ℃
-30 ~55
Dimensions: L135×W30×H20(mm)
Weight(N.W.): 47g
Total Weight(G.W.): 135g
M2
LED controller
RF WIRELESS
Remote:
Model: M2/M5
Working Voltage: 3V (battery CR2032)
Working Frequency: 433.92MHz
Remote Distance: 30m
Working Temp.: ℃ ℃
-30 ~55
Dimensions: L104×W58×H9(mm)
Weight(N.W.): 42g
1
2. Feature:
M5
A. RF remote is fashionable, slim, light and easy to carry while receiver is small, exquisite and easy to install.
B. RF remote with low power consumption, long distance, strong obstructions penetrating ability, independent ID
interference-free and other properties.
C. 4096/road grey scale (most of them is 256 in the market), high grayscale performance is more outstanding, the
light is more gentle, dynamic changing modes become more rich and colorful.
D. One receiver compatible with six different functions of the remote, that is use one receiver can experience
dimming, color temperature and RGB control.
E. RF remote is simple and intuitive to use, a variety of actions at a glance, what you see is what you get.
F. Automatic sleep mode, when the touch remote unattended operation over 30s, it can automatically enter
standby mode to extend battery life.

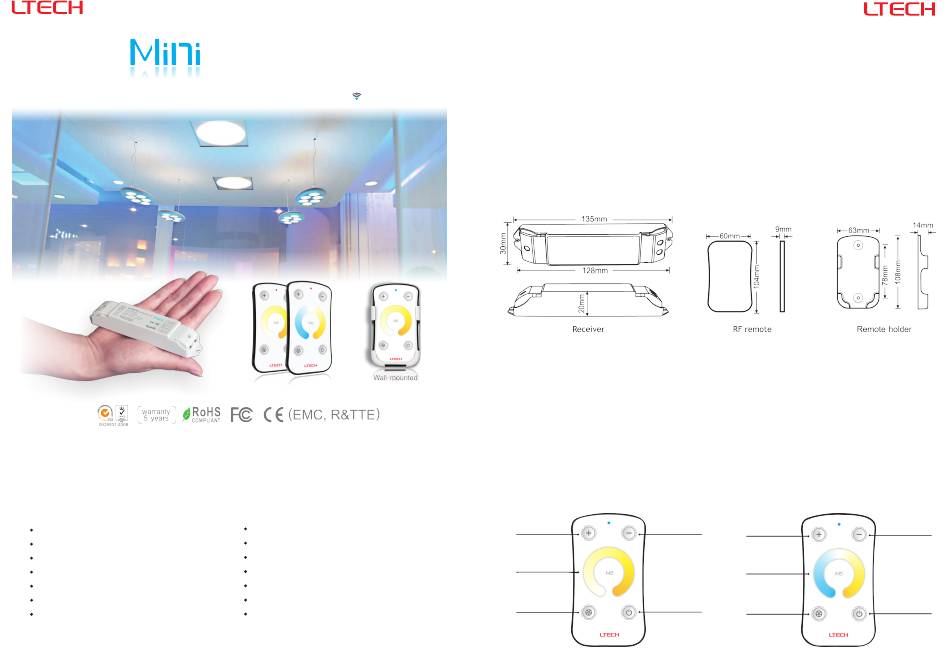

3. Product Size:
4. The Learning ID Method of Remote Control:
Remote control has been matched to the receiver before leave factory, if deleted accidentally, you can learn ID
as follow.
Learning ID: Short press ID learning button on the receiver M3-3A, the running light is on, then press any key
on the remote control M2/M5, the running light flashes several times, activated.
Cancel ID: Long press ID learning button on the receiver
Attn: one receiver can be matched with max 10 same or different kinds remote.
5. Operating Instruction for Remote Control :
Sleep Mode:
when the remote unattended operation over 30s, it can automatically enter standby mode to
extend battery life.
Speed/Brightness+
Touch
Color Circle
Mode Key
NW( neutral white)
-WW(warm white)
smooth
2700K-5500K
for 5 seconds .
press any of these four keys to continue.
Speed/Brightness- Speed/Brightness+
Touch
Color Circle
ON/OFF
Mode Key
NW-CW smooth,
2700K-7500K
2
Speed/Brightness-
ON/OFF
www.ltechonline.com
