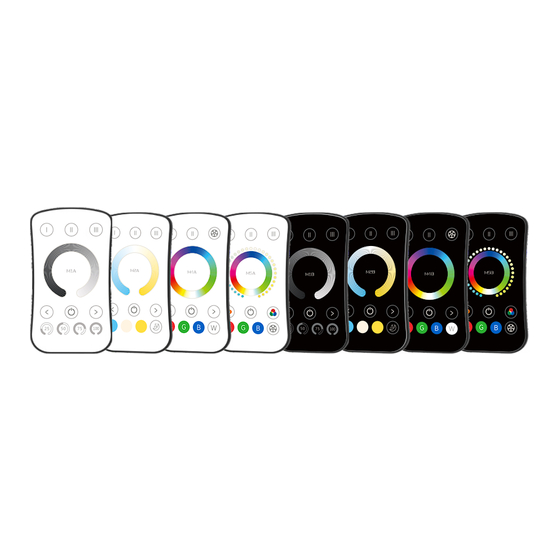

Ltech M1A Manual

MINI LED Remote
(Single-zone)
The MINI series LED remotes use RF 2.4GHz wireless transmission technology and the control distance (under no
interference) can be up to 30 meters.
Connect to a P5 controller with 5 channel outputs which supports DIM/CT/RGB/RGBW/RGBCW light. One remote can
control a large amount of controllers within the effective range to achieve different functions, such as turning lights on/off,
adjusting brightness, CT, static RGB color, effects of dynamic modes, and recalling scenes, which meet the needs of users
for different lighting applications.
Dimming remote (M1A/M1B) has brightness shortcuts that allow you to switch the brightness percentage with one press;
CT remote (M2A/M2B) has the night light function that allows you to switch to low brightness with one press; RGBW
remote (M4A/M4B) and RGBCW remote (M5A/M5B) allow you to switch dynamic modes through the mode button, as well
as to loop playing the effects of 12 modes through pressing different buttons together.
Technical parameters
Model M1A M1B M2A
Color White Black White
DIM CT
Dimming mode
Wireless protocol RF
2.4GHz
Working voltage 3Vdc (Button battery Cr2032×1)
Standby current <2uA
Distance of remote 30M (Under no interference)
-30°C~55°C
Working temp.
Weight 40g±10g
Dimensions 104×58×9mm ( Remote , ) 108×63×14mm (
M2B M4A M4B M5A M5B
Black White Black White Black
RGBW RGBCW
Remote + Holder )
1
Dimensions
9mm
58mm
104mm
Remote
Product installation
：
Two ways to fix the remote holder
1.
Fix the remote holder in the wall with two screws.
2.
Fix the remote holder in the wall with a 3M adhesive.
MINI LED
14mm
63mm
78mm
108mm
Remote holder
Note: Please pull out the battery tab before first use
2
Remote
