Ltech T2 Manual

LED Color Temperature Controller
T3-CV

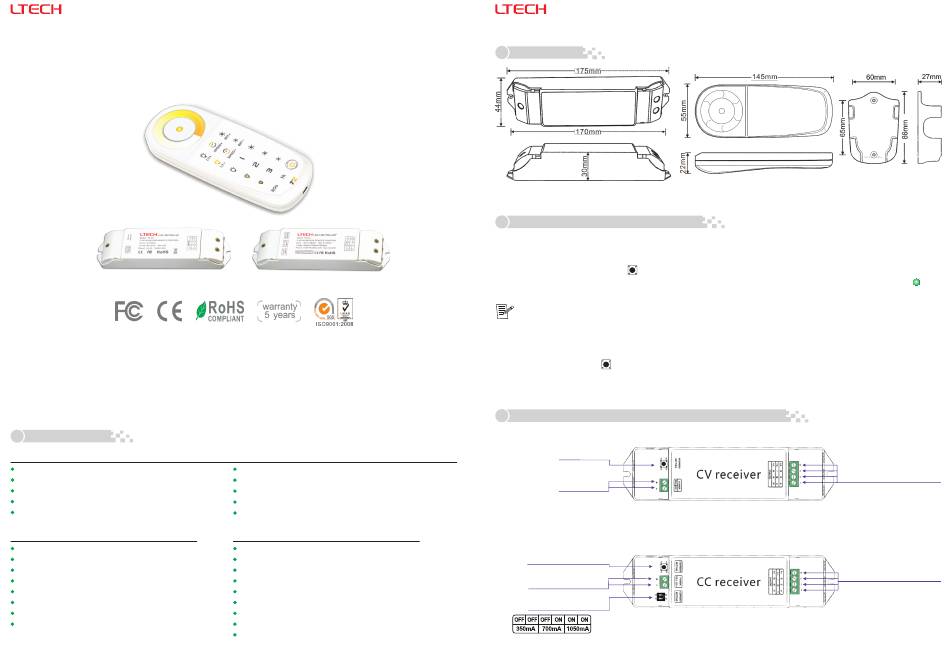

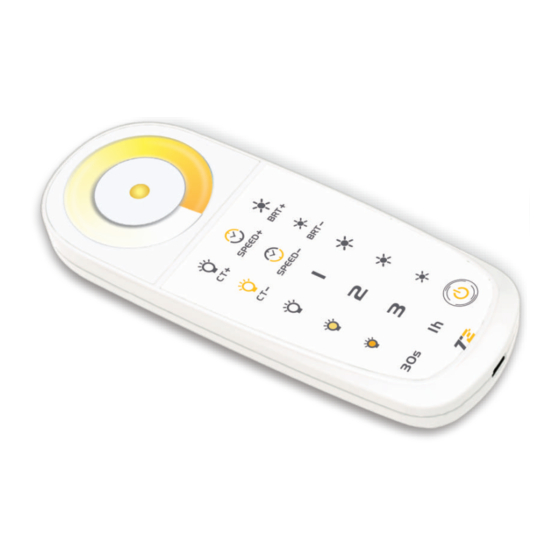

T2 is the 2.4GHz RF wireless synchronization color temperature controller which adopts LTECH multiple
global initiate technology, the control system consists of two parts, the RF remote control and the receiver,
realize the signal synchronization on unlimited receivers within effective distance, a very good solution for the
LED project needs sync control wirelessly.
Can RF remote the functions of color temperature dimming, quick color temperature/brightness selection, DIY
and delay off and so on. User-friendly color wheel for color temperature adjustment, unique LED state light
for sync change indicated, user can simply know the LED working state from distance by checking the remote
control.
1. Technical Specs:
T2 Remote Control
Input Voltage: DC5V Built-in Lithium Battery
≤30mA
Working Current:
Working Frequency: 2.4GHz
RF Remote Distance: 30m
Remote Option: sync control unlimited receivers
T3-CV Receiving controller
Input voltage: DC5V-DC24V
Max current load: 6A×2CH Max 12A (CT control)
Max output power: 60W/144W/288W(5V/12V/24V)
Compatible remote control: T1/T2/T2M/T3/T3M/T3X
Working temperature: -30℃~55℃
Dimension: L175×W44×H30(mm)
Package size: L178×W48×H33mm
Weight (G.W.): 140g
T2 2.4G LED Color Temperature Controller Manual
T2
T2
T3-CC
Battery Capacity: 1000mAh
≤6 Months
Standby Time:
Dimensions: L145×W55×H22(mm)
Package Size: L168×W102×H28(mm)
Weight (G.W.): 200g
T3-CC Receiving controller (current 3 in 1)
Input voltage: DC12V-DC48V
Output voltage: DC3V-DC46V
Output current: CC 350/700/1050mA ×2CH (CT control)
Output power: 1.05W~48.3W ×2CH Max 96.6W
Compatible remote control: T1/T2/T2M/T3/T3M/T3X
Working temperature: -30℃~55℃
Dimension: L175×W44×H30(mm)
Package size: L178×W48×H33mm
Weight (G.W.): 150g
1
2. Product Size:
T3-CV/T3-CC
3. The learning ID method of remote control:
Learning ID:
1. Turn on the receiver and remote control
2. Short press "ID learning button" on the receiver, the running light keeps on, then long press any keys
(except on/off key) on the remote, the running light returns to flash (the buzzer long beep, the indicator light
flashes 3 times), activated successful.
If you want to control multiple receivers synchronously, just follow the above instructions for each receiver.
Cancelling ID:
1. Turn on the receiver and remote control.
2. Press "ID learning button" on the receiver more than 8 seconds, the buzzer beep twice, delete all the learned remote.
4. Components Description for Receiver and Remote Control:
Remote ID
Learning Button
DC5V~24V
Power Input Socket
Remote ID
Learning Button
DC12V~48V
Power Input Socket
Current selection switch
(Method of operation see below form)
T2 2.4G LED Color Temperature Controller Manual
T2 RF remote control Remote holder
LED Lamp Connected Socket
T3-CV
LED Lamp Connected Socket
T3-CC
2
