Ltech T1 Quick Start Manual

LTECH
LED RGB Controller
ISO9001:2008

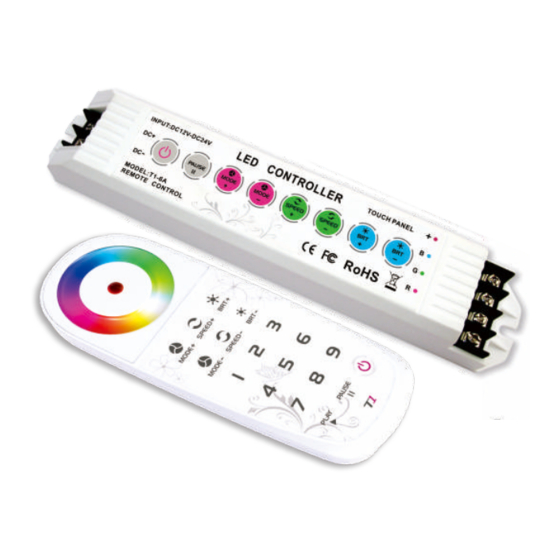

The Intelligent LED color touch controller TI is our latest development of human body
touch and multi-functional RGB controller.
The control system consists of two parts, the remote control and controller, built-in 32
changing modes, adopt the advanced PWM (pulse-width modulation) control technology,
smooth changing effect and no flickering on the led light, with a high power MOS driver,
the maximum current load of RGB channels could reach to 18A.
unique touch technology, the controller comes with 8 touch keys, you can select the
functions of switch, pause, changing modes, speed and LED brightness, all functions can
be remote controlled at a long distance, RF remote control has 16-bit color selections on
the full-color circle ; controller can automatically adapt to the input voltage of DC 12V-24V,
suitable for most conventional low-voltage RGB LED light.
1. Technical Specs
Remote Control
Model: T1
Input voltage: DC5V built-in Lithium battery
Working current: 30mA
Working frequency: 2.4GHZ
transmitting distance: ≤30meter
transmitting rate: 500Kbps
Battery capacity: 1000mAh
Standby time:1 year
Normal using time: 30 days
Charge time: <4 hours
Number of Charge cycles: 500 times
Dimension: L145×W55×H22(mm)
Package Size: L165×W76.5×H59(mm)
Weight (G.W): 200g
ZHUHAI LTECH ELECTRONIC TECHNOLOGY CO., LTD.
T1 LED RGB Controller Manual
T1
RoHS
warranty
3 years
COMPLIANT
Controller
Power supply chose: DC CV SMPS
Model: T1-6A
Input voltage: DC12V～DC24V
Max current load: 6AX3CH Max 18A
Max output power: 216W/432W(12V/24V)
Change mode: 32 Fantastic modes
Control button: 8 touch buttons
Scale levels: 65536 steps per RGB (16 Bits/CH)
Working temperature: -30℃～55℃
Dimension: L211×W40×H30(mm)
Package Size: L215×W42×H32(mm)
Weight (G.W): 180g
1
Tel: +86 756 620 8823
LTECH

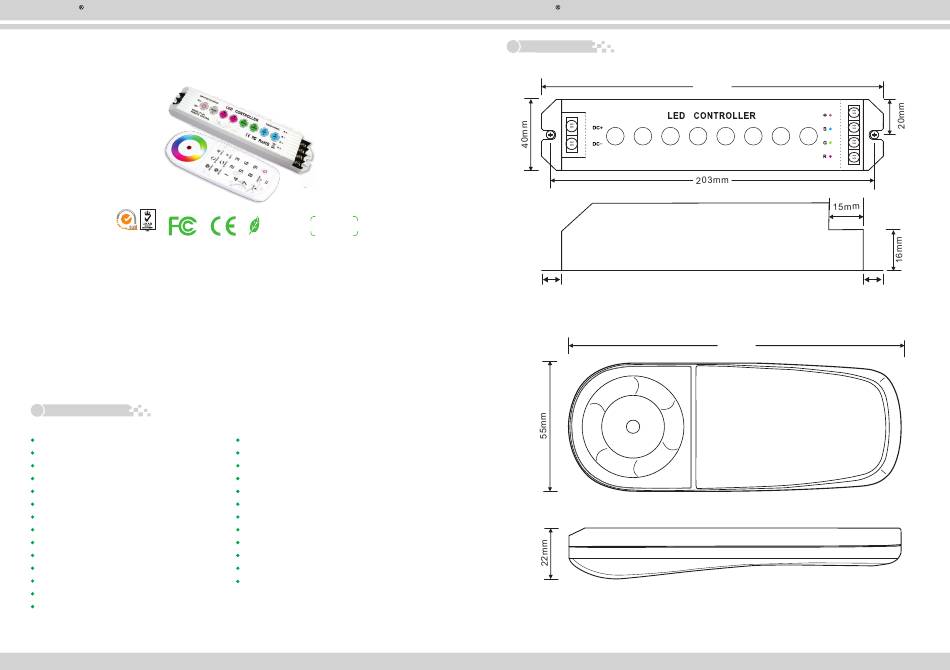

2. Product size
10mm
Fax: +86 756 620 8833
LT@LTECHONLINE.COM
T1 LED RGB Controller Manual
211mm
10mm
145mm
2
WWW.LTECHONLINE.COM
