SL5000

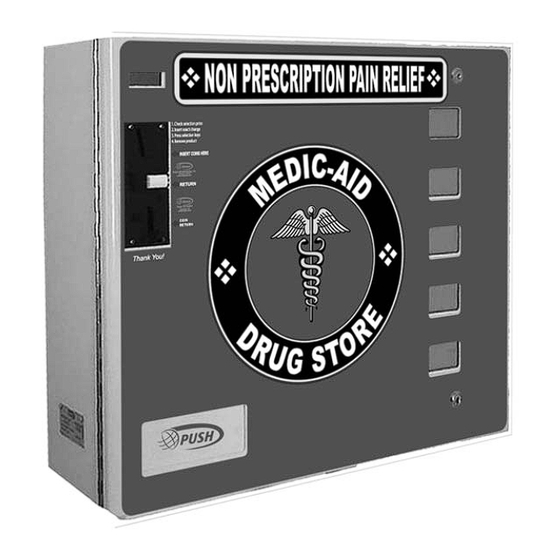

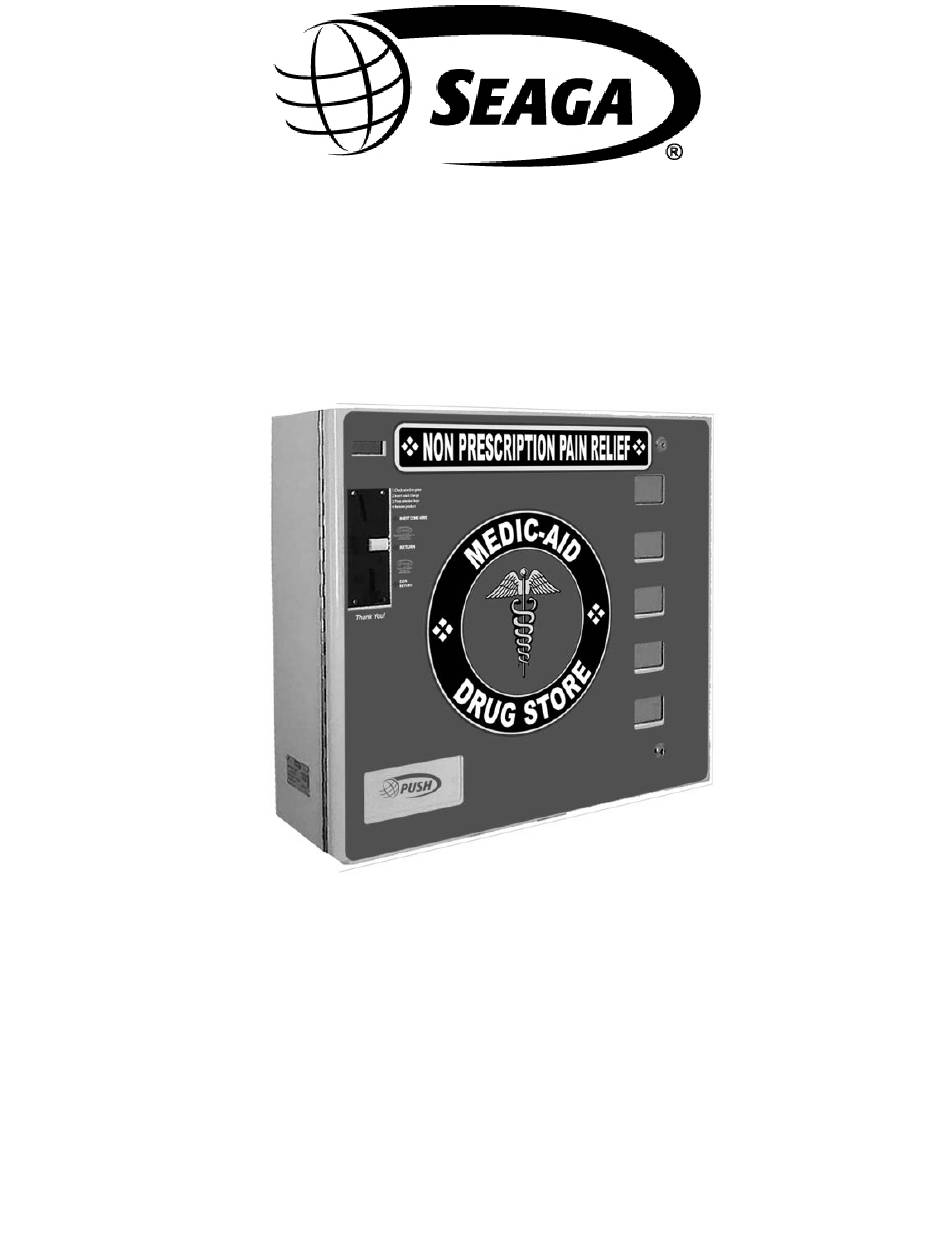

Operator's Manual
Rev. 2012.02.27
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL5000 and is the answer not in the manual?

Questions and answers

Related Manuals for Seaga SL5000

Summary of Contents for Seaga SL5000

  • Page 1 SL5000 Operator’s Manual Rev. 2012.02.27...

  • Page 2: Equipment Inspection

    READ THIS MANUAL COMPLETELY Your SL5000 is designed to operate simply and reliably, but to take full advantage of your vendor, please read this owner’s manual thoroughly. It contains important information regarding installation and operations, as well as a brief trouble-shooting guide.
  • Page 3 Coin Box HOW TO LOCK & UNLOCK THE DOOR OF VENDOR Your SL5000 has 2 locks. To open the door, unlock the top and bottom locks by turning the keys clockwise. ELECTRICAL CONNECTION The SL5000 may be driven by a 12-volt battery or via a permanent 12 VDC supply obtained through an AC/DC adapter.

  • Page 4: Service Mode

    BATTERY MODE OF OPERATION During Battery mode, the machine operates in ‘Sleep Mode’. This means that when the machine is not in operation (between vends), it will automatically shut down in order to save battery power, thus prolonging the life of the battery. During ‘Sleep Mode’...
  • Page 5 Where * is the current state (0 or 1) Pressing Service Button (STOCK MODE On/Off) Displays St.0* Where * is the current state SL5000 – (NEGATIVE COUNTERS) (0 or 1) Pressing Service Button (TEST MODE) Displays tE.-- Pressing Service Button (TEST ALL MOTORS) Displays AL.--...
  • Page 6 Press Selection 5 to : show the total cash OUT($) and (c) Displays ****and--. ** then negative counter values (selection n, count xx) Displays 0n.xx then the “no load” battery voltage Displays **.*0 then the “under load” battery voltage Displays **.*0 Press Service Button to scroll to exit.
  • Page 7 Negative Counter Setting This menu option, only available within the SL5000 version of the software allows the maximum capacity to be set for each selection. When the stock is “filled” (A or B button) these are the numbers that are loaded into the negative counters.

  • Page 8: Test Mode

    2. Press Selection Button 1 to increment the 0s.--. Value Displays 0s.nn (the selection number, 01 – 05, nn is the current negative counter capacity for this selection) 3. Press Selection Button 2 to decrement the 0s.--. Value (the selection number, 1 – 5, nn is the current negative Displays 0s.nn counter capacity for this selection)
  • Page 9 Hard* Errors – the unit is put out of service until the battery is replaced/recharged and the service button is pressed to clear the error conditions. MOTOR ASSIGNMENT The following details would be helpful in a proper assignment of the Motor version. The SL5000 uses Seaga 3 wire 12v DC gray motor. Motor Version Map...
  • Page 10 To Change .. do the following: 1. Press the Red Service Button till AS Displays AS-* where * is the current version # 2. Press Button 1 (or 2) to increment/decrement Version # Displays AS.0? where ? is version 1 to 6 3.
  • Page 11 3.Press Selection Button 2 to decrement the **.- - Value i.e shelf selection no (** no. of shelf). The LCD will now display the decremented shelf selection no. The Shelf for which the Negative Counter has to be set has now been decided ; We now need to set the value of the Negative Counter for the selected shelf.
  • Page 12 Note: a). Safety Feature : Button B will only be operational from the moment that any of the Negative Counters have reached to zero value. If none of the neg. counters are zero, then pressing button no. B will not yield any results. b).

  • Page 13: Factory Default Setting

    FACTORY DEFAULT SETTING The SL5000 can be reverted back to factory defaults by the user by entering service code AP.-- Care must be taken while doing this as all data will be lost and will have to be entered again.

  • Page 14: Software Version

    Check Prices and Coin data Machine Lock-up Code Required-Consult Machine Supplier Note: * Reserved Codes – Not present in current SL5000 model SOFTWARE VERSION Currently the VMC is powered by a Flash Based Micro-Controller Integrated Circuit. Flash based technology is the latest of its kind and is unique in that all data is retained within the IC even on power loss.

  • Page 15: Coin Validator

    Coin Validator can be set to accept the new golden dollar One (1) coin box is provided with your SL5000, it is stored in the bottom left side inside the machine (Fig. 3). Once the front door is opened, pull out the coin box to empty it.

  • Page 16: Limited Warranty

    Seaga will repair or replace, at our option, any covered part which meets the provisions herein during the warranty period. It is our discretion to replace defective parts with remanufactured parts. Seaga reserves the right to make changes or improvements in its products without notice and without obligation, and without being required to make corresponding changes or improvements in equipment already manufactured or sold.
