4.4.4 Meter Pages

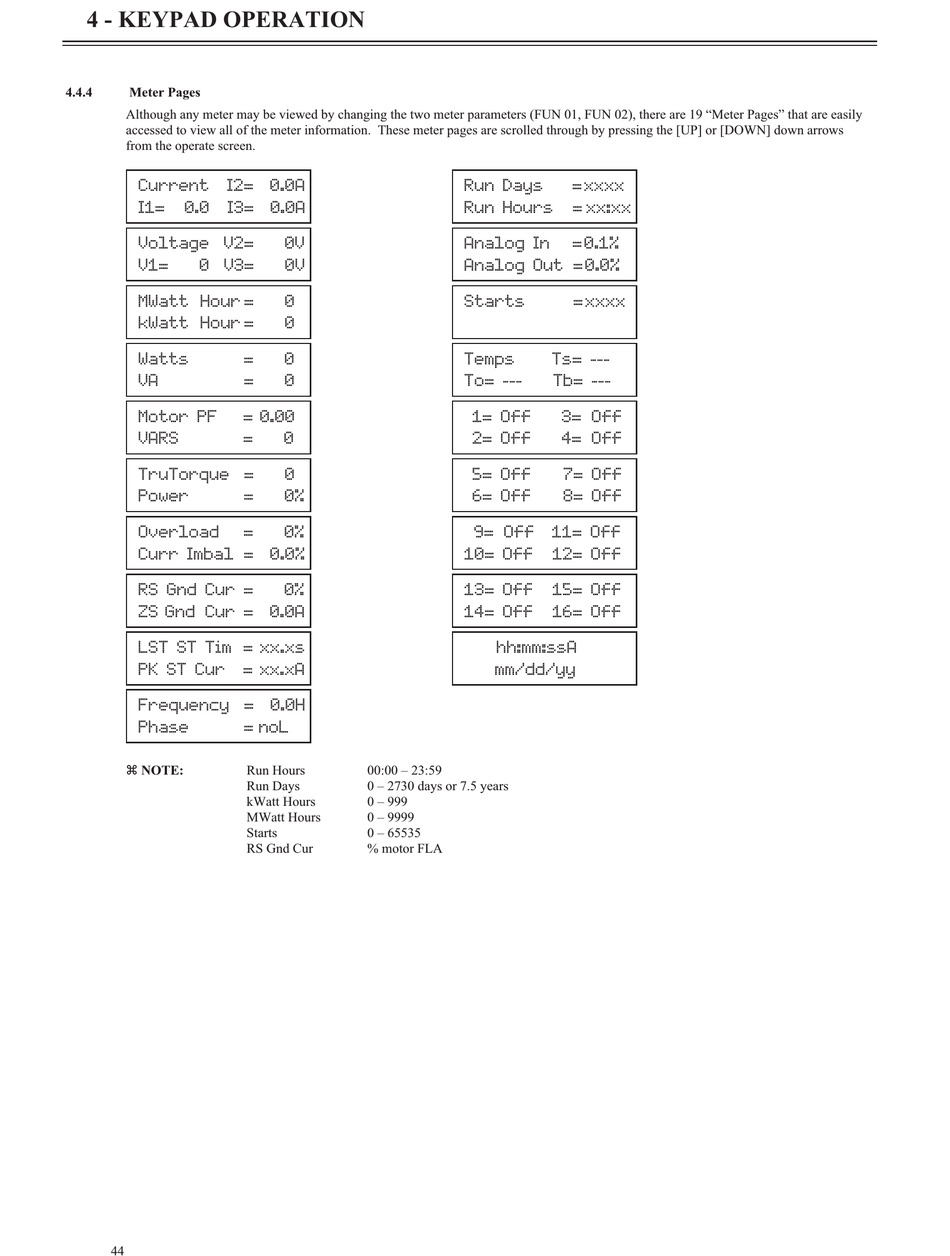

Although any meter may be viewed by changing the two meter parameters (FUN 01, FUN 02), there are 19 "Meter Pages" that are easily
accessed to view all of the meter information. These meter pages are scrolled through by pressing the [UP] or [DOWN] down arrows
from the operate screen.
Current I2= 0.0A
I1= 0.0 I3= 0.0A
Voltage V2=
V1= 0 V3=
MWatt Hour =
kWatt Hour =
Watts =
VA =
Motor PF = 0.00
VARS =
TruTorque =
Power =
Overload =
Curr Imbal = 0.0%
RS Gnd Cur =
ZS Gnd Cur = 0.0A
LST ST Tim = xx.xs
PK ST Cur = xx.xA
Frequency = 0.0H
Phase = noL
z NOTE:
44
0V
0V
0
0
0
0
0
0
0%
0%
0%
Run Hours 00:00 – 23:59
Run Days 0 – 2730 days or 7.5 years
kWatt Hours 0 – 999
MWatt Hours 0 – 9999
Starts 0 – 65535
RS Gnd Cur % motor FLA
Run Days =xxxx
Run Hours = xx:xx
Analog In =0.1%
Analog Out =0.0%
Starts =xxxx
Temps Ts= ---
To= --- Tb= ---
1= Off 3= Off
2= Off 4= Off
5= Off 7= Off
6= Off 8= Off
9= Off 11= Off
10= Off 12= Off
13= Off 15= Off
14= Off 16= Off
hh:mm:ssA
mm/dd/yy
