710-21969-00A
©2020 Benshaw, Inc
Benshaw retains the right to change specifications and illustrations in text without prior notification.
The contents of this document may not be copied without the explicit permission of Benshaw.

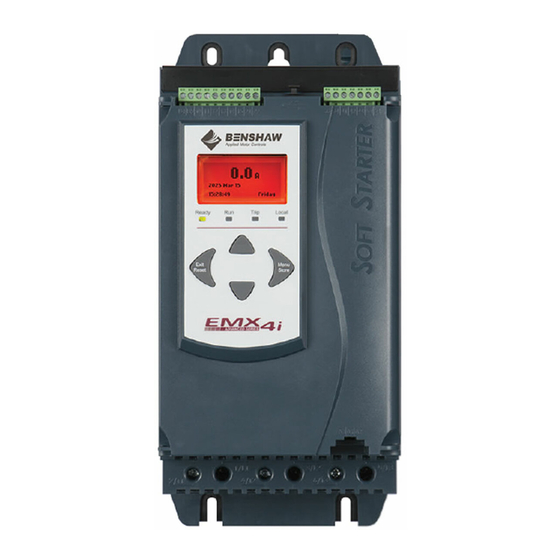

Ethernet/IP
Communications option
for EMX4e/EMX4i soft starters
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMX4e and is the answer not in the manual?

Questions and answers

Summary of Contents for BENSHAW EMX4e

  • Page 1 Communications option for EMX4e/EMX4i soft starters User Guide 710-21969-00A ©2020 Benshaw, Inc Benshaw retains the right to change specifications and illustrations in text without prior notification. The contents of this document may not be copied without the explicit permission of Benshaw.
  • Page 2 Product Compatibility This expansion card is suitable for use with EMX4e and EMX4i soft starters. Product description Soft starter name Basic model EMX4e Advanced model EMX4i Parameter Management Parameter lists vary according to the model and version of soft starter.
  • Page 3: Table Of Contents

    Ethernet/IP Card Disclaimer Contents Disclaimer ..........................1 Warnings ..........................1 Important User Information ....................1 Installation ..........................2 Device Configuration ......................3 Scanner Configuration ......................5 Operation ..........................6 Implicit Messaging (Cyclic Operation) ................7 Explicit Messaging (Acyclic Operation) ................9 Attributes ..........................
  • Page 4: Installation

    Installation Ethernet/IP Card Installation Installing the Expansion Card 1. Push a small flat-bladed screwdriver into the slot in the centre of the expansion port cover, and ease the cover away from the starter. 2. Line up the card with the expansion port. Gently push the card along the guide rails until it clicks into the starter.
  • Page 5: Device Configuration

    Ethernet/IP Card Device Configuration Device Configuration NOTE The Error LED flashes whenever the device is receiving power but is not connected to a network. The Error LED will flash occasionally during the configuration process. Configuration Methods Network communication parameters for the card should be set via the soft starter (via the Main Menu or by uploading a configuration file via USB Save &...
  • Page 6 Device Configuration Ethernet/IP Card On-board Web Server To configure settings using the on-board web server, the card must be installed in a soft starter, control power must be available, and the card and computer must both be connected to the Ethernet network. NOTE If prompted to enter a username and password: username: admin...
  • Page 7: Scanner Configuration

    Ethernet/IP Card Scanner Configuration NOTE: Changes made via the on-board web server are not stored permanently and will be lost when control power is cycled. NOTE If you change the subnet mask, the web server will not be able to communicate with the device after the new settings are saved.
  • Page 8: Operation

    Operation Ethernet/IP Card Operation The Ethernet/IP Card is conformance tested to ODVA. For successful operation, the scanner must also support all functions and interfaces described in this document. NOTE The available features and parameter details may vary according to the model and software version of the starter.
  • Page 9: Implicit Messaging (Cyclic Operation)

    Ethernet/IP Card Implicit Messaging (Cyclic Operation) Implicit Messaging (Cyclic Operation) This section lists requirements related to cyclic (implicit messaging) services for the Ethernet/IP Card. The minimum cyclic interval is 1 ms. All data is in little endian format. Assembly Objects The device supports two assembly objects.
  • Page 10 Implicit Messaging (Cyclic Operation) Ethernet/IP Card Status Information (Assembly Instance 101d) To retrieve status data from the starter, use assembly class 04d (0x04), assembly instance 101d (0x65), attribute 03d (0x03). Bytes 0-1: Starter state Bits Function Details Ready 0 = Not ready 1 = Ready to start Operating 0 = Program mode...
  • Page 11: Explicit Messaging (Acyclic Operation)

    Ethernet/IP Card Explicit Messaging (Acyclic Operation) Bytes 8-9: Trip code Bits Function Details 0 to 15 Trip code See Trip Codes on page 12. Bytes 10-11: Reserved Bits Function Details 0 to 15 Reserved Explicit Messaging (Acyclic Operation) This section provides information on objects, instances, attributes and services for acyclic operation (explicit messaging).
  • Page 12 Explicit Messaging (Acyclic Operation) Ethernet/IP Card Object Name Class Instance Attribute Soft starter model Changed parameter number Num Parameters Changed parameter value Reserved Starter state 1 = Ready 2 = Starting 3 = Running 4 = Stopping (including braking) 5 = Restart delay (including temperature check) 6 = Tripped 7 = Programming mode 8 = Jog forward...
  • Page 13 Ethernet/IP Card Explicit Messaging (Acyclic Operation) Object Name Class Instance Attribute Digital input state For all inputs, 0 = open, 1 = closed (shorted) Start/stop input = 01h, Reset = 04h, Programmable input A = 08h, Programmable input B = 10h Class 104 Objects (Read Only) Class 104d (0x68) allows extended information to be read from the soft starter.
  • Page 14: Attributes

    Attributes Ethernet/IP Card Status code Status name Details 09d (0x09) Invalid attribute value This code only applies to the service 'Set Attribute Single'. It is returned if the value is out of range for the mapped register. 15d (0x0E) Attribute not settable This code only applies to the service 'Set Attribute Single'.
  • Page 15 Ethernet/IP Card Attributes Code Trip Type Battery/clock Thermistor circuit RTD/PT100 B Overpower Underpower Keypad disconnected Zero Speed Detect SCR Itsm Instantaneous overcurrent Rating Capacity Current Read Err L1 Current Read Err L2 Current Read Err L3 Remove Mains Volts (mains voltage connected in run simulation) Motor Connection T1 Motor Connection T2 Motor Connection T3...
  • Page 16 Attributes Ethernet/IP Card 10.2 Parameter Lists NOTE The numbering of parameter options via communications starts at 0 (zero). For Phase Sequence, 0=Any Sequence, 1=Positive Only, 2=Negative Only. Advanced model Class 100 Objects (Read/Write) Object Name Object Name Motor Details Current Limit-2 100 131 100 Command Source 100 101 100...
  • Page 17 Ethernet/IP Card Attributes Object Name Object Name Auto-Start/Stop (continued) Underpower Delay 100 181 100 Thursday Stop Time 100 163 100 Overpower 100 182 100 Friday Mode 100 164 100 Overpower Delay 100 183 100 Friday Start Time 100 165 100 Excess Start Time 100 184 100 Friday Stop Time...
  • Page 18 Attributes Ethernet/IP Card Class 101 Objects (Read/Write) Object Name Object Name Protection Actions (continued) Display Network Communications 101 100 100 Language 101 133 100 101 101 100 101 134 100 Remote Keypad Fault Temperature Scale 101 102 100 101 135 100 Frequency Graph Timebase Phase Sequence...
  • Page 19 Ethernet/IP Card Attributes Object Name Object Name Communications Card (continued) Advanced Subnet Mask 101 168 100 Tracking Gain 101 174 100 Subnet Mask 2 101 169 100 Pedestal Detect 101 175 100 Subnet Mask 3 101 170 100 Bypass Contactor Delay 101 176 100 Subnet Mask 4 101 171 100...
  • Page 20 Attributes Ethernet/IP Card Basic model Class 100 Objects (Read/Write) Object Name Object Name Motor Details Input A Trip 100 134 100 Command Source 100 101 100 Input B Trip 100 135 100 Motor Full Load Current 100 102 100 Network Communications 100 136 100 Locked Rotor Time 100 103 100...
  • Page 21 Ethernet/IP Card Attributes Object Name Object Name Display Modbus Timeout 100 183 100 Language 100 167 100 Devicenet Address 100 184 100 Temperature Scale 100 168 100 Devicenet Baud Rate 100 185 100 Graph Timebase 100 169 100 Profibus Address 100 186 100 Graph Maximum Adjustment 100 170 100...
  • Page 22: Network Design

    Network Design Ethernet/IP Card Network Design The device supports star, line and ring topologies. 11.1 Star Topology In a star network, all controllers and devices connect to a central network switch. 11.2 Line Topology In a line network, the controller connects directly to one port of the first card. The second Ethernet port connects to another card, which in turn connects to another device until all devices are connected.
  • Page 23 Ethernet/IP Card Network Design 11.3 Ring Topology In a ring topology network, the controller connects to the first card, via a network switch. The second Ethernet port of the card connects to another device, which in turn connects to another device until all devices are connected. The final device connects back to the switch.
  • Page 24: Specifications

    Specifications Ethernet/IP Card Specifications Connections Soft starter ..................6-way pin assembly Contacts ....................... Gold flash Network ........................RJ45 Settings IP address ............... Automatically assigned, configurable Device name ............Automatically assigned, configurable Network Link speed ..............10 Mbps, 100 Mbps (auto-detect) Full duplex Auto crossover Power...
  • Page 26 BENSHAW 615 Alpha Drive Pittsburgh, PA 15238 Phones: (412) 968-0100 Fax: (412) 968-5415 BENSHAW Canada 550 Bright Street Listowel, Ontario N4W 3W3 Phone: (519) 291-5112 Fax: (519) 291-2595 È710-21969-00AÆËÍ 7 1 0 - 2 1 9 6 9 - 0 0 A...
