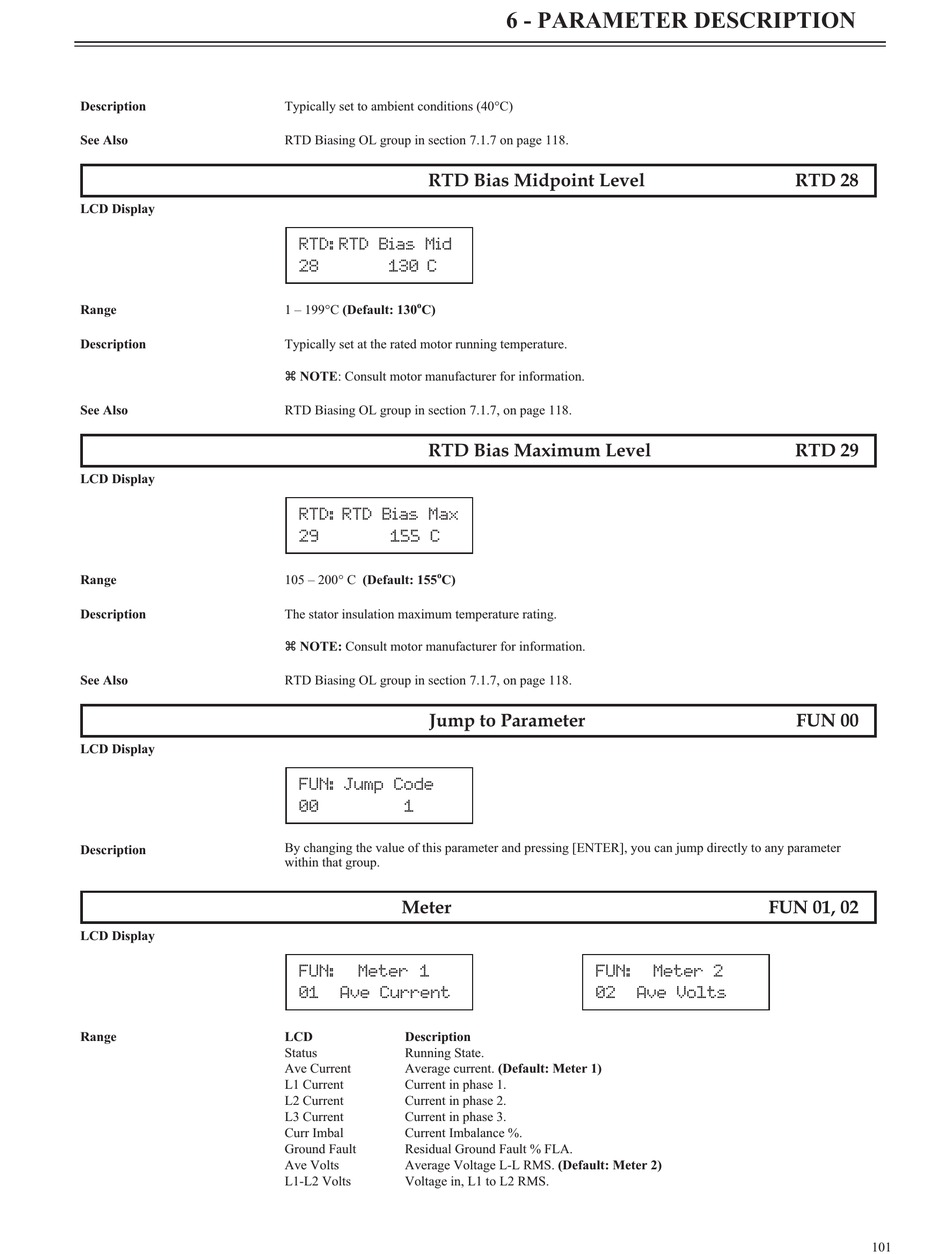

Description
See Also
LCD Display
Range
Description
See Also
LCD Display
Range
Description
See Also
LCD Display
Description
LCD Display
Range
Typically set to ambient conditions (40°C)
RTD Biasing OL group in section 7.1.7 on page 118.
RTD Bias Midpoint Level
RTD: RTD Bias Mid
28 130 C
o
1 – 199°C (Default: 130 C)
Typically set at the rated motor running temperature.
z NOTE: Consult motor manufacturer for information.
RTD Biasing OL group in section 7.1.7, on page 118.
RTD Bias Maximum Level
RTD: RTD Bias Max
29 155 C
o
105 – 200° C (Default: 155 C)
The stator insulation maximum temperature rating.
z NOTE: Consult motor manufacturer for information.
RTD Biasing OL group in section 7.1.7, on page 118.
Jump to Parameter
FUN: Jump Code
00 1
By changing the value of this parameter and pressing [ENTER], you can jump directly to any parameter
within that group.
Meter
FUN: Meter 1
01 Ave Current
LCD Description
Status Running State.
Ave Current Average current. (Default: Meter 1)
L1 Current Current in phase 1.
L2 Current Current in phase 2.
L3 Current Current in phase 3.
Curr Imbal Current Imbalance %.
Ground Fault Residual Ground Fault % FLA.
Ave Volts Average Voltage L-L RMS. (Default: Meter 2)
L1-L2 Volts Voltage in, L1 to L2 RMS.
6 - PARAMETER DESCRIPTION
FUN: Meter 2
02 Ave Volts
RTD 28
RTD 29
FUN 00
FUN 01, 02
