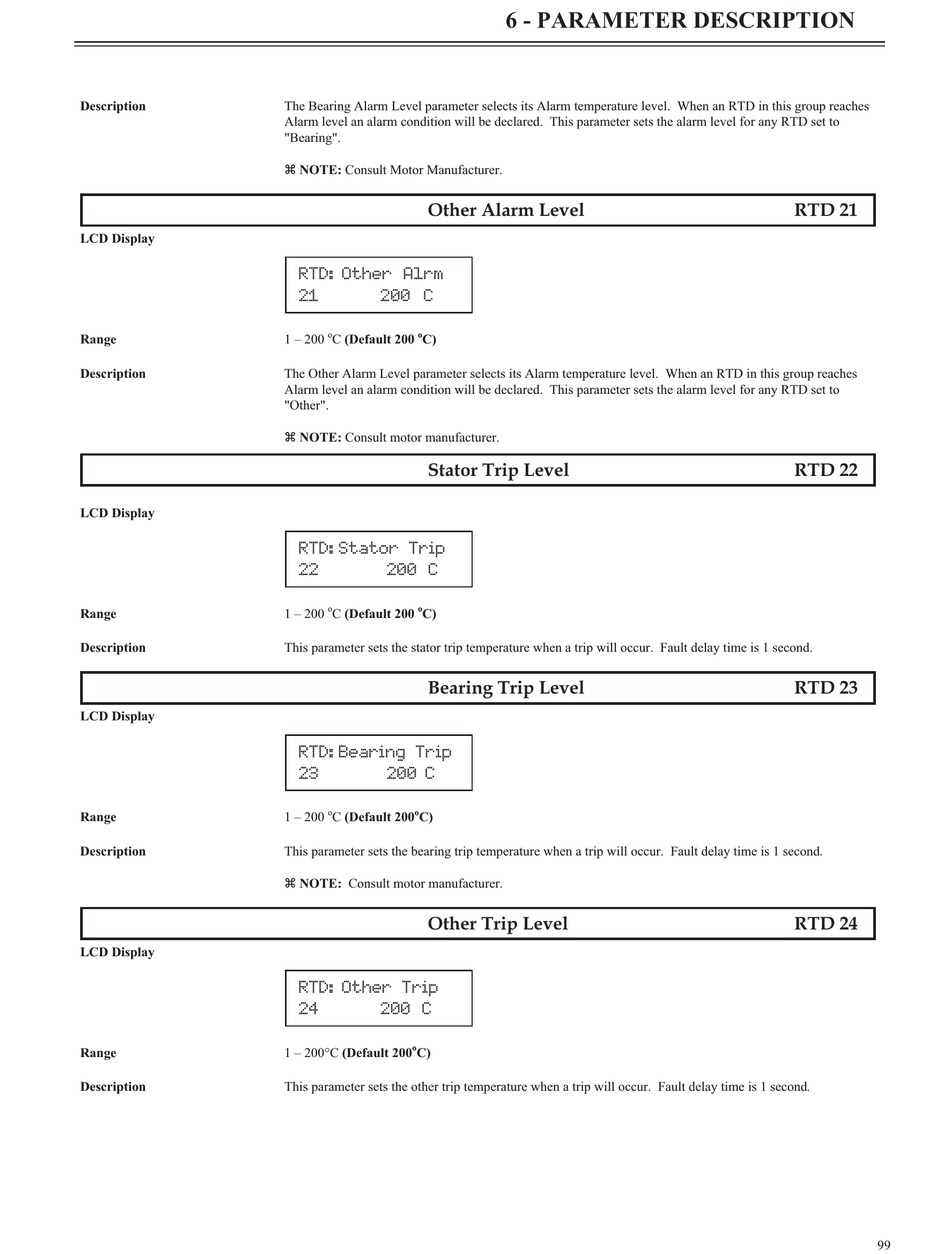

BENSHAW RediStart EXEXMVRMX3 Series User Manual page 109

Description
LCD Display
Range
Description
LCD Display
Range
Description
LCD Display
Range
Description
LCD Display
Range
Description
The Bearing Alarm Level parameter selects its Alarm temperature level. When an RTD in this group reaches
Alarm level an alarm condition will be declared. This parameter sets the alarm level for any RTD set to
"Bearing".
z NOTE: Consult Motor Manufacturer.
Other Alarm Level
RTD: Other Alrm
21 200 C
o
o
1 – 200 C (Default 200
C)
The Other Alarm Level parameter selects its Alarm temperature level. When an RTD in this group reaches
Alarm level an alarm condition will be declared. This parameter sets the alarm level for any RTD set to
"Other".
z NOTE: Consult motor manufacturer.
Stator Trip Level
RTD: Stator Trip
22 200 C
o o
1 – 200 C (Default 200 C)
This parameter sets the stator trip temperature when a trip will occur. Fault delay time is 1 second.
Bearing Trip Level
RTD: Bearing Trip
23 200 C
o o
1 – 200 C (Default 200 C)
This parameter sets the bearing trip temperature when a trip will occur. Fault delay time is 1 second.
z NOTE: Consult motor manufacturer.
Other Trip Level
RTD: Other Trip
24 200 C
o
1 – 200°C (Default 200 C)
This parameter sets the other trip temperature when a trip will occur. Fault delay time is 1 second.
6 - PARAMETER DESCRIPTION
RTD 21
RTD 22
RTD 23
RTD 24
