3
EXMVRMX

Terminal Block Layout

3
3.10 EXMVRMX Terminal Block Layout
J1
Remote
RTD Module(s)
RJ45 Socket
J3
Relay
Outputs
R4 to R6
J6
Digital
Inputs
DI4 to DI8
J7
MOT PTC
Motor
Thermistor
J8
LINE
Voltage Divider
Card
J9
LINE PTs
J10
Phase CTs
J13
LOAD
Voltage Divider
Card
J14
LOAD PTs
3

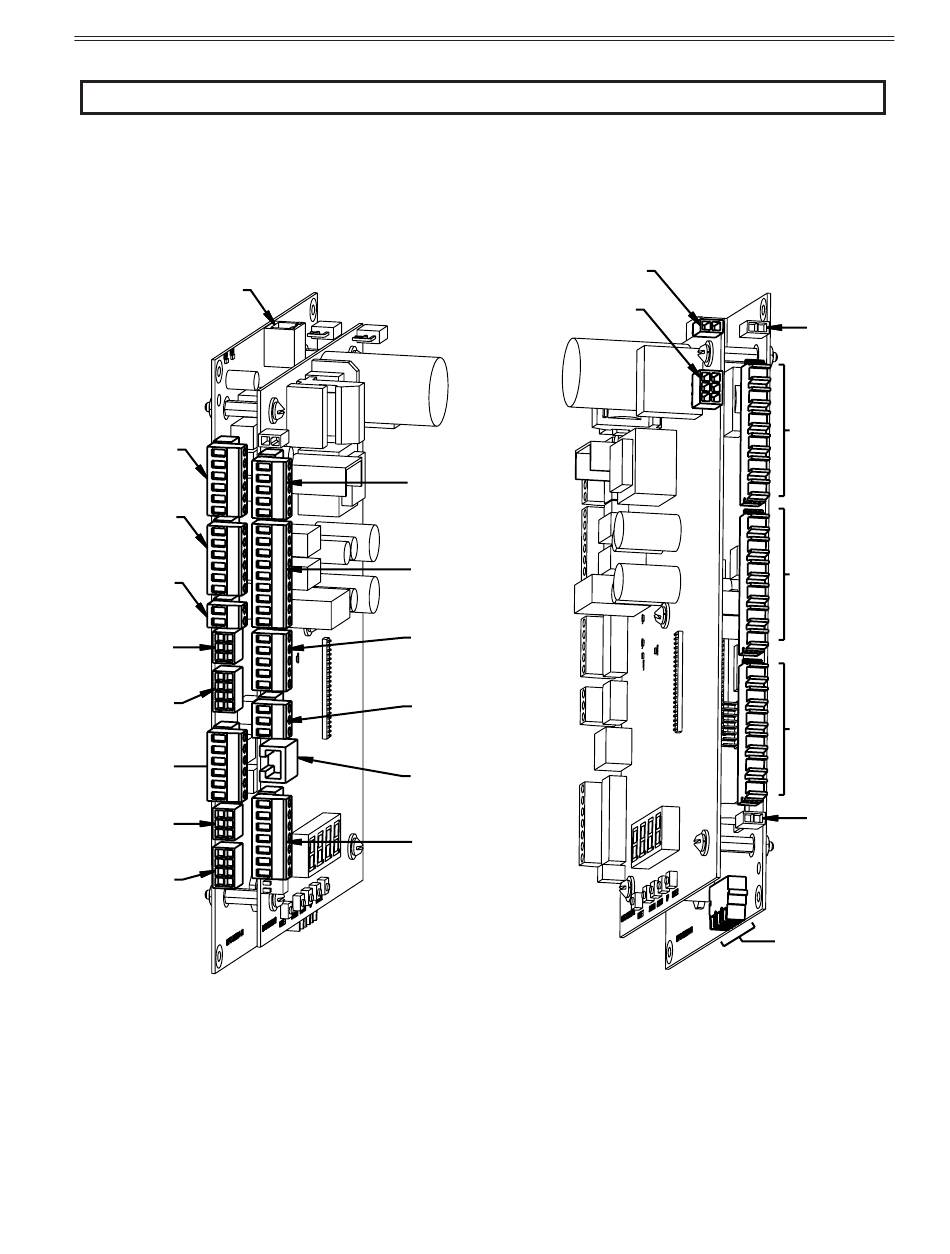

Figure 12: EXMVRMX Terminal Block Layout
TB1
120VAC
Control
Power
Input
TB2
Relay
Outputs
R1 to R3
TB3
Digital
Inputs
DI1 to DI3
TB4
Modbus
Slave
RS485
J2
Remote
Keypad
RJ45 Socket
TB5
Analog I/O
3 - INSTALLATION
J4
Auxiliary Power
J5
Phase Connector
J2
STAT FBK
SCR 1A to 1F
Phase 1
Fiber Optic
SCR 2A to 2F
Phase 2
Fiber Optic
SCR 3A to 3F
Phase 3
Fiber Optic
J15
Zero
Sequence
Ground
Fault CT
S1 to S3
Phase 1 to 3
Stack O/T
Fiber Optic
29
