- Page 1 4 Port Type-C USB 3.1 Gen2 Hub VLI Chip with DIN Rail Mounting Kit Product Manual Coolgear, Inc. Version 1.1 September 2017 Model Number: CG-4P31CHUB www.coolgear.com...
-
Page 2: Revision History
Coolgear New Manual Format About this document This product manual outlines installation and features of the CG-4P31CHUB 4 Port Type- C USB 3.1 Gen2 Hub VLI Chip with DIN Rail Mounting Kit. Scope The scope of this manual is to give the user of the product an understanding of its use with detailed diagrams and verbiage. -
Page 3: Table Of Contents
CG-4P31CHUB – Product Manual Table of Contents 1. Introduction ......................4 Features ........................4 Connector Layout ....................5 Supported USB Devices ................... 5 I/O Hardware ......................6 Environmental Specifications ................. 6 2. Notes, Tips, Warnings, and Safety ................. 7 3. Supporting ReferencesSupporting References ............8 Table of Figures Figure 1 –... -
Page 4: Introduction

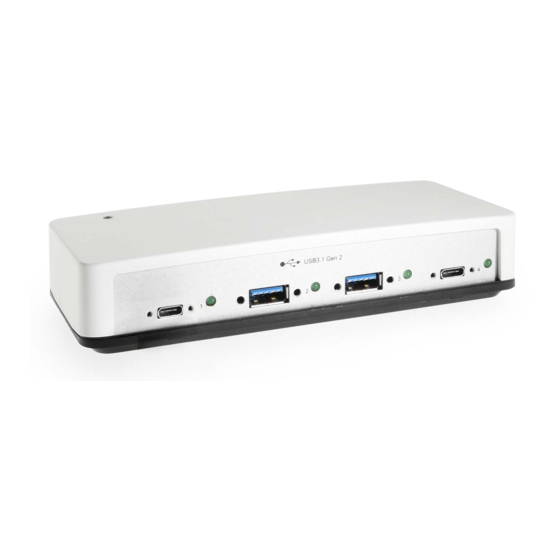

CG-4P31CHUB – Product Manual 1. Introduction The CG-4P31CHUB is a USB3.1 Plastic Hub that complies with the Universal Serial Bus (USB) Specifications Revision 3.1 Gen 2 and works up to 10Gbps. It provides 1 USB-C upstream port and 4 downstream facing ports with 2 USB-C and 2 USB-A connectors. It supports simultaneous operation of any combination of Super-Speed Plus (SS+), Super- Speed(SS), High-Speed(HS), Full-Speed(FS), and Low-Speed(LS) devices. -
Page 5: Connector Layout
CG-4P31CHUB – Product Manual 1.2 Connector Layout Figure 1 USB A Downstream Port USB C Ports 7 – 24V DC Input Provides 2 USB 3.1 Gen2 2 USB-C downstream ports Input DC power from its DC Type-A downstream ports can be used in combination... -
Page 6: I/O Hardware
CG-4P31CHUB – Product Manual Figure 2 1.4 I/O Hardware • Supports 1 USB-C Upstream Port Connector, 2 USB-C and 2 USB-A Downstream Port Connectors. • Supports a DC Jack and 2-pin Terminal Block Connectors for external power input from AC adapter. -
Page 7: Notes, Tips, Warnings, And Safety
CG-4P31CHUB – Product Manual 2. Notes, Tips, Warnings, and Safety Note For Systems with USB3.1 Gen 1, Gen 2, USB2.0, or USB1.1 Ports Warning • Read the entire Product Manual before implementing this product for your application. This manual contains important information about electrical connections that must be followed for safe and proper operation. - Page 8 © 2017 Coolgear, Inc. All Rights Reserved. All products and accompanying digital documentation including images are the property and / or trademarks of Coolgear Inc. Coolgear Inc. are continuously improving upon its products. Product specifications are subject to change without notice.
