- Page 1 10 Port USB 3.2 Gen 1 Industrial Wide Temperature Range Hub Model Number: CG-G17PHHT Product Manual Coolgear, Inc. Version: 1 Date: 2023-12-06...
- Page 2 First Release 1. Introduction Thank you for purchasing the Coolgear 10 Port USB 3.2 Gen 1 Industrial Wide Temperature Range Hub, a cutting-edge solution designed to thrive in extreme environments. Engineered to withstand temperatures ranging from -40 to 85 degrees Celsius, this industrial-grade USB hub ensures uninterrupted connectivity in the harshest conditions.

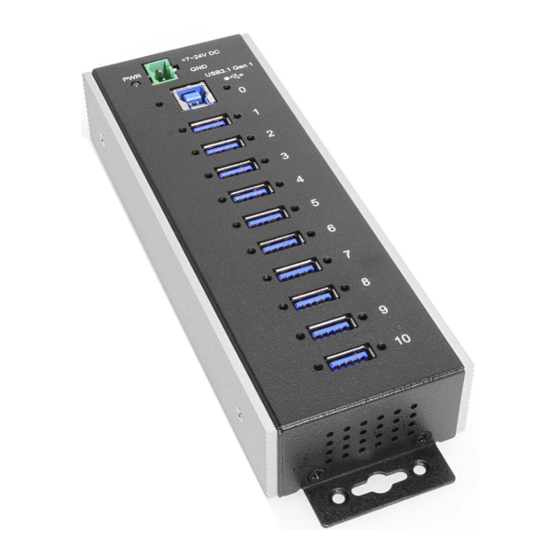

- Page 3 2. Connector Layout Downstream Device Ports 10x USB 3.2 Gen 1 Female Type-A Screw-Locking Surface Mounting Bracket Fixed Non-Removable Power Connector 2-Pin Terminal Block Upstream Host Port USB 3.2 Gen 1 Female Type-B Screw-Locking Heat Sink Removable Need help? Visit: coolgear.com/support...
- Page 4 3.1 Surface Mounting Mount your hub where needed via the integrated surface mounting flanges. *Screws for surface mounting not included 3.2 DIN-Rail Mounting Attach DIN-Rail clips with the included screws. 2. Clip hub onto DIN-Rail. Need help? Visit: coolgear.com/support...
- Page 5 Technical Support When you reach out to Coolgear support, you’ll find yourself in the hands of a solution-oriented and knowledgeable expert ready to answer whatever question you throw at them. If you ever need help with your product, visit coolgear.com/support for support tickets, downloads, and other support resources.
- Page 6 (iv) normal wear and tear; (v) damage to or loss of repaired or replaced Products during shipping by Coolgear except when such damage or loss is caused by poor or inadequate packaging by Coolgear; or (vi) Products purchased outside the United States.
