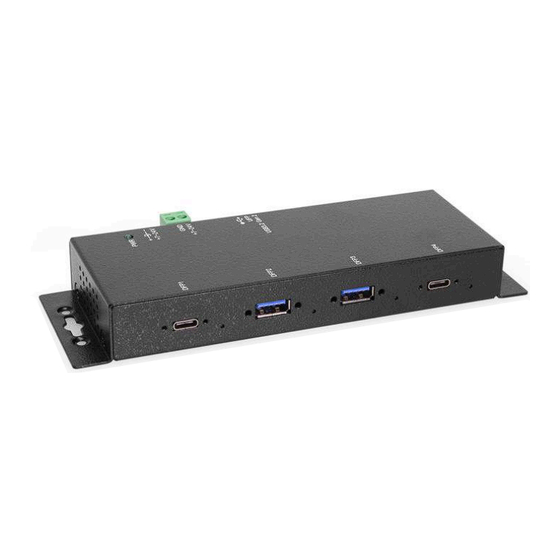

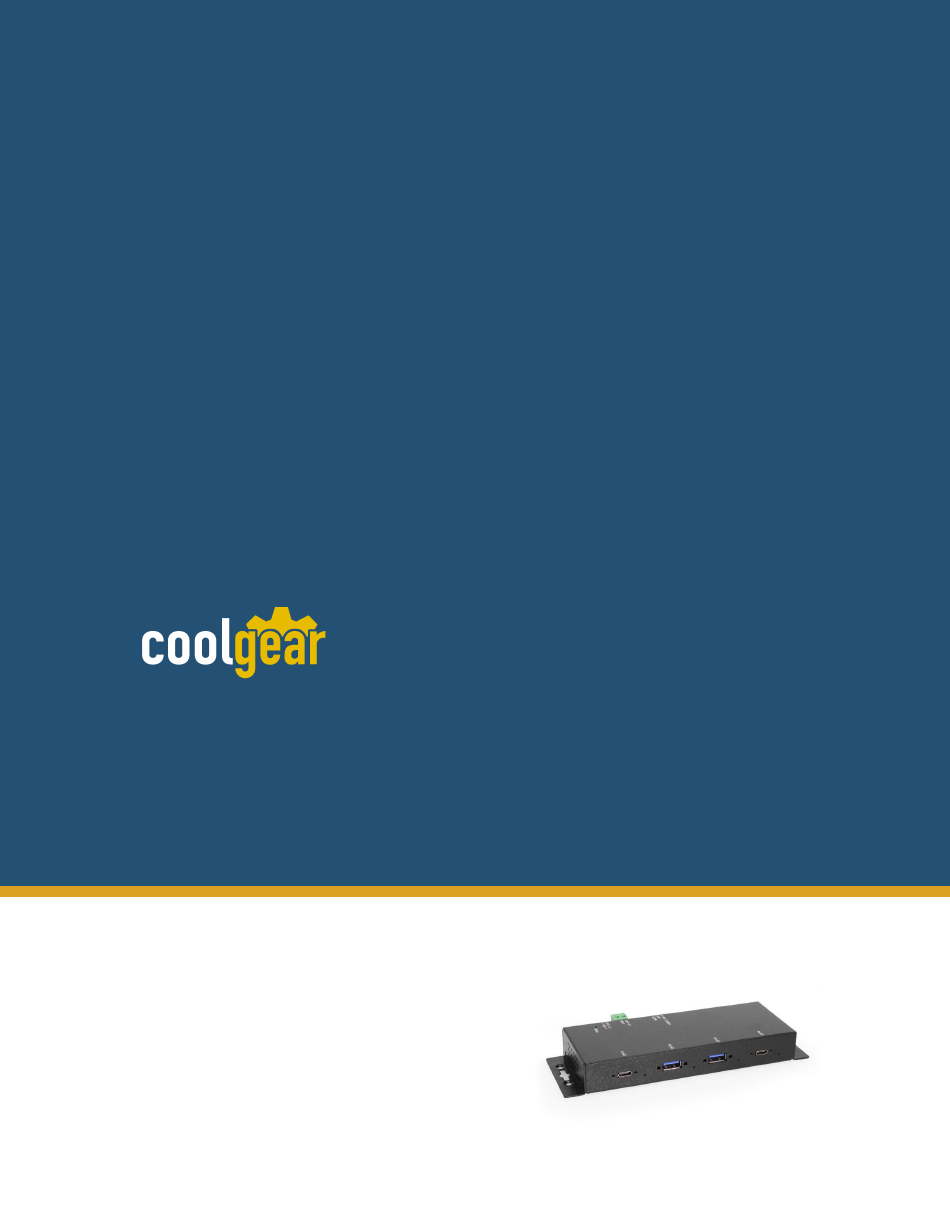

- Page 1 4-Port USB3.2 Gen 2 Type-C Metal Hub Model Number: CG-4P31CHUB-M Installation Guide Coolgear, Inc. Version: 1.0 Date: 04/17/2024...
-
Page 2: Connector Layout
First Release 1. Introduction Thank you for purchasing Coolgear’s 4-Port USB3.2 Gen 2 Type-C Metal Hub. It provides an ideal solution to expand 4 USB3.2 Gen 2 ports (2 USB-C and 2 USB-A connectors) from one single USB3.2 host port. It provides a self power input (+7~24V DC from either the DC jack or the 2-pin Terminal Blocks) to provide enough power for USB3.2 downstream facing ports. - Page 3 +7V to 24V DC. Warning!! Please make sure the polarity of the input power should be correctly match the terminal block pins Need help? Visit: coolgear.com/support...
-
Page 4: Hardware Installation
Double click Generic USB Hub, the message will show that this device is working properly. 5. Environmental Specifications Operating temp.: 0 to 70°C (32 to 158°F) Operating humidity: 5 to 95% RH Dimensions (LxWxH): 5.98”(L)x2.35”(W)x0.93”(H) (152.0 x 59.6 x 23.5 mm) Need help? Visit: coolgear.com/support... - Page 5 Technical Support When you reach out to Coolgear support, you’ll find yourself in the hands of a solution-oriented and knowledgeable expert ready to answer whatever question you throw at them. If you ever need help with your product, visit coolgear.com/support for support tickets, downloads, and other support resources.
- Page 6 (iv) normal wear and tear; (v) damage to or loss of repaired or replaced Products during shipping by Coolgear except when such damage or loss is caused by poor or inadequate packaging by Coolgear; or (vi) Products purchased outside the United States.
