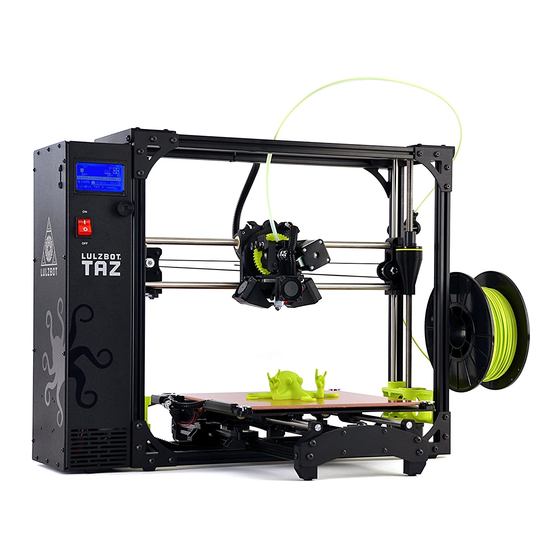

LulzBot TAZ 6 Operation Manual

Desktop 3d printer

Hide thumbs Also See for TAZ 6:

All instructions in this tutorial are for using and controlling a Lulzbot TAZ 6 3d printer

According to your Operating System, download the software from‐ https://www.lulzbot.com/cura

Refer to instructions sheet "Cura Tutorial" on how to install and use this software.

Lulzbot TAZ 6

Operations Tutorial

Table of Contents

Need help?

Do you have a question about the TAZ 6 and is the answer not in the manual?

Page 1 Lulzbot TAZ 6 Operations Tutorial All instructions in this tutorial are for using and controlling a Lulzbot TAZ 6 3d printer According to your Operating System, download the software from‐ https://www.lulzbot.com/cura Refer to instructions sheet “Cura Tutorial” on how to install and use this software. ...
Page 2 Filament Reel Graphical LCD SD Card Slot Lead Screw Control Knob Power Switch Extruder Tool Head Power Port (back) P.E.I. Print Surface Y‐Axis Assembly Idler Retainer Hinged Idler Drive Gear Lulzbot v2 Hot End Nozzle...
Page 3  Unloading: 1. Slide the Idler Retainer on the tool head upward to release the filament. 2. Set the graphical LCD to unload the filament. Use the Control Knob to do so. This makes the filament heat up so that it is easier to pull out. > > > > 3. Once the temperature reaches to about 200°C, pull the filament upwards to remove it. Target Temperature Current Temperature of the Nozzle  Loading: Cut the end of the new filament at an angle. Mount the new filament onto the filament holder and pass it through the filament tube guide and into the tool head. Locate the feed hole in the extruder body and feed the filament through the hole into hot end for printing. DO NOT TOUCH THE HOT END, IT MAY BURN YOUR SKIN! Feed hole ...
