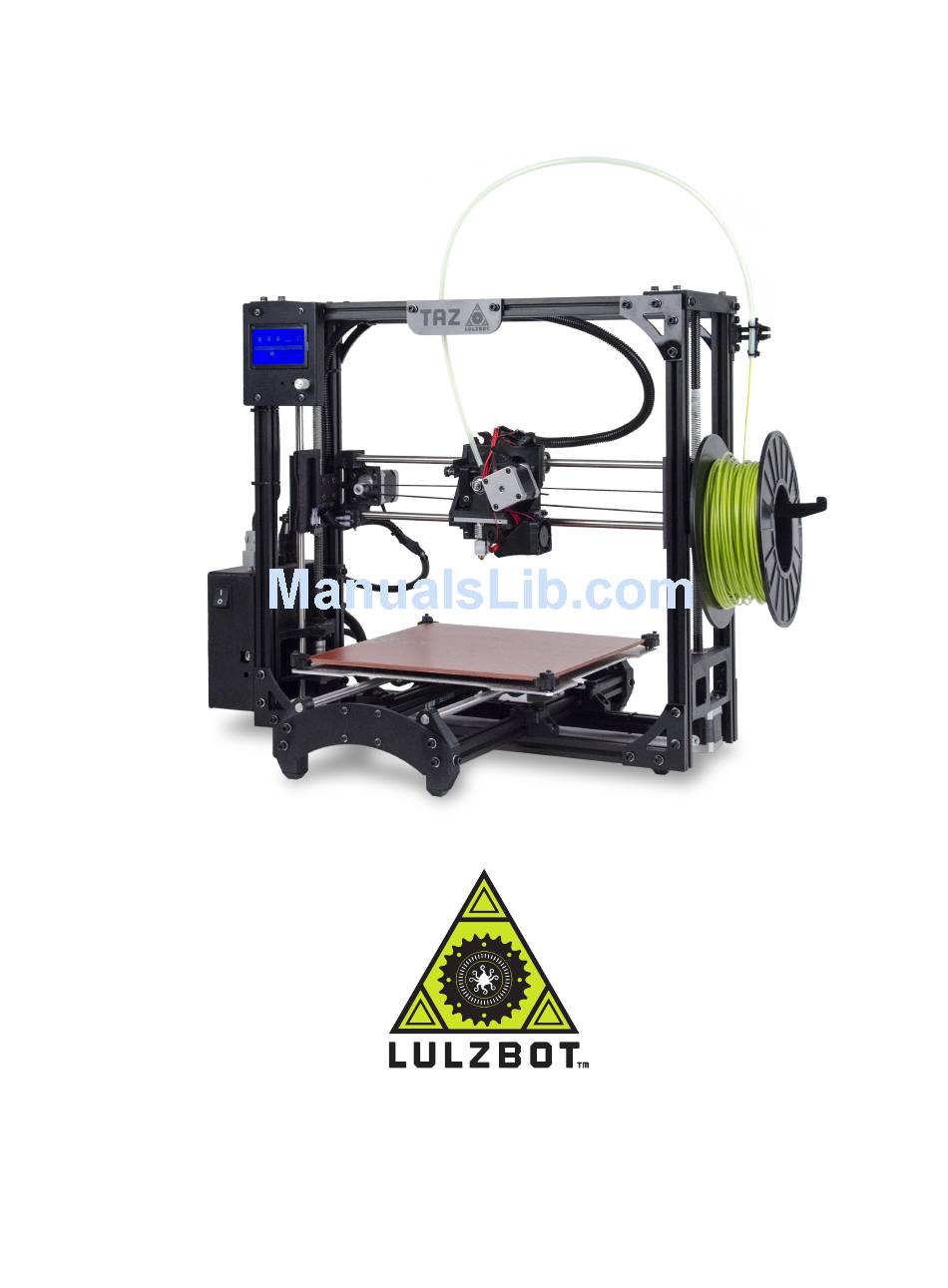

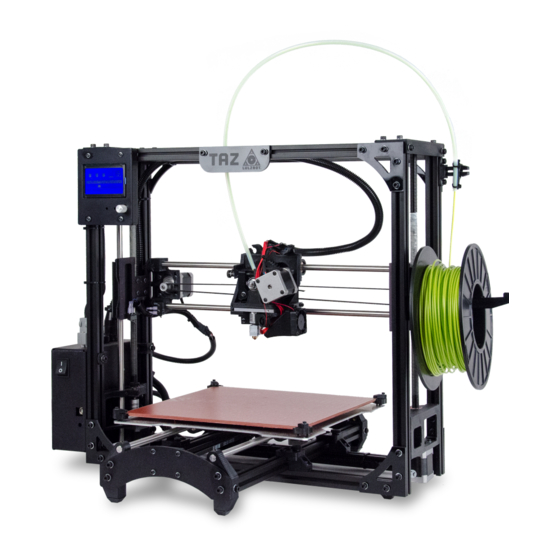

  • Page 1 LulzBot TAZ 5 User Manual Aleph Objects, Inc.
  • Page 2 Creative Commons Attribution 4.0 International Public License (CC BY-SA 4.0). Published by Aleph Objects, Inc., 626 W 66th Street, Loveland, Colorado, 80538 USA. For more information, call +1-970-377-1111 or go to www.LulzBot.com and www.AlephObjects.com. ISBN: 978-0-9893784-7-5 5.0-20160120...

  • Page 3: Table Of Contents

    Contents WARNINGS Safety Information · · · · · · · · Read Me First! · · · · · · · · · · · · · · · · viii · · · · · · · · · · · · · viii Hazards and Warnings 1 3D Printer Software...
  • Page 4 CONTENTS 1.24 Printrun · · · · · · · · · · · · · · · · 1.25 Using Printrun · · · · · · · · · · · · · · 1.26 CAD and 3D Modeling Software · · · · · · · · 1.27 Alternative Printer Host Software ·...
  • Page 5 · · 7.1 LulzBot · · · · · · · · · · · · · · · · · 7.2 Community · · · · · · · · · · · · · · · · 8 Warranty Information ·...
  • Page 6 List of Figures 1.1 Quick Print Settings · · · · · · · · · · · · · · 1.2 Options after selecting model · · · · · · · · · · · 1.3 Rotating your Model · · · · · · · · · · · · · · 1.4 Scaling your Model ·...
  • Page 7 List of Figures 2.10 Plater · · · · · · · · · · · · · · · · · · · 2.11 Minimug model. · · · · · · · · · · · · · · · 2.12 STL file loaded.
  • Page 8 List of Figures 2.43 Multiple extruder options - Printer Settings Tab (General). Note the two extruders defined in the left-hand pane. · · · 2.44 Multiple extruder options - Printer Settings Tab (Extruder). 2.45 Plater with multiple filament options. · · · · · · · · 2.46 Multiple extruder options - Print Settings Tab.

  • Page 9: Warnings

    WARNINGS Safety Information...

  • Page 10: Hazards And Warnings

    Read Me First! READ THIS MANUAL COMPLETELY BEFORE UNPACKING AND POWERING UP YOUR PRINTER. Hazards and Warnings Your LulzBot ® TAZ 3D printer has motorized and heated parts. Always be aware of possible hazards when the printer is operational. Electric Shock Hazard Never open the electronics case when the printer is powered on.

  • Page 11: Support

    ® desktop 3D printer. However any modifications or attempted repairs that cause damage are not covered under the Warranty. Questions? Contact Technical Support by emailing support@lulzbot.com, or by calling +1-970- 377-1111. Federal Communications Commission Statement Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 12 WARNING! FCC Warning: Changes or modifications not approved by the party responsible for compliance could void the users authority to operate the equipment.

  • Page 13: Printer Software

    3D Printer Software...

  • Page 14: Software Overview

    Aleph Objects, Inc., the maker of the LulzBot TAZ 3D printer, completely supports Free/Libre software and hardware. Along with the LulzBot TAZ 3D printer being a Free/Libre hardware design, has been tested to work with 100% Free/Libre software. Our source code and design files are hosted on our development server found at http://devel.lulzbot.com.

  • Page 15: Installing Drivers

    LulzBot.com/support/downloads. You will also find instructions there for installing each program onto your PC. You can also find downloads specific to the LulzBot TAZ 3D printer on the LulzBot TAZ product page. 1.3 Installing Drivers Linux and Mac OSX users will not need to install a driver to communicate with the LulzBot TAZ 3D printer.
  • Page 16 • Select LulzBot ® TAZ 4 or 5, then select Next. • Select Stock TAZ 5 (PEI and V2). Press Next. • Choose the correct nozzle size for your machine. Your TAZ 5 comes with a 0.5mm nozzle standard. • Select finish.

  • Page 17: Quick Print Settings

    1.5. QUICK PRINT SETTINGS 1.5 Quick Print Settings Figure 1.1: Quick Print Settings After setting up Cura for the first time, you will be shown the main interface screen. (Fig. 1.1, page 15): Selecting a Quick Print Profile The print quality settings can be found in the top left-hand corner of the window.

  • Page 18: Material Selection

    The TAZ ships with a 1 meter sample of ABS, that should be used in your first print. Printing Support Material The LulzBot ® TAZ 3D printer is able to print models that have angles and overhangs, even without support material. This will depend on the overhang distance and angle of your particular model file.

  • Page 19: Options After Selecting Model

    1.5. QUICK PRINT SETTINGS Model Orientation Move your model to change where it is printed on the build plate. Do this by left clicking on the model and dragging it to the desired location. The black outlined corner of the 3D print bed view represents the front left hand corner of the build plate on your printer.

  • Page 20: Rotating Your Model

    3D Printer Software Figure 1.3: Rotating your Model Lay Flat The Lay Flat button will ensure that the flat portion of your print is securely attached to the bed. It is highly recommended to use this option after rotating your model in the Z direction, as it will help prevent adhesion issues during the print.

  • Page 21: View Options

    1.6. VIEW OPTIONS Figure 1.4: Scaling your Model 1.6 View Options Different modes allow you to view your model in a variety of ways. This can be helpful for spotting issues before the print even starts. Normal This is the standard view and shows the solid outer surfaces of the model. (Fig.

  • Page 22: View In Normal Mode

    3D Printer Software Figure 1.5: View in Normal Mode Overhang Overhang mode shows where your model may need support material. In Fig. 1.6, page 20 the red highlighted areas show overhangs and more severe angles and areas where support material is recommended. The overhang threshold can be defined in Expert Settings.

  • Page 23: View In Ghost

    1.6. VIEW OPTIONS Ghost Ghost view mode makes the model translucent to allow you to see what is behind it. Figure 1.7: View in Ghost Xray Xray is very similar to Ghost mode. It will allow you to see into objects, ensuring that inner details are correct.

  • Page 24: View In Layers

    3D Printer Software Layers To view the tool path of your print head and to ensure no skipped layers or gaps use this option. Use the slide bar on the right hand side of the window to move up and down through the tool path layers. Click the icon below it to view an individual layer at a time.

  • Page 25: Starting Your First Print

    1.7. STARTING YOUR FIRST PRINT Figure 1.11: Viewing Specific Layers 1.7 Starting Your First Print Once you have your model, profile, and filament loaded, it is time for your first print! Your TAZ 3D printer has the ability to print directly from a computer using the included USB cable, or directly from the SD card by using the Graphical LCD controller.

  • Page 26: Control Screen

    3D Printer Software Start Print Once at the desired printing temperature begin your print through your Graphical LCD controller by navigating to: Print From SD > Desired File. Printing from USB Cable Connect your 3D printer to a computer using a USB cable, power it on and select the Control button at the top of the 3D viewing window.
  • Page 27 1.7. STARTING YOUR FIRST PRINT Pausing Mid-Print You will notice after you click the print button through Cura, it will change to a pause button. When activated, it will pause your print and automatically move your print head away from your object. This will allow color changes or material changes mid print.

  • Page 28: Removing Your First Print

    3D Printer Software 1.8 Removing Your First Print After your first print has finished, you need to wait for the part to cool down. Your parts will be easier to remove if you allow your heated bed to cool down to optimal temperature. This will allow the plastic to contract, making it easier to remove.

  • Page 29: Basic Tab Options

    MANUALLY LOAD ONE IN. We recommend using our tested profiles that are available here: https://www.lulzbot.com/cura. You will want to choose the profile that matches your filament and quality needs. Once downloaded, you can load the file into Cura by selecting File > Open Profile.

  • Page 30: Differences In Layer Height

    3D Printer Software Figure 1.14: Differences in Layer Height Shell Thickness This defines the number of vertical walls that comprise the outside of your model. We recommend keeping this set to multiples of your nozzle width. Your TAZ 3D printer is equipped with a 0.5mm nozzle. Enable Retraction Retraction tells your printer to pull filament out of the hot end upon travel moves.
  • Page 31 1.10. BASIC TAB OPTIONS Fill Density This number is expressed as a percentage. 0% will give a completely hollow print, while 100% will give you a completely solid object. We have found that 20% to 40% fill density is functional for most prints. Perimeters Before Infill This option will toggle in what order the infill and perimeters are printed.

  • Page 32: Support Types

    3D Printer Software Touching Buildplate This causes the support material to build up between the heated bed and the object. The red example is Touching Buildplate. Everywhere This prints support material between the heated bed and object as well as between the object and itself.

  • Page 33: Advanced Tab Options

    1.11. ADVANCED TAB OPTIONS Raft Raft will generate a layer of material underneath your object. Raft was more often used before the addition of heated plates to increase surface area. Raft settings can be adjusted in the Expert Settings options. Filament Diameter The filament diameter setting is one of the more important settings.

  • Page 34: Retraction Distance

    3D Printer Software Retraction Distance Retraction Distance determines how much filament is pulled out of your hot end on travel moves and when changing direction. You will want to adjust this depending on temperature settings and filament type. Higher thermal retaining filaments such as PLA behave better with a longer retraction distance.

  • Page 35: Cutoff Example

    1.11. ADVANCED TAB OPTIONS Figure 1.16: Cutoff Example Dual Extrusion Overlap This will determine how far your Dual Extruders will overlap when laying down material. This will help adhesion between the two different colors or types of filament. This setting is only used when the printer is equipped with two hot ends and extruders.

  • Page 36: Plugins

    3D Printer Software compared to your inner and outer shells, you can have adhesion issues or globs of filament left behind from the print head. Outer Shell Speed This will be the outermost surface of the model. This is the most important speed setting, as it controls the speed of your print head on the visible layers.

  • Page 37: Start And End Gcode Settings

    1.13. START AND END GCODE SETTINGS Figure 1.17: View of Plugins Tweak at Z Make basic changes at specified Z heights. You can define the Z height or layer count at which you want to make a change. Then choose how you would like to change your settings.

  • Page 38: Expert Settings

    3D Printer Software to leave this as provided in the profiles at https://www.lulzbot.com/cura 1.14 Expert Settings Expert settings will give you more specific options for your retraction, skirt, active cooling, infill, support, brim, raft, and special settings. To gain access to this section you go to Expert > Open Full Settings or on your keyboard press Control + E.

  • Page 39: Skirt

    1.16. SKIRT Minimum Travel This sets the minimum travel distance of your print head in order to retract. If your print head is not moving this far during travel moves, it will not retract. Combing This option prevents your print head from traveling over holes in the X/Y plane when printing.

  • Page 40: Cool

    3D Printer Software Start Distance This will define the distance away from your model that the skirt will be created. Minimal Length This will define the minimum extruded line length for the skirt. This will over ride your line count, producing as many lines as required to reach the minimal length.

  • Page 41: Support

    1.18. SUPPORT 1.18 Support You define how your support material is generated here. You must have some form of support turned on in the basic settings in order for these settings to have an effect. Structure Type You can choose between a Grid or a Line pattern for your support material. The grid will be a checkerboard pattern in the X and Y direction.

  • Page 42: Black Magic

    3D Printer Software 1.19 Black Magic This section allows you to transform your model into a hollow shell, a single layer thick. Spiralize the Outer Contour This causes your Z axis to be constantly moving upward as printing your single outer wall shell. The results are no layer change lines, giving a much smoother surface.

  • Page 43: Extra Margin

    1.21. RAFT platform. The bottom surface of your printed part will not be as clean or as even when using this option. Raft is typically not required. Extra Margin This determines the distance around the outside of your object that the raft is created.

  • Page 44: Fix Horrible

    3D Printer Software print look worse. Surface Layers This will determine the number of layers that create the “platform” of your raft. If you have a wide line spacing, you may want to increase this number to ensure a solid platform. 1.22 Fix Horrible These are some of the more advanced and experimental options.

  • Page 45: Dual Extrusion

    MeshLab, FreeCAD or your preferred CAD program before attempting this option. 1.23 Dual Extrusion The LulzBot TAZ has the ability to add dual extrusion functionality with the Dual Extruder tool head add-on. We only recommend the Dual Extruder tool head for advanced users.
  • Page 46 You can revert the firmware back to the stock configuration for your ® LulzBot 3D printer by selecting Machine > Machine Settings > Change Tool Head. Doing so will overwrite any of your current firmware settings.

  • Page 47: First Dual Print

    After printing the squares, you will want to measure Top, Bottom, Left, and Right gap. Enter these numbers into our offset calculator found here: https://www.lulzbot.com/dual-extruder-calibration-calculator This will produce new offsets, that will need to be updated in the Machine Settings menu. Repeat as many times as desired to truly fine tune the offset.

  • Page 48: Before Merge

    3D Printer Software Rear Tool head. Then Right Click on whichever STL file you would like printed with the Front Tool head and select dual extrusion merge. You will now see a single model in two colors on the build plate. The red section will be printed with the front extruder, while the green section will be printed with the rear extruder.

  • Page 49: After Merge

    1.23. DUAL EXTRUSION Figure 1.20: After Merge Setting Dual Temps After your object has been merged as intended, you will need to set the individual temperatures for each print head. In order to switch between which hot end you are heating, you will need to manually enter T0 to set temps for the rear hot end, and T1 to set temps for the front hot end.

  • Page 50: Printrun

    SD card for printing out model designs. Installing Printrun Printrun contains several different applications that can be used to control the LulzBot TAZ 3D printer. It can be installed on Windows, Mac OSX and Linux based computers. Pronterface is the graphical user interface for Printrun.
  • Page 51 Debian|Ubuntu Recommended Installation • We recommend using the stand-alone Printrun option found at https://www.LulzBot.com/downloads. Once downloaded and ex- tracted, navigate to the extracted directory. Install the dependencies by issuing the following command in a terminal: sudo apt-get install python-serial python-wxgtk2.8 python-pyglet. Once the dependencies have been installed, run Pronterface by using the following command in a terminal: python pronterface.py.

  • Page 52: Using Printrun

    3D Printer Software python-libxml2 python-gobject python-pip avahi-daemon libavahi-compat-libdnssd1 followed by: install requirements.txt To install in a terminal issue the following command: sudo python setup.py install. Run Printrun by issuing the following command: python pronterface.py Fedora • Use this command to install Printrun from the official sources: sudo yum install printrun Archlinux •...
  • Page 53 1.25. USING PRINTRUN Printrun is used to control the printer from a computer. It is divided into 4 main parts: The buttons over the top are used to connect to the printer, load files and start & stop prints. The movement controls are on the left hand side, with the G-code preview window in the center and the Log window and Terminal command entry box on the right hand side (Figure 1.22, page 50).

  • Page 54: Printrun Functions

    3D Printer Software Figure 1.23: Printrun Functions Movement Figure 1.24: Movement Controls...
  • Page 55 1.25. USING PRINTRUN Motors off Your 3D printer can be moved on all three axes independently. If you would like to do so by hand, use the Motors off button to unlock all the stepper motors. Once unlocked they can be moved by hand. Keep in mind that there is no positional feedback, so if you move an axis you will need to re-home in order to re-establish the hot end’s position.

  • Page 56: Cad And 3D Modeling Software

    Z axis down, by the selected units. 1.26 CAD and 3D Modeling Software LulzBot is not distributing a CAD or 3D modeling software package. How- ever, multiple free/libre software packages are available. Other common non-free CAD and 3D modeling software are also capable of exporting the required .STL files.

  • Page 57: Alternative Printer Host Software

    1.27. ALTERNATIVE PRINTER HOST SOFTWARE or no programming experience to learn. Blender Website: http://blender.org The most widely used free/libre 3D modeling software, Blender is well documented with tutorials available on the Blender.org website as well as found online. Shapesmith Website: http://shapesmith.net Shapesmith is a web-based 3D modeling software.
  • Page 58 3D Printer Software MatterControl is another printer host that currently runs on Windows and Apple computers. It features 2D and 3D model viewing, a print queue, and print file organization and searching.

  • Page 59: Slic3R

    Slic3r...

  • Page 60: Introduction

    This portion of the manual is derived from the complete Slic3r manual. It has been customized for TAZ users. The original unabridged version can be found at manual.slic3r.org. Due to the introduction of Cura LulzBot ™ Edition, the recommended printer host and slicer, this abriged Slic3r manual may not be current.

  • Page 61: Getting Slic3R

    2.2. GETTING SLIC3R 2.2 Getting Slic3r Slic3r is Free Software, and is licensed under the GNU Affero General Public License, version 3. Downloading From LulzBot.com The Slic3r version that has been tested for the TAZ printer downloaded from LulzBot.com downloads page: https://www.lulzbot.com/Slic3r.

  • Page 62: First Print

    Up-to-date instructions for compiling and running from source can be found on the Slic3r wiki. 2.3 First Print Calibration Your LulzBot ™ TAZ 3D printer was calibrated at the factory prior to packing. TAZ users do not need to calibrate their printers.
  • Page 63 2.3. FIRST PRINT ™ If you are just beginning with 3D printing or Slic3r, LulzBot recom- mends starting with our pre-set Slic3r profiles. You can find the TAZ Slic3r profiles at https://www.lulzbot.com/Slic3r. For information on loading and export Slic3r profiles please see page 115. Note that the pre-set profiles will only work correctly when Slic3r is in Expert mode.

  • Page 64: Configuration Wizard: Welcome Screen

    Slic3r Configuration Wizard Slic3r has two features to aid newcomers: the configuration wizard, and simple mode. Sometimes it is nice to have a helping hand when starting out with new software. The configuration wizard asks a series of questions and creates a new configuration for Slic3r.

  • Page 65: Configuration Wizard: Firmware Type

    2.3. FIRST PRINT 1. Firmware Type The gcode produced by Slic3r is tailored to particular types of firmware. The first step prompts for the firmware that the printer uses. For the TAZ printer select RepRap (Marlin/Sprinter) Figure 2.2: Configuration Wizard: Firmware Type...

  • Page 66: Configuration Wizard: Bed Size

    Slic3r 2. Bed Size This setting defines the maximum distance the extruder may travel along the X and Y axis. The dimensions for the TAZ print surface are X: 298 and Y: 275. Be sure to measure from the lower left corner where the extruder nozzle rests when are the home position to the maximum distance the nozzle can travel in each direction.

  • Page 67: Configuration Wizard: Nozzle Diameter

    2.3. FIRST PRINT 3. Nozzle Diameter The diameter of the hot-end nozzle is usually clearly displayed either in the description of the hot-end, or in the associated documentation, when the hot-end is purchased. The nozzle sizes available for the TAZ hot end are 0.35mm and 0.50mm.

  • Page 68: Configuration Wizard: Filament Diameter

    Slic3r 4. Filament Diameter For Slic3r to produce accurate results it must know as accurately as possible how much material is pushed through the extruder. Therefore it is vital to give it as precise a value as possible for the filament diameter. Although the filament used in FDM printers is sold as being either 3mm or 1.75mm this is only a general guide.

  • Page 69: Configuration Wizard: Extrusion Temperature

    2.3. FIRST PRINT 5. Extrusion Temperature The extrusion temperature will depend on the material, and most can operate over a range of temperatures. The supplier should provide guidance as to which temperatures are suitable. A very general rule of thumb is that PLA lies between 160°C and 230°C, and ABS lies between 220°C and 240°C.

  • Page 70: Configuration Wizard: Bed Temperature

    Slic3r 6. Bed Temperature If the printer has a heated bed then this parameter may be set. As with the extruder temperature, the value will depend on the material used. A rule of thumb is that PLA requires 35°C - 60°C and ABS requires 85°C. Note: One may choose to control the bed temperature manually from the printer controller.

  • Page 71: Configuration Wizard: End

    2.3. FIRST PRINT At this stage the wizard is complete and the basic configuration is defined. Figure 2.8: Configuration Wizard: End...

  • Page 72: The Important First Layer

    Slic3r The Important First Layer Before delving into producing the first print it is worthwhile taking a little detour to talk about the importance of getting the first layer right. As many have found through trial and error, if the first layer is not the best it can be then it can lead to complete failure, parts detaching, and warping.
  • Page 73 2.3. FIRST PRINT Fatter extrusion width. The more material touching the bed, the better the object will adhere to it, and this can be achieved by increasing the extrusion width of the first layer, either by a percentage or a fixed amount.
  • Page 74 Slic3r Working with Models Yet another step lies between now and the first print - a model has to be obtained and then sliced. Model Formats Slic3r accepts the following file types. • STereoLithography (STL) files can come from a wide variety of sources and are now a de facto standard in 3D printing.

  • Page 75: Shapesmith Online Cad Tool

    2.3. FIRST PRINT You may wish to view the files before slicing and there are many free applications available, one of which is Meshlab - a comprehensive tool for viewing and working with 3D files. Figure 2.9: Shapesmith online CAD tool. Working with Plater Slic3r has a tool, called Plater, which allows one or more models to be loaded and arranged before being sliced.

  • Page 76: Plater

    Slic3r Figure 2.10: Plater Once you have acquired a model, drag it onto the Plater window (or use the Add button below the file list) to load it into Slic3r. In the figure below, the traditional RepRap Minimug is loaded, and is viewed from above. The ring around the model is a skirt - a single perimeter, several millimeters away from the model, which is extruded first.

  • Page 77: Minimug Model

    2.3. FIRST PRINT Figure 2.11: Minimug model. Figure 2.12: STL file loaded. The model can be repositioned by dragging the representation of it on the left of the screen around the bed. Note that the dimensions of the bed should match your printer, as given during the initial configuration above.
  • Page 78 Slic3r Turn off “Auto-center Parts” in Preferences to position parts where desired. On the right-hand side is the list of currently loaded files. The buttons along the top of the file list allow you to arrange the models. • More/Less - Adjust how many copies should be printed. •...

  • Page 79: Simple Mode

    2.4. SIMPLE MODE Printing At this stage Slic3r has been configured and a model has been acquired, sliced and made ready for print. Now would be the time to fire up the printer and try it out. A variety of host software is available to send the G-code to the printer.

  • Page 80: Simple Mode: Print Settings

    Slic3r Figure 2.14: Simple Mode: Print Settings. General. Layer height is the thickness of each layer, and it is the step along the vertical axis taken before extruding a new layer atop the previous one. There are several factors that influence how high each layer should •...

  • Page 81: An Example Of Insufficient Top Layers

    2.4. SIMPLE MODE • Print speed - Shorter layers will result in smoother prints but each print will take longer, simply because the extruder must trace the pattern more times. A later goal will be to strike a balance between layer height, the speed of the printer, and the quality of the resulting print.

  • Page 82: Creating A Vase From A Solid Model

    Slic3r Another tip to consider: Setting the top solid layer to zero, and setting the infill also to zero, will result in a hollow receptacle, ideal for turning models into vases for example. Here manipulating the settings within Slic3r can be used to generate different kinds of prints, and not only be used to control surface accuracy.

  • Page 83: An Example Of An Object Printed With Support Material

    2.4. SIMPLE MODE unnecessarily complex for most use cases, and so most of the time the infill pattern is either rectilinear, line, or honeycomb. Honeycomb gives the most strength but is slower than both rectilinear or line. Support material. Printing a model from the bottom up, as with FDM, means that any significant overhangs will be printed in the air, and most likely droop or not print correctly.

  • Page 84: An Example Of Brim

    Slic3r blemishes. • Infill - As the infill is hidden this can be extruded a little faster. Take care though not to go too fast as higher speeds results in thinner extrusions, and this may affect how the extrusions bond. •...

  • Page 85: Simple Mode: Filament Settings

    2.4. SIMPLE MODE Filament Settings The Filament Settings will normally be used infrequently, for example on receipt of a new roll of filament. Figure 2.19: Simple Mode: Filament Settings. Filament. The Diameter setting will already have been filled from the value given during the wizard (see p.66), but can be updated here.

  • Page 86: Simple Mode: Printer Settings

    Slic3r Printer Settings The Printer Settings will be updated the least, unless Slic3r is going to be used for many printers, for example, in a 3D printer farm. Figure 2.20: Simple Mode: Printer Settings. Size and coordinates. The Bed size setting is taken from the wizard (see p.64) and is only used for previewing the model in the plater.
  • Page 87 2.4. SIMPLE MODE would sit the print in the middle. Should it be desired to print away from the center, because of a scratch in the glass perhaps, then this option should be used. Z offset can be used to compensate for an incorrectly calibrated Z end-stop.

  • Page 88: Expert Mode

    Slic3r Placeholders can be inserted in the G-code commands . For example [next_extruder] would return the index of the next extruder. The RepRap wiki is a good resource to learn about the variety of G- codes available: http://reprap.org/wiki/G-code. Note: Be sure to check that a given G-code is valid for your firmware. The codes specified in Start G-code are inserted at the beginning of the output file, directly after the temperature control commands for extruder and bed.

  • Page 89: Expert Mode Speed Options

    2.5. EXPERT MODE speed is a safe starting point, and it is not unrealistic to attain speeds of up to 250mm/s (if your printer can handle it). Adjusting the speed of perimeters, infill is available in simple mode, and the general rule is to have the perimeter go a little slower than the infill in order to reduce possible blemishes on the surface (infill can be faster because slight gaps will not matter as much).
  • Page 90 Slic3r Where indicated a value can be given in percentage. This is in relation to the preceding value, e.g. 50% solid infill would be half of the value defined for infill. A few general guidelines for each option: • Perimeters - In expert mode this parameter can be increased slightly as the External perimeters option can be used to ensure blemish free external faces.
  • Page 91 2.5. EXPERT MODE • First layer speed - As mentioned in subsection 2.3, the first layer is important to lay down correctly, and a slower pace helps enormously. Setting a value of 50%, or even less, can really help. Acceleration control is an advanced setting allowing acceleration settings for perimeters, infill, bridge, as well as a default setting, to be made.

  • Page 92: Infill Pattern Settings

    Slic3r Infill Patterns and Density There are several considerations when choosing an infill pattern: object strength, time and material, personal preference. It can be inferred that a more complex pattern will require more moves, and hence take more time and material. Figure 2.22: Infill pattern settings.

  • Page 93: Infill Pattern: Concentric (351.80Mm / 5M:30S)

    2.5. EXPERT MODE Figure 2.25: Infill pattern: Concentric (351.80mm / 5m:30s) Figure 2.26: Infill pattern: Honeycomb (362.73mm / 5m:39s) Figure 2.27: Infill pattern: Hilbert Curve (332.82mm / 5m:28s) Figure 2.28: Infill pattern: Archimedean Chords (333.66mm / 5m:27s)

  • Page 94: Infill Pattern: Octagram Spiral (318.63Mm / 5M:15S)

    Slic3r Figure 2.29: Infill pattern: Octagram Spiral (318.63mm / 5m:15s) Certain model types are more suited for a particular pattern, for exam- ple organic versus mechanical types. Figure 2.30 shows how a honeycomb fill may suit this mechanical part better because each hexagon bonds with the same underlying pattern each layer, forming a strong vertical structure.

  • Page 95: Infill Patterns At Varying Densities

    2.5. EXPERT MODE Figure 2.31: Infill patterns at varying densities. Left to Right: 20%,40%,60%,80%. Top to Bottom: Honeycomb, Concentric, Line, Rec- tilinear, Hilbert Curve, Archimedean Chords, Octagram Spiral...

  • Page 96: Infill Advanced Settings

    Slic3r Infill Optimization Slic3r contains several advanced infill settings which can help produce better extrusions. Figure 2.32: Infill advanced settings. • Infill every n layers - Will produce sparse vertical infill by skipping a set number of layers. This can be used to speed up print times where the missing infill is acceptable.

  • Page 97: Retraction Settings

    2.5. EXPERT MODE parts being unnecessarily solid. Adjust this option to balance these needs. • Only retract when crossing perimeters - Retracting, to prevent ooze, is unnecessary if the extruder remains within the boundaries of the model. Care should be taken if the print material oozes excessively, as not retracting may result in enough material loss to affect the quality of the subsequent extrusion.
  • Page 98 Slic3r • Length - The number of millimeters to retract. Note that the measurement is taken from the raw filament entering the extruder. A value of between 1 and 2mm is usually recommended. Bowden extruders may need up to 4 or 5mm due to the hysteresis introduced by the tube.

  • Page 99: Skirt Settings

    2.5. EXPERT MODE • Only retract when crossing perimeters (Infill) - Tells Slic3r to only retract if the nozzle will cross the threshold of the current island being extruded. Slight ooze within the walls of a part are not seen and can usually be accepted.
  • Page 100 Slic3r • Distance from object - The millimeters between the object and the skirt. The default of 6mm is usually sufficient. • Skirt height - The number of layers to lay down a skirt for. For ensuring the material is flowing smoothly, one layer is sufficient, however the skirt function can also be used to build walls around the object in case it should be protected from drafts.

  • Page 101: Cooling Strategy

    2.5. EXPERT MODE Figure 2.35: Cooling strategy. Figure 2.35 shows the strategy adopted by Slic3r. Reading from right to left, when the minimum fan threshold (#2) is reached the fan is turned on. This increases in intensity as the layer time decreases. The print speed remains constant until the estimated print time drops below a certain threshold (#1), this is when the print speed is reduced until it reaches it’s minimum value.

  • Page 102: Cooling Advanced Settings

    Slic3r A duct may help in guiding the flow correctly, and there are several designs available online, for a wide variety of printers. Slowing Down Slic3r can tell the printer to slow down if the estimated layer time is above a certain threshold.

  • Page 103: Support Material

    2.5. EXPERT MODE • Fan speed - Determines the minimum and maximum speeds - useful for fans that run too fast by default. • Bridges fan speed - As the material stretches over wide gaps, it makes sense to try and cool it as much as possible, therefore a full fan speed is recommended.

  • Page 104: Support Structure Options

    Slic3r Figure 2.37: Support structure options. The first thing to do is activate the support material option by checking the Generate support material box. Providing a value of zero to the Overhang threshold parameter tells Slic3r to detect places to provide support automatically, otherwise the degrees given will be used.

  • Page 105: Minimug Model, Tilted

    2.5. EXPERT MODE Figure 2.38: Minimug model, tilted 45°. As with infill, there are several patterns available for the support structure. Figure 2.39: Support infill pattern: Rectilinear Figure 2.40: Support infill pattern: Rectilinear Grid...

  • Page 106: Support Infill Pattern: Honeycomb

    Slic3r Figure 2.41: Support infill pattern: Honeycomb Pattern Spacing determines the distance between support lines, and is akin to infill density apart from being defined only in mm. If changing this attribute take into account the width of the support extrusion and the amount of support material that will adhere to the object.

  • Page 107: Multiple Extruder Options - Printer Settings Tab (General). Note The Two Extruders Defined In The Left-Hand Pane

    2.5. EXPERT MODE Configuring Extruders In the Printer Settings tab there is an Extruders option, under Capabilities, which allows the number of extruders to be defined. In- crementing this value will dynamically add another extruder definition to the left-hand pane. Figure 2.43: Multiple extruder options - Printer Settings Tab (General).

  • Page 108: Plater With Multiple Filament Options

    Slic3r The Extruder offset is to be used should the firmware not handle the displacement of each additional nozzle. Your firmware documentation should tell you if this is the case. Each additional extruder is given an offset in relation to the first one. If the firmware does handle this then all offsets can remain at 0,0.

  • Page 109: Multiple Extruder Options - Print Settings Tab

    2.5. EXPERT MODE Settings tab gives the ability to assign an extruder to each extrusion type. Figure 2.46: Multiple extruder options - Print Settings Tab. Configuring Tool Changes The Custom G-code subsection of the Printer Settings tab has an option for inserting G-code between tool changes.

  • Page 110: Multiple Extruder Options - Tool Change G-Code

    Slic3r Figure 2.47: Multiple extruder options - Tool change G-code. Printing Multi-material Objects If a multi-material AMF file already exists, because the CAD program can export such a format, then this can be loaded into Slic3r in the usual way. The mapping between object materials and extruders is sequential, i.e.

  • Page 111: Extrusion Widths Options

    2.5. EXPERT MODE Extrusion Width Figure 2.48: Extrusion widths options. One reason for modifying the extrusion width has already been discussed: increasing first layer extrusion width in order to improve bed adhesion (see p.71). There are some further cases where it may be beneficial to modify extrusion widths.

  • Page 112: Example Model Highlighting Use Case For Variable Layer Heights

    Slic3r It is important to remember that if the extrusion width is expressed as a percentage then this is computed from the Layer height property, and not the Default extrusion width setting. Variable Layer Height Slic3r gives the ability to adjust the layer height between arbitrary positions along the Z axis.

  • Page 113: Example With Normal Layer Height

    2.5. EXPERT MODE Figure 2.50: Example with normal layer height. The variable layer height options are available by double clicking on a part name in the Plater window. This will cause a pop-up window to be displayed which contains two tabs. The first gives some information about the model, as shown in fig.

  • Page 114: Variable Layer Height Options - Info

    Slic3r Figure 2.51: Variable layer height options - Info. It is worth noting the height of the model, as this will be useful when calculating the maximum Z height. The second tab (fig. 2.52) presents a table where each row defines a layer height for a particular range along the Z axis, given in millimeters.

  • Page 115: Variable Layer Height Options - Layers

    2.5. EXPERT MODE Figure 2.52: Variable layer height options - Layers. The resulting G-Code (fig. 2.53) shows a higher definition which should result in a higher quality print. Figure 2.53: Example with variable layer height.

  • Page 116: Example Print With Variable Layer Height

    Slic3r Fig. 2.54 shows the example model printed. The print on the left has 0.4mm layer height throughout, whereas the print on the right has the variable layer height. Figure 2.54: Example print with variable layer height. An additional feature of the variable layers height option is that by entering a zero for a range that part of the model will not be printed.

  • Page 117: Configuration Organization

    2.6. CONFIGURATION ORGANIZATION 2.6 Configuration Organization There are two ways in which to organize the configuration settings: export- ing and importing the configuration settings, and profiles. The former is available in both simple and expert mode, whereas profiles is only available in expert mode.

  • Page 118: Saving A Profile

    Slic3r Figure 2.56: Saving a profile. Profiles can be deleted by choosing the profile to delete and clicking the red delete button next to the save button. Figure 2.57: Deleting a profile.

  • Page 119: Repairing Models

    2.7. REPAIRING MODELS 2.7 Repairing Models If the 3D mesh described in the model contains holes, or edges are misaligned (known as being non-manifold), then Slic3r may have problems working on it. Slic3r will attempt to fix any problems it can, but some problems are out of its reach.

  • Page 120: Advanced Topics

    Slic3r • From the menu choose Meshes->Analyze->Evaluate & Repair mesh to bring up the repair options dialog. • From the options dialog choose the loaded mesh, then perform each analysis be clicking the Analyze button by each problem type, or select Repetitive Repair at the bottom to perform all checks.

  • Page 121: The Clearance Cylinder Around An Extruder

    2.8. ADVANCED TOPICS parts will not cause problems. The Extruder clearance parameters help Slic3r detect potential collisions: • Radius - The clearance that should be given around the extruder. Take care if the extruder is not mounted centrally - take the largest safe value, generally 80mm.
  • Page 122 Slic3r Command Line Usage Slic3r can also be used from the command line instead of via the GUI, as part of a script, or as part of another tool, such as Printrun All options found in the GUI can be used from the command line in the form of switch parameters.
  • Page 123 2.8. ADVANCED TOPICS --gcode-flavor The type of G-code to generate (reprap/teacup/makerbot/sailfish/mach3/no-extrusion, default: reprap) --use-relative-e-distances Enable this to get relative E values --gcode-arcs Use G2/G3 commands for native arcs (experimental, not supported by all firmwares) --g0 Use G0 commands for retraction (experimental, not supported by all firmwares) --gcode-comments Make G-code verbose by adding comments (default: no)
  • Page 124 Slic3r have been applied. (mm/s^2, set zero to disable; default: 130) Accuracy options: --layer-height Layer height in mm (default: 0.4) --first-layer-height Layer height for first layer (mm or %, default: 0.35) --infill-every-layers Infill every N layers (default: 1) --solid-infill-every-layers Force a solid layer every N layers (default: 0) Print options: --perimeters Number of perimeters/horizontal skins (range: 0+, default: 3)
  • Page 125 2.8. ADVANCED TOPICS --raft-layers Number of layers to raise the printed objects by (range: 0+, default: 0) --support-material-enforce-layers Enforce support material on the specified number of layers from bottom, regardless of --support-material and threshold (0+, default: 0) Retraction options: --retract-length Length of retraction in mm when pausing extrusion (default: 1) --retract-speed Speed for retraction in mm/s (default: 30)
  • Page 126 Slic3r Sequential printing options: --complete-objects When printing multiple objects and/or copies, complete each one before starting the next one; watch out for extruder collisions (default: no) --extruder-clearance-radius Radius in mm above which extruder won't collide with anything (default: 20) --extruder-clearance-height Maximum vertical extruder depth; i.e. vertical distance from extruder tip and carriage bottom (default: 20) Miscellaneous options: --notes...

  • Page 127: Post-Processing Script Option

    2.8. ADVANCED TOPICS Post-Processing Scripts There may be times when the G-Code generated by Slic3r has to be tweaked or modified after it has been created. For this reason there exists the ability to run arbitrary scripts as part of the final steps in the slicing process In the Output options subsection of the Print Settings tab lies the Post-processing scripts option.

  • Page 128: Example Post-Processing Script To Print Each Line To Output

    Slic3r #!/usr/bin/perl -i use strict; use warnings; while (<>) { # modify $_ here before printing print; Figure 2.63: Example post-processing script to print each line to output.

  • Page 129: Extrusion Width

    2.8. ADVANCED TOPICS Understanding extrusion width Two main questions affect Slic3r’s work: • How distant should extrusion paths be positioned in order to get a good continuous finish? • How much material must be extruded along such paths? If two adjacent paths are too close (or too much material is extruded), they’ll overlap.

  • Page 130: Bridging Filament Shape

    Slic3r Figure 2.65: Bridging filament shape. If you reduce the material flow you’ll get smaller circles to some extent, until the plastic viscosity decides it’s time to break your bridge because of too much tension. If, on the contrary, you extrude too much material, the shape of the extruded filament won’t change (still equal to nozzle diameter) but you’ll get a loose bridge.

  • Page 131: Extrusion Shape

    2.8. ADVANCED TOPICS Figure 2.66: Extrusion shape. When target extrusion width is thinner than layer height the shape is unpredictable so we just use the same rectangular formula but discourage usage of such thin extrusion values. The above formula provides a function that correlates the target extru- sion width with the amount of material to extrude per distance unit: E = f(extrusion width layer_height) Spacing paths...

  • Page 132: Sane Defaults

    Slic3r Ideally, we would want to fill all of that yellow area by placing the extrusions closed to each other. However, it’s very unlikely that the second extrusion will fill the space below the previous one, so there would still be a little void.

  • Page 133: Troubleshooting

    3D printer. Instructions on firmware flashing can be found at: https://www.LulzBot.com/Cura. Horizontal dimensions The usual issue is about holes being too small. This usually only affects holes on the horizontal plane (XY). There are several reasons for this. Let’s...

  • Page 134: Holes Made Through Polygonal Segments

    Slic3r radius shorter. A compensation algorithm was proposed by Adrian Bowyer, and it was implemented in Slic3r some time ago but many users complained about holes being too large – it was removed thereafter since smaller holes are better than larger holes since they can be drilled. Curves are approximated by polygons STL files only contain meshes composed by flat triangles, so its planar sections can only contain polygonal shapes.

  • Page 135: Variable Filament Diameter Changing Layer Stacking

    2.9. TROUBLESHOOTING Z wobble Even if the dimensional accuracy of a single layer was correct, several stacked layers might make the hole smaller if they’re not exactly aligned. Z wobble caused by mechanical issues will reduce hole size to the internal envelope of the stacked layers: Figure 2.69: Z wobble changing layer stacking.
  • Page 136 Slic3r Backlash Backlash is a mechanical defect of one or more axes that basically reduces the amount of actual motion whenever a motor inverts its spinning direction. It’s generally caused by loose belts. On printers with a moving bed, its axis (usually Y) is more subject to backlash because of inertia.
  • Page 137 2.9. TROUBLESHOOTING however one point of particular interest for users of Slic3r is the wobble caused by motor steps not matching the pitch of the Z rods thread. This can be addressed by ensuring the Layer Height setting is a multiple of the full step length.

  • Page 138: Slic3R Support

    Slic3r 2.10 Slic3r Support Slic3r Support A variety of resources are available to provide support for Slic3r. Wiki and FAQ The wiki provides up-to-date documentation, and a FAQ sub- section which may help resolve any queries or issues. • https://github.com/alexrj/Slic3r/wiki/Documentation •...
  • Page 139 2.10. SLIC3R SUPPORT Issue Tracker If you find a bug in the software, then raise the issue in the project issue tracker. • github.com/alexrj/Slic3r/issues Please take the time to read through the existing issues to see whether the problem has already been submitted. Also make sure that the problem is a bug in the application;...

  • Page 141: Printing With The Graphic Lcd

    Printing with the Graphic LCD...

  • Page 142: Printing With The Graphic Lcd

    Printing with the Graphic LCD ™ The Graphic LCD allows you to print with the LulzBot TAZ 3D printer without needing to have a computer connected or using host software such as Cura. This will allow for more efficient space in the workspace and free up a computer for other tasks.

  • Page 143: Putting Print Files On The Sd Card

    3.3. PUTTING PRINT FILES ON THE SD CARD print with either the Graphic LCD, Cura, or Printrun, for the rest of the print use only that controller. When printing with the Graphic LCD, never try to connect through USB in the Cura host software; wait until the print is complete, and then connect in Cura.

  • Page 144: Printing With The Graphic Lcd

    Printing with the Graphic LCD 3.4 Printing With the Graphic LCD The Graphic LCD Status Screen The GLCD screen will turn on you power up your LulzBot ™ TAZ 3D printer. The start-up screen will display the Status screen (fig. 3.1, page 141).

  • Page 145: Main Menu

    3.4. PRINTING WITH THE GRAPHIC LCD Using the Selection Knob To navigate through the LCD menu use the selection knob by rotating to scroll through selections and pressing the knob to make a selection. From the main Status screen, press the knob to move into the menu screen (Figure 3.2, page 143).
  • Page 146 Configuration Settings ™ Out of the box, the LulzBot TAZ 3D printer is already calibrated for printing. However, the GLCD does allow tuning of the more advanced configuration settings.

  • Page 147: Maintaining Your 3D Printer

    Maintaining Your 3D Printer...

  • Page 148: Overview

    Maintaining Your 3D Printer 4.1 Overview ™ Little maintenance is required keep your LulzBot TAZ 3D printer running. Depending on your rate of use you will want to perform a quick check of your printer every 2 to 4 weeks. The following maintenance guidelines will keep your printer printing quality parts.

  • Page 149: Hobbed Bolt

    4.5. HOBBED BOLT 4.5 Hobbed Bolt Filament is pulled through the extruder by a hobbed bolt. After repeated use, the teeth of the hobbed bolt can become filled with plastic. Using the brush or pick from the printer kit, clean out the hobbed bolt teeth. If an extruder jam ever occurs, remove the plastic filament from the extruder and clean out the hobbed bolt.
  • Page 150 Maintaining Your 3D Printer the lid.

  • Page 151: Advanced Usage

    Advanced Usage...

  • Page 152: Intro

    5.1 Intro After you become familiar with printing using the default settings, a few advanced techniques may help in getting better and more consistent prints from the LulzBot ® TAZ 3D printer. Some of these instructions are items and materials not included with the TAZ. With any of these additional items or materials, follow safety and usage guidelines as instructed by the manufacturer.

  • Page 153: Using 1.75Mm Filament

    5.4 Using 1.75mm filament Your LulzBot TAZ 3D printer is set up to use 3mm plastic filament by default and may be capable of printing 1.75mm filament with no hardware modification. While many of our advanced users are able to do so, your results may vary.

  • Page 155: Hardware And Software Source Code

    Hardware and Software Source Code...
  • Page 156 ™ The LulzBot TAZ 3D printer is a free/libre hardware design. All of the source files are available at http://download.lulzbot.com/TAZ including: • The latest version of this document, with L T E X source code. • 3D models and print files for all of the printed parts in .stl, .gcode, and other original source files.
  • Page 157 3D Printer Support...

  • Page 158: Printer Support

    3D Printer Support 7.1 LulzBot For common technical support questions for your TAZ 3D printer please visit lulzbot.com/support. Also, visit forum.lulzbot.com for support and tips from the LulzBot ™ 3D printer community. If you have further questions, e-mail our support team at support@lulzbot.com.

  • Page 159: Warranty Information

    Warranty Information...

  • Page 160: Warranty

    Warranty Information 8.1 Warranty Warranty information for your LulzBot ™ TAZ 3D printer can be found at https://www.lulzbot.com/content/shipping-standard-warranty-and-return-polici Extended Warranty Optional extended warranty terms are available for purchase at https://LulzBot.com/catalog/extended-warranty.

  • Page 161: Contact Information

    Contact Information...

  • Page 162: Support

    Contact Information 9.1 Support Email: support@LulzBot.com Phone: +1-970-377-1111 x610 9.2 Sales Email: sales@LulzBot.com Phone: +1-970-377-1111 x600 9.3 Websites ™ Aleph Objects, Inc., the makers of LulzBot 3D Printers: www.AlephObjects.com LulzBot ™ 3D Printers and parts: www.LulzBot.com forum.LulzBot.com...

  • Page 163: Index

    Index Symbols bottle, 150 1.75mm filament, 151 Bottom Layer Speed, 33 Bottom Thickness, 28 Bridge, 128 ABS, 151 Bridging, 128 acetone, 147, 151 Brim, 16, 30, 40 Adhesion Type, 30 brim, 150 Advanced Options, 31 burns, viii advanced techniques, 150 bushings, 146 Airgap, 41 aluminum extrusions, 154...
  • Page 164 INDEX Custom Gcode, 35 Disable fan for first n layers, Cut Off Object, 32 Enable fan if print time is below t seconds, 101 Dimension Errors, 131 Fan speed, 100 download, 13, 59, 154 Keep fan always on, 101 drive rods, 146 Min print speed, 101 driver, 13 Slow down if layer print...
  • Page 165 INDEX gluestick, 151 Line Count, 37 GNU/Linux, 13, 54, 55 Line Spacing, 41 Graphical LCD controller, 23 Load Model, 16 grease, 146 lubricant, 146 hardware, 154 maintenance, 146 hazards, viii Marlin, 154 heater block, viii Material Selection, 16 Hexagon, 154 MatterControl, 55 hexagon, 154 Menu...
  • Page 166 INDEX Solid layers, 79 Paths, 129 Speed, 81, 88 Pause, 25 Acceleration control, 89 Pause at Z Height, 35 Bridges, 88 PEI, 150 External perimeters, 88 PEI surface, 146 First layer speed, 88 Plater, 73, 106 Gap fill, 88 plater, 47 Infill, 81, 88 Plugins, 34 Perimeters, 81, 88...
  • Page 167 INDEX Bed size, 64, 84 Sequential Printing, 118 Print center, 84 Setting Dual Temps, 47 Z offset, 85 Shapesmith, 55 Printing, 77 Shell Thickness, 28 printing, 24 simple mode, 77 Printing from SD, 23 Skirt, 37 Printing from USB, 24 skirt, 97 Printing Temperature, 29 Slic3r, 154...
  • Page 168 INDEX Tweak at Z, 35 Updating Firmware, 43 USB cable, 51 View Options, 19 warnings, viii warping, 150 warranty, 158 website, 136 Windows, 13, 49, 54, 55 wires, viii Xray, 21 Z hop, 37 Z Wobble, 134...

  • Page 169: Glossary

    3D model data, through the deposition of a material in accumulative layers. ABS Acrylonitrile butadiene styrene thermoplastic. Usually extrudes at 230C with the Budaschnozzle and 245C with the LulzBot Hexagon Hot End. Acetone A colorless, volatile, flammable liquid ketone, (CH3)2CO, used as a solvent for ABS.
  • Page 170 PTFE Polytetrafluoroethylene is a synthetic fluoropolymer used in the Bu- daschnozzle for it’s low coefficient of friction. This limits the Budaschnozzle top extrusion temperature to 250C. The LulzBot TAZ 5 does not use a hot end with a PTFE insert and can reach a 300°C extrusion temperatuere.
  • Page 171 GLOSSARY Spool Plastic filament coiled and stored on a plastic reel. Preferred over 1.75mm filament due to improved feeding and better mounting options. Thermistor A special type of resistor that changes resistance based on temperature. It is used to measure temperature on the nozzle and the heated bed.
  • Page 173 Colophon Created with 100% Free/Libre Software GNU/Linux T E X Memoir...

Table of Contents
