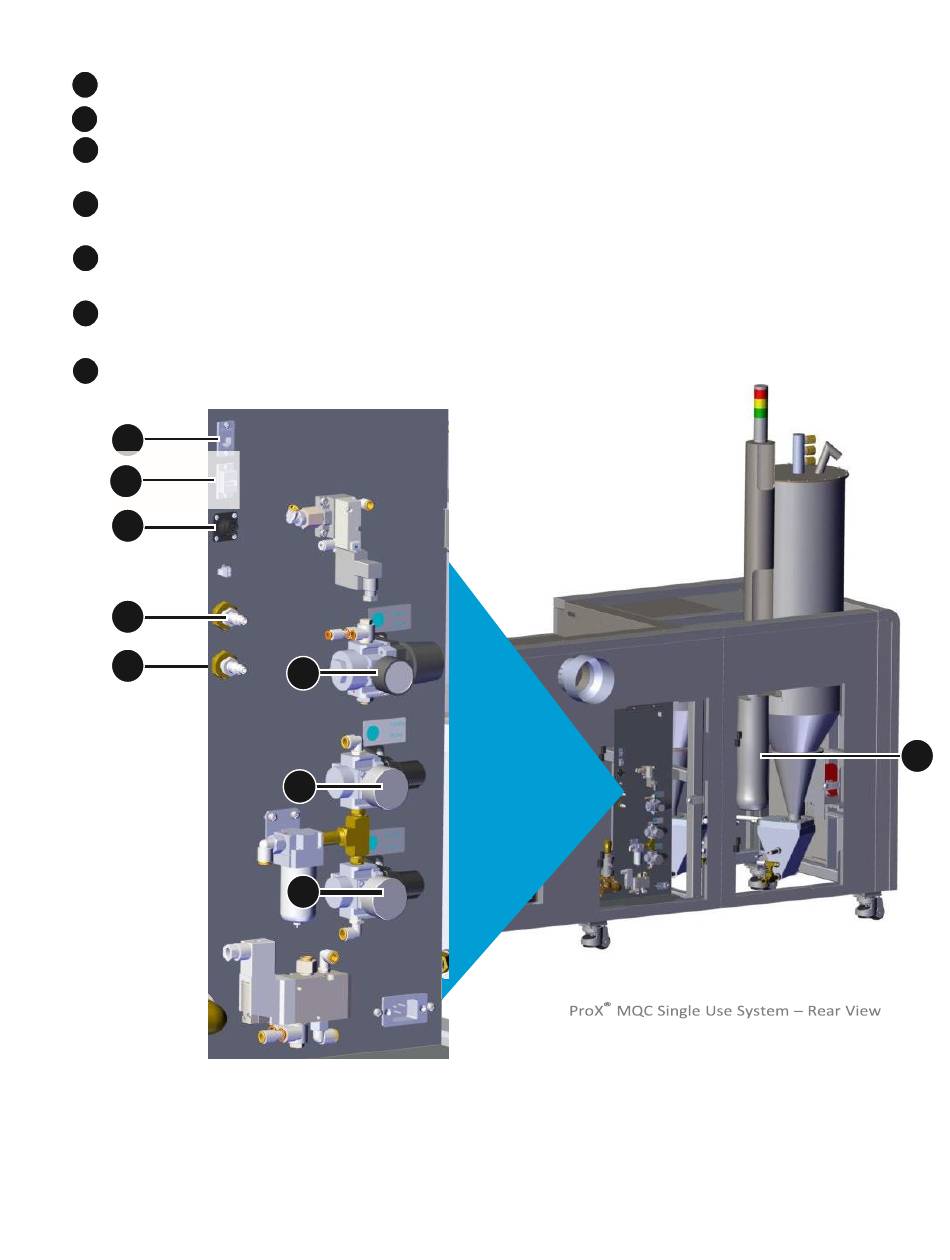

Breakout Area: The print cake is brought here using the Print Transfer Cart Assembly .
E
Reject Chute: Spent material (as determined by the user) is loaded into the reject chute .
F
Thermocouples: Two temperature gauges for the print cake are used to determine whether or not the print cake has
G
cooled sufficiently before breaking out the parts.
Nitrogen Blanket: This lid is placed on top of a filled print cake cylinder to control the cooldown of the print cake using
H
nitrogen .
Stowaway Area: Underneath the breakout area, there is a space which can be used to store part extraction cylinders
I
when they are not in use .
Sifter: The user removes the parts from the print cake in the breakout area and places the material for reuse into the
J
sifter .
SLS Single MQC System Operator Controls: User interface for operation of the SLS Single MQC System .
