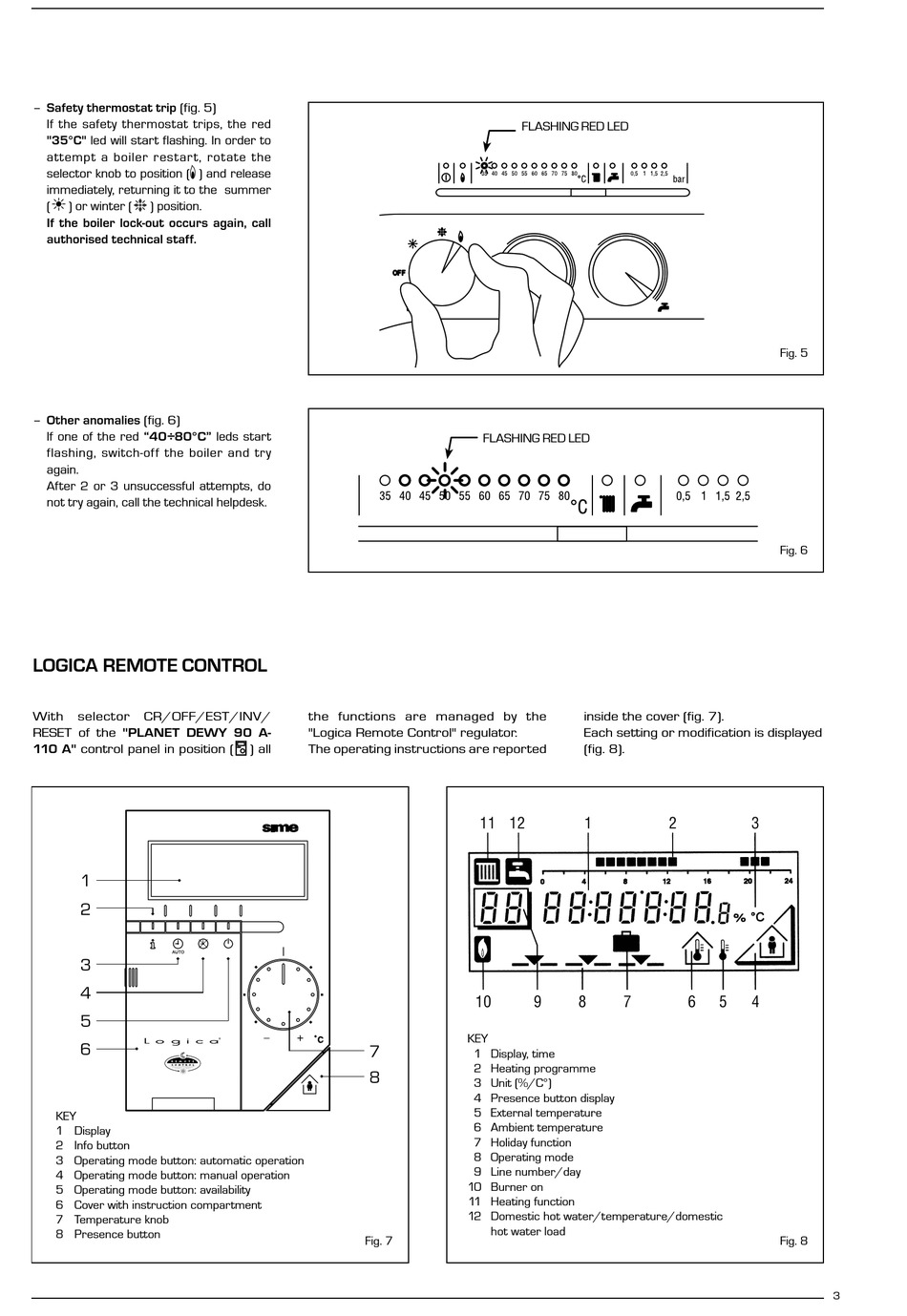

– Safety thermostat trip (fig. 5)
If the safety thermostat trips, the red
"35°C" led will start flashing. In order to
attempt a boiler restar t, rotate the
selector knob to position ( ) and release
immediately, returning it to the summer
( ) or winter ( ) position.
If the boiler lock-out occurs again, call
authorised technical staff.
– Other anomalies (fig. 6)
If one of the red "40÷80°C" leds start
flashing, switch-off the boiler and try
again.
After 2 or 3 unsuccessful attempts, do
not try again, call the technical helpdesk.

LOGICA REMOTE CONTROL

With selector CR/OFF/EST/INV/
RESET of the "PLANET DEWY 90 A-
110 A" control panel in position (
1
2
3
4
5
6
KEY
1 Display
2 Info button
3 Operating mode button: automatic operation
4 Operating mode button: manual operation
5 Operating mode button: availability
6 Cover with instruction compartment
7 Temperature knob
8 Presence button
the functions are managed by the
"Logica Remote Control" regulator.
) all The operating instructions are reported
7
8
Fig. 7
FLASHING RED LED
SPIA ROSSA INTERMITTENTE
SPIA ROSSA INTERMITTENTE
FLASHING RED LED
inside the cover (fig. 7).
Each setting or modification is displayed
(fig. 8).
KEY
1 Display, time
2 Heating programme
3 Unit (%/C°)
4 Presence button display
5 External temperature
6 Ambient temperature
7 Holiday function
8 Operating mode
9 Line number/day
10 Burner on
11 Heating function
12 Domestic hot water/temperature/domestic
hot water load
Fig. 5
Fig. 6
Fig. 8
